µMOD II Manual
µMOD II
Ring Modulator / Analog Logic
Manual Revision: 1.0

Advertisement

Table of Contents
loading

Summary of Contents for Intellijel mMOD II

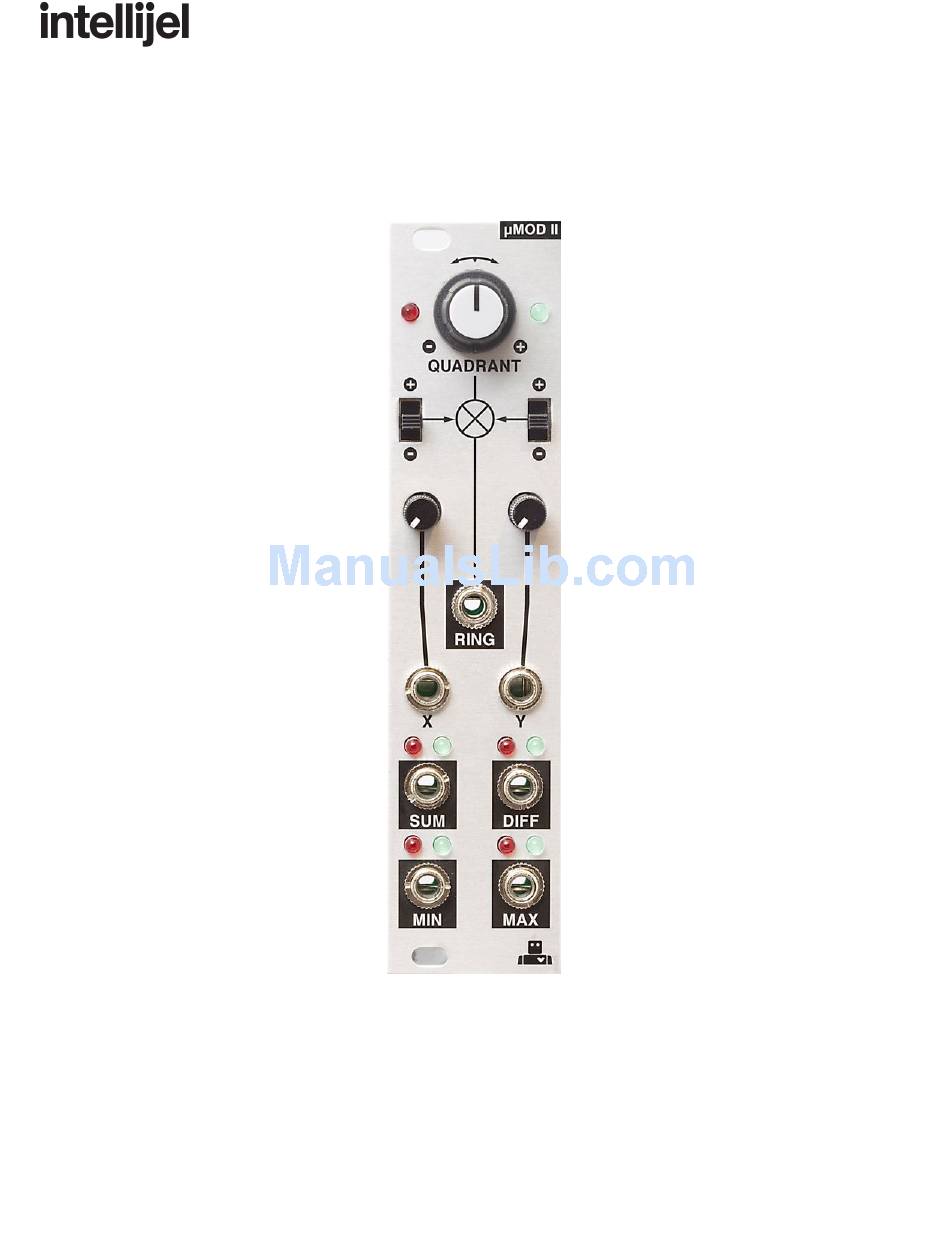

  • Page 1 µMOD II Manual µMOD II Ring Modulator / Analog Logic Manual Revision: 1.0...
  • Page 2: Table Of Contents

    µMOD II ​ M anual Table of Contents  Table of Contents Overview Installation Before Your Start Installing Your Module Front Panel Controls Inputs & Outputs Analog Logic Technical Specifications Page 1...
  • Page 3: Overview

    µMOD II ​ M anual Overview  The µMod II is a multi-function module designed for combining audio or CV signals in a variety of ways. Apart from a versatile ring modulator / four quadrant multiplier it also performs analog logic functions useful for generating new combinations of waveforms. The principle of operation is to take two signals, called X and Y, and produce a series of output signals that are derived from the sources using a variety of analog methods.
  • Page 4: Installation

    µMOD II ​ M anual Installation  Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. Before Your Start  Before installing a new module in your case you must ensure your case’s power supply has sufficient available capacity to power the module: ●...
  • Page 5 The other end of the cable, with a 16-pin connector, connects to the power bus board of your Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: Page 4...
  • Page 6 µMOD II ​ M anual If you are using another manufacturer’s power supply, check their documentation for instructions. Once connected, the cabling between the module and power supply should resemble the picture below: Before reconnecting power and turning on your modular system, double check that the ribbon cable is fully seated on both ends and that all the pins are correctly aligned.
  • Page 7: Front Panel

    µMOD II ​ M anual Front Panel    Controls  1. QUADRANT​ - The quadrant knob controls shifts the multiplication in to the positive or negative quadrants. For standard ring modulation, set the knob at the 12 o’clock position. Page 6...
  • Page 8: Inputs & Outputs

    µMOD II ​ M anual 2. X +/-​ - This three position switch controls the rectification of the X input. When in the middle position the input waveform is unaltered. When at + only the positive half of the waveform is passed through. When at – only the negative half is passed through. 3.
  • Page 9: Analog Logic

    µMOD II ​ M anual Analog Logic  The analog logic section of the module produces waveforms that are a combination of the X and Y inputs. This is well suited to creating complex CV from basic waveforms, or creating new interesting forms of audio.
  • Page 10: Technical Specifications

    µMOD II ​ M anual Technical Specifications  Width 6 hp Maximum Depth 35 mm Current Draw 41 mA @ +12V 41 mA @ -12V Page 9...
