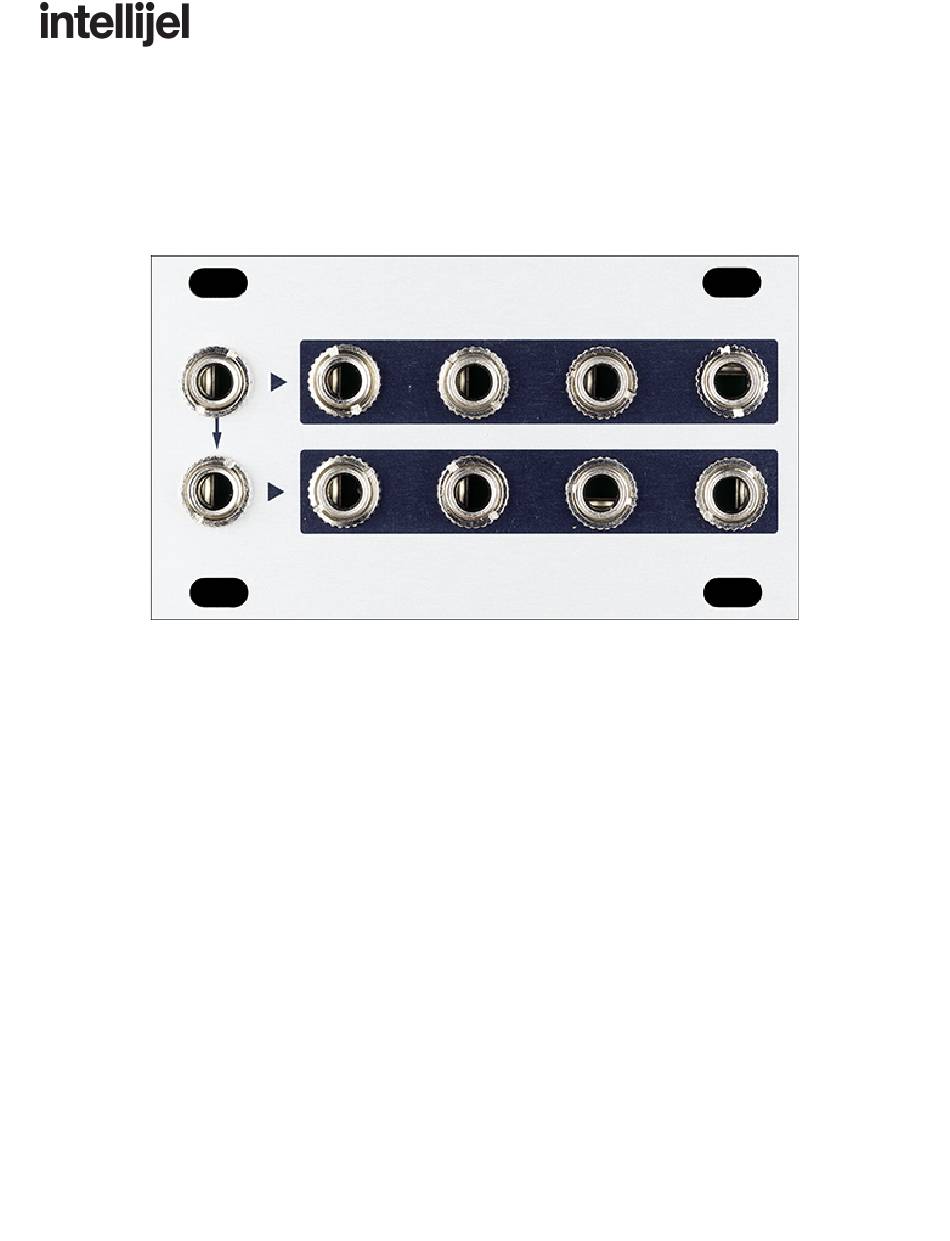

- Page 1 Buff Mult 1U Manual Buff Mult 1U Dual 1 x 4 Buffered Mult Manual Revision: 2018.09.13 ...
- Page 2 (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ...
-
Page 3: Installation
Before Your Start Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free ... -
Page 4: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ... - Page 5 Buff Mult 1U Manual Once connected, the cabling between the module and power supply should resemble the picture below: Before reconnecting power and turning on your modular system, double check that the ribbon cable is fully seated on ...
-
Page 6: Operation
Operation Buff Mult 1U is a dual 1 x 4 buffered signal multiplier. A signal multiplier takes an input signal and routes it to multiple outputs simultaneously. For example, you might want to route keyboard’s pitch CV to three different destinations: one to govern the pitch of your main ... -
Page 7: Technical Specifications
1V/Oct signal arriving at its input will be electrically and accurately duplicated across all its outputs. Buff Mult 1U is divided into two sections — upper and lower. Each section is its own 1 IN x 4 OUT buffered multiplier. Plug an audio or CV signal into the upper section’s left-most ...
