6.0 GETTING STARTED AND RUNNING THE Z3-DME-01

For these steps, you will need: a computer, a 1080p30/1080i video source, a Z3-DME-01, a 12V power
supply, an HDMI Cable, an HDMI to SDI Converter, a coaxial cable and at least one Ethernet cable.

6.1 Setting up the Video Source

(1) Select an HD source with HDMI non-HDCP output (in Z3's testing, the Brite-View BV-5005HD is used).
-Power on the HD Source
-Connect an HDMI cable from the HD Source to a monitor
-Set the HD Source to 1080p30 or 1080i output
-Select and begin playback of the content
If you see playback on the monitor, you've confirmed the source works. Now move the HDMI cable
from the monitor to "HDMI In" on the HDMI to SDI converter box.
(2) Connect the coaxial cable from "SDI Out" on the converter box to the Z3-DME-01 "SD/HDI Input" port
Figure 4
(see
(1) Connect SD/HD
SDI Input to
converter box

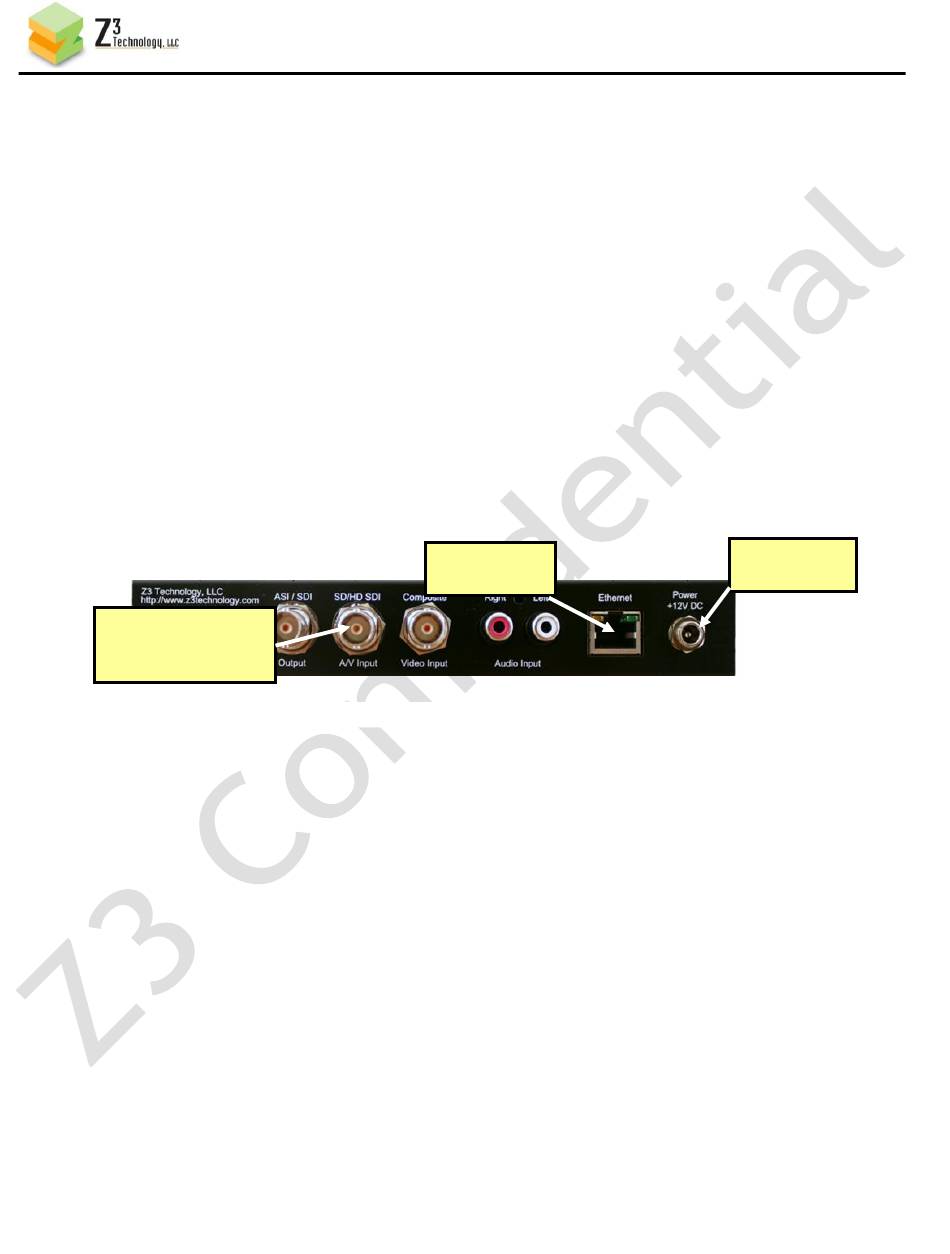

Figure 4 Z3-DME-01 Rear Panel Demo Connections

____________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702
).
CONFIDENTIAL
(2) Connect
Ethernet
9
DOC-USR-0018-09
(3) Connect
Power
