Figure 7 Zfinder With Z3-Dme-01 Selected; Figure 8 The Z3-Dme-01 Web Gui (Top Part) - Z3 Technology Z3-DME-01 User Instructions

(9) Click on the Z3-DME-01 entry in the window to select it. This will cause the "Edit Device," "Open
Device" and "Flash LEDs" boxes to activate:
(10) By clicking "Edit Device," you can change the Name, IP Address, Netmask and Gateway address of
the Z3-DME-01. You can also flash the LEDs on the Z3-DME-01 board by clicking "Flash LEDs" (this is
useful if there are multiple Z3-DME-01s connected). Click on "Open Device." An internet browser
window is opened (default browser used if Firefox) and the Web GUI appears:
____________________________________________________________________________________
Z3 Technology, LLC ♦ 100 N. 8th St. STE 250 ♦ Lincoln, NE 68508-1369 USA ♦ +1.402.323.0702
CONFIDENTIAL

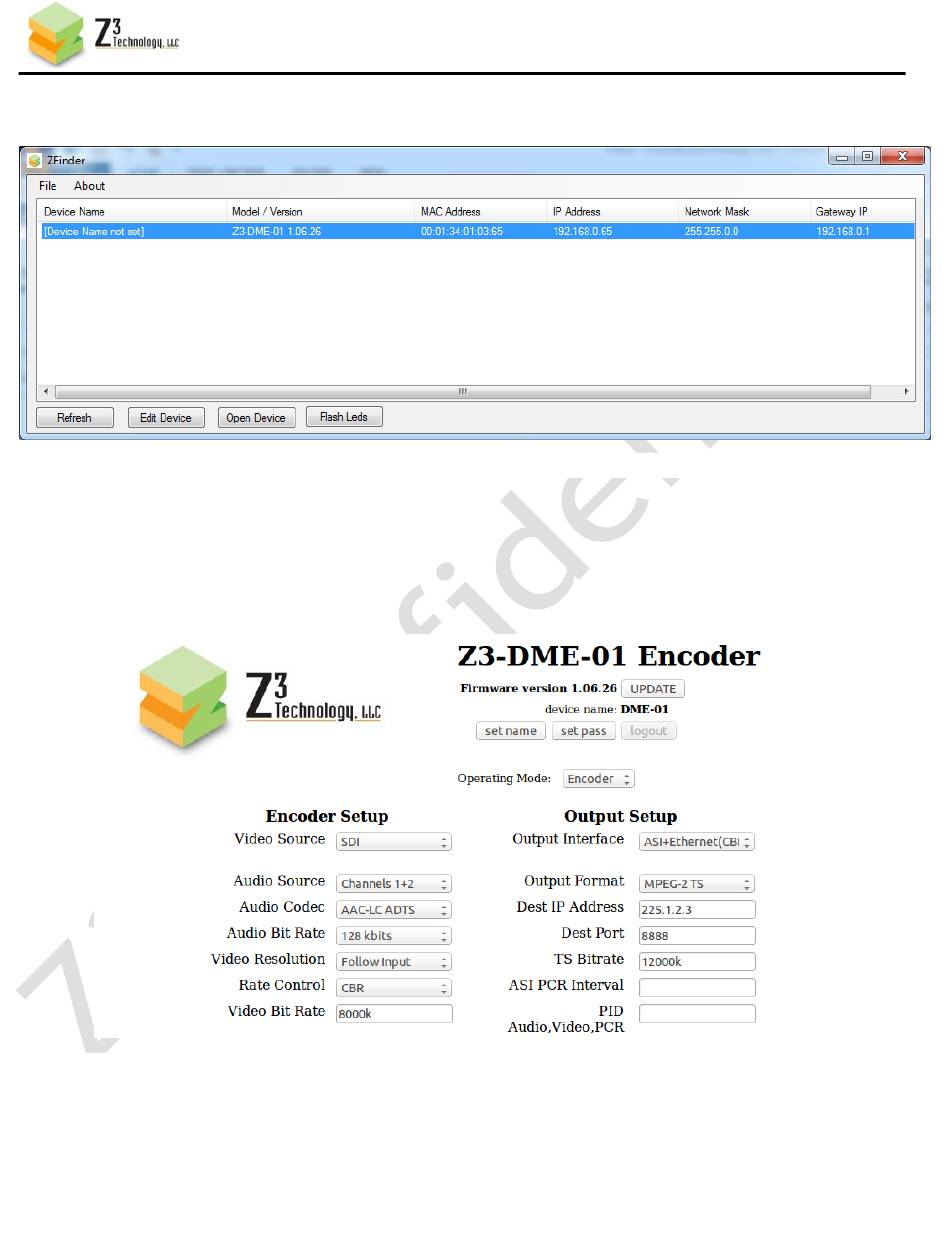

Figure 7 ZFinder with Z3-DME-01 Selected

Figure 8 The Z3-DME-01 Web GUI (Top Part)
