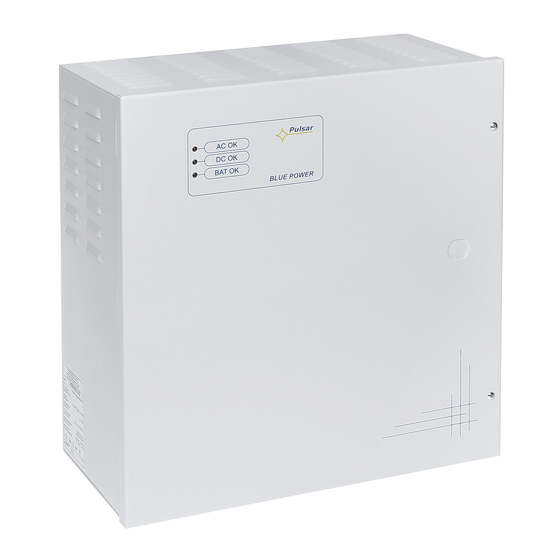

Pulsar Blue Power PSBS 5012D Manual

Buffer switch mode power supply unit
Hide thumbs Also See for Blue Power PSBS 5012D:
Table of Contents

Advertisement

Quick Links

Download this manual
PSBS 5012D
v.1.1
PSBS 13,8V/5A/40Ah/OC
Buffer switch mode power supply unit
with technical outputs.
EN**
Edition: 7 from 03.11.2016
Supercedes edition: 6 from 01.06.2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blue Power PSBS 5012D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar Blue Power PSBS 5012D

Summary of Contents for Pulsar Blue Power PSBS 5012D

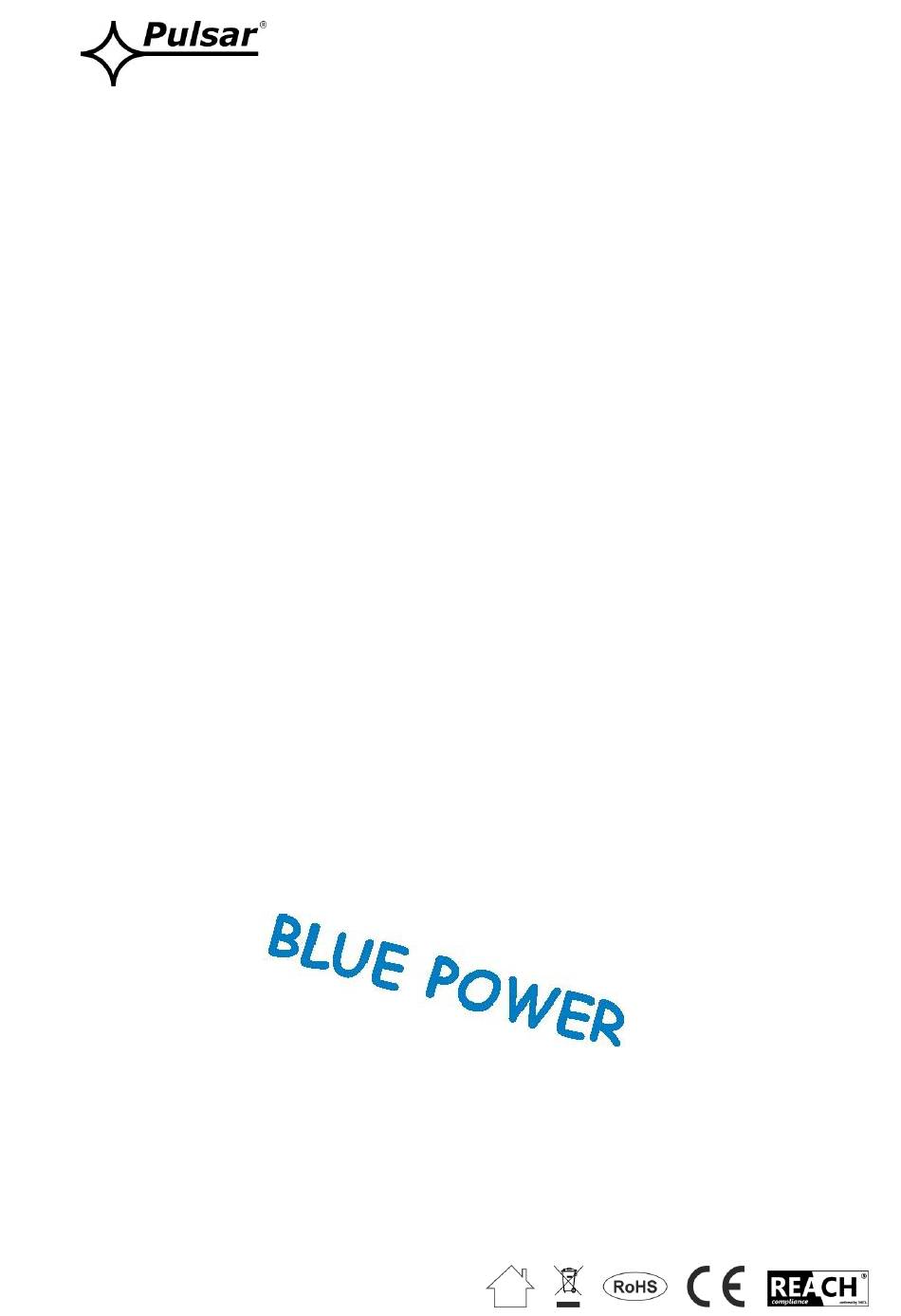

  • Page 1 PSBS 5012D v.1.1 PSBS 13,8V/5A/40Ah/OC Buffer switch mode power supply unit with technical outputs. EN** Edition: 7 from 03.11.2016 Supercedes edition: 6 from 01.06.2016...

  • Page 2: Table Of Contents

    BLUE POWER www.pulsar.pl PSBS5012D PSU features:   uninterruptible power supply DC 13,8V/5A PSU technical output indicating PSU failure  – OC type battery housing: 40Ah/12V   LoB technical output indicating low battery voltage supply voltage AC 230V – OC type ...

  • Page 3: Block Diagram

    BLUE POWER www.pulsar.pl PSBS5012D OPTIONAL POWER SUPPLY CONFIGURATIONS: (visualization available at www.pulsar.pl) 1. Buffer power supply PSBS 13,8V/relay module MPSBS/40Ah - PSBS 5012D + MPSBS + 40Ah 2. Buffer power supply PSBS 13,8V/4x1A/MPSBS/40Ah - PSBS 5012D + LB4 4x1A (AWZ575 or AWZ576) + MPSBS + 40Ah 3.
  • Page 4 BLUE POWER www.pulsar.pl PSBS5012D 1.3 Description of components and power supply terminals (Table 1, Fig.2). Table 1. Components of the Power supply PCB (Printed Circuit Board) (see Fig. 2). Component Description Jumper – configuration of discharged battery disconnection system (UVP) ...

  • Page 5: Technical Parameters

    BLUE POWER www.pulsar.pl PSBS5012D Table 2. Components of the PSU (See Fig. 3). Component no. Description Isolation transformer Printed Circuit Board (see Table 1, Fig. 2) TAMPER; micro switch of tamper protection (NC) fuse in the power supply circuit 230V, T3,15A / 250V...
  • Page 6 BLUE POWER www.pulsar.pl PSBS5012D replacement) Automatic return 110-150% of the PSU power, manual restart (failure Overload protection OLP requires the disconnection of the DC output) Battery circuit protection SCP and reverse T6,3A- current limitation, the F melting fuse (failure polarity connection...

  • Page 7: Installation

    BLUE POWER www.pulsar.pl PSBS5012D Table 5. Safety of use. Protection class PN-EN 60950-1:2007 I (first) Protection grade PN-EN 60529: 2002 (U) IP20 Insulation electrical strength: - between input (network) circuit and the output circuits of the PSU (I/P-O/P) 3000 V/AC min.

  • Page 8: Power Supply Operation Indication

    BLUE POWER www.pulsar.pl PSBS5012D 3. Connect the power cables (230V AC) to the L-N terminals of the PSU. Connect the ground wire to the terminal marked with the PE symbol (power supply module connector). Use a three-core cable (with a yellow and green PE protection wire) to make the connection.

  • Page 9: Technical Outputs

    BLUE POWER www.pulsar.pl PSBS5012D 3.2 Technical outputs. The PSU has three indication outputs:  EPS - technical output indicating 230V AC power failure. The output indicates 230V AC power failure. Under normal status – with the 230V AC supply on, the output is shorted to ground GND.

  • Page 10: Service And Operation

    CAUTION! The power supply unit is adapted for cooperation with the sealed lead-acid batteries (SLA). After the operation period they must not be thrown but recycled according to the applicable law. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 E-mail: biuro@pulsar.pl,...
