- Page 1 PSBS 5012C v.1.1 PSBS 13,8V/5A/17Ah/OC Buffer, switch mode power supply unit with automatic operation control. EN** Edition: 4 from 05.05.2014 Supercedes edition: 3 from 16.09.2013...
-
Page 2: Table Of Contents
BLUE POWER www.pulsar.pl PSBS5012C PSU features: uninterruptible power supply DC 13,8V/5A PSU technical output indicating PSU failure – OC type battery housing: 17Ah/12V LoB technical output indicating low battery voltage supply voltage AC 230V – OC type ... -
Page 3: Block Diagram
BLUE POWER www.pulsar.pl PSBS5012C OPTIONAL POWER SUPPLY CONFIGURATIONS: (visualization available at www.pulsar.pl) 1. Buffer power supply PSBS 13,8V/relay module MPSBS/17Ah - PSBS 5012C + MPSBS + 17Ah 2. Buffer power supply PSBS 13,8V/4x1A/MPSBS/17Ah - PSBS 5012C + LB4 4x1A (AWZ575 or AWZ576) + MPSBS + 17Ah 3. - Page 4 BLUE POWER www.pulsar.pl PSBS5012C 1.3 Description of components and power supply terminals (Table 1, Fig.2). Table 1. Components of the Power supply PCB (Printed Circuit Board) (see Fig. 2). Element nr Description Jumper – configuration of discharged battery disconnection system (UVP) ...
-
Page 5: Technical Parameters

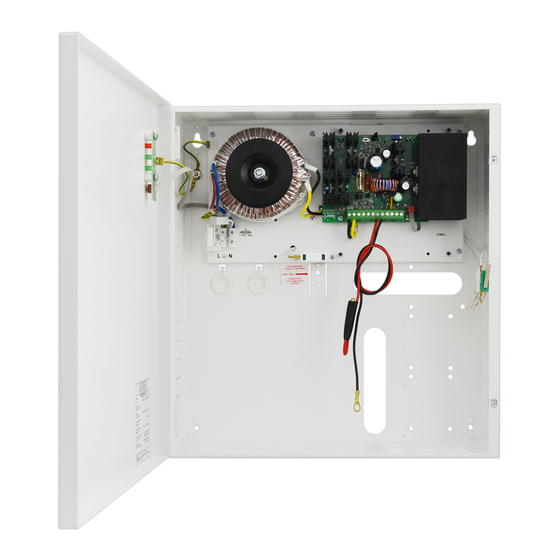

BLUE POWER www.pulsar.pl PSBS5012C Table 2. Components of the PSU (See Fig. 3). Component no. Description Isolation transformer Printed Circuit Board (see Table 1, Fig. 2) TAMPER; micro switch of tamper protection (NC) fuse in the power supply circuit 230V, T3,15A / 250V... - Page 6 BLUE POWER www.pulsar.pl PSBS5012C Ripple voltage 60mV p-p max. PSU current consumption 15 mA 0,5A / 1A / 2A / 3A – jumper selectable Battery charging current Electronic - current limitation and/or activation of the F melting fuse in the battery circuit (failure requires fuse...
-
Page 7: Installation
BLUE POWER www.pulsar.pl PSBS5012C Table 6. Operation parameters. Environmental class Operating temperature -10ºC...+40ºC Storing temperature -20ºC...+60ºC Relative humidity 20%...90%, no condensation Vibrations during operation unacceptable Surges during operation unacceptable Direct insolation unacceptable Vibrations and surges during transport According to the PN-83/T-42106 standard 2. -
Page 8: Power Supply Operation Indication
BLUE POWER www.pulsar.pl PSBS5012C The shock protection circuit shall be done with a particular care: the yellow and green wire coat of the power cable should be connected to the terminal marked with the PE symbol. Operation of the PSU without the properly made and fully operational shock... -
Page 9: Technical Outputs
BLUE POWER www.pulsar.pl PSBS5012C 3.2 Technical outputs. The PSU has three indication outputs: EPS - technical output indicating 230V AC power failure. The output indicates 230V AC power failure. Under normal status – with the 230V AC supply on, the output is shorted to ground GND. -
Page 10: Service And Operation
BLUE POWER www.pulsar.pl PSBS5012C 4. Service and operation. 4.1 Overload or short-circuit of the power supply output (SCP activation). The AUX output of the PSU is protected against short-circuit by PTC polymer fuse. If the power supply load current exceeds Imax. (110% ÷ 150% @ 25°C of the PSU power), automatic disconnection of the output voltage, indicated by switching off the green LED, takes place. - Page 11 GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a five-years warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects, unless such...
- Page 12 BLUE POWER www.pulsar.pl PSBS5012C Pulsar K.Bogusz Sp.j. Siedlec 150, 32-744 Łapczyca, Poland Phone (+48) 14-610-19-40, Fax (+48) 14-610-19-50 E-mail: biuro@pulsar.pl, sales@pulsar.pl http:// www.pulsar.pl, www.zasilacze.pl...
