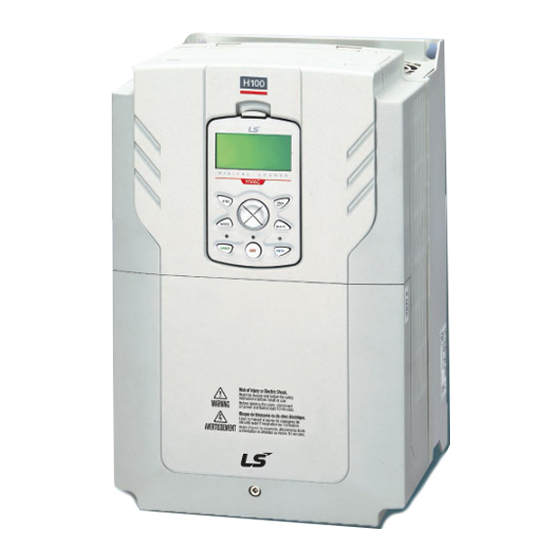

LSIS H100 Quick Start Manual

1. H100 Basic Setup Parameters

The basic drive and motor parameters are shown in Table 1. Set the parameters according to your application.

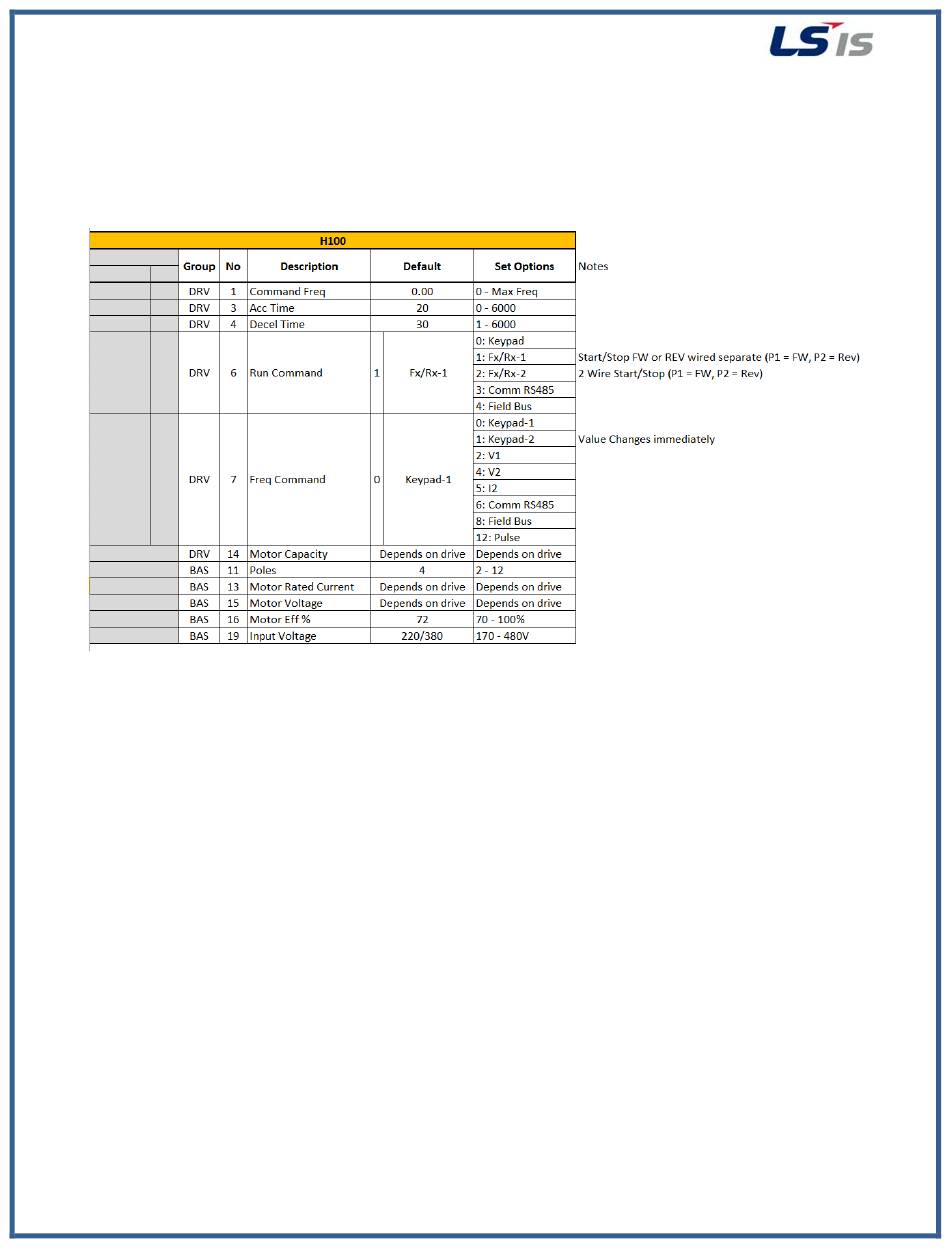

Table 1. H100 Basic Setup Parameters
Note: Many applications will not require changes to the basic setup parameters from their default values.

1.1 H100 Recommended Additional Parameter Changes

The H100 drive has some default settings the user may want to change to obtain better protection of the
drive/motor and the application. These changes are recommended, but not needed for all applications.
Auto Reset
•
Program CON 71 bit 3 to High State (0100).
•
Program PRT 08 (Reset/Restart after a fault) to "1" (Yes).
•
Program PRT 09 (Number of Retries) to a number between 0 -10.
•
Program PRT 10 (Auto Reset Time) to desired time to allow cause of fault to clear and safe starting.
Start on Power Loss
•
Program ADV 10 (Power on Start) to "1" (Yes).
Phase Loss
•
Program PRT 05 (Phase Loss) to detect input and/or output phase loss.
Note: This parameter is displayed as DIP switches on the H100. Left bit is the Input, Right bit is the Output.

2. HP to kW Conversion Table

Use the following conversion table to enter the motor HP. Select the closest size the drive allows in kW (motor
power is in kW on most LSIS drives)
