Overview
The UDM-1604C 4x6 Multi-Format Distribution Hub (FG-UDM-1604C) delivers any
video source, including Component, RGB, VGA and S-Video to a virtually unlimited
number of display devices. The UDM-1604C (FIG. 1) supports 4 high-resolution input
ports and 16 UDM output ports, and supports multiple methods of delivering sync
information between the UDM hub and the display device, including common mode.
UDM OUTPUT Ports (RJ-45)
IR TX connections for locally connected devices
Serial port (RJ-12)
ETHERNET port (RJ-45)

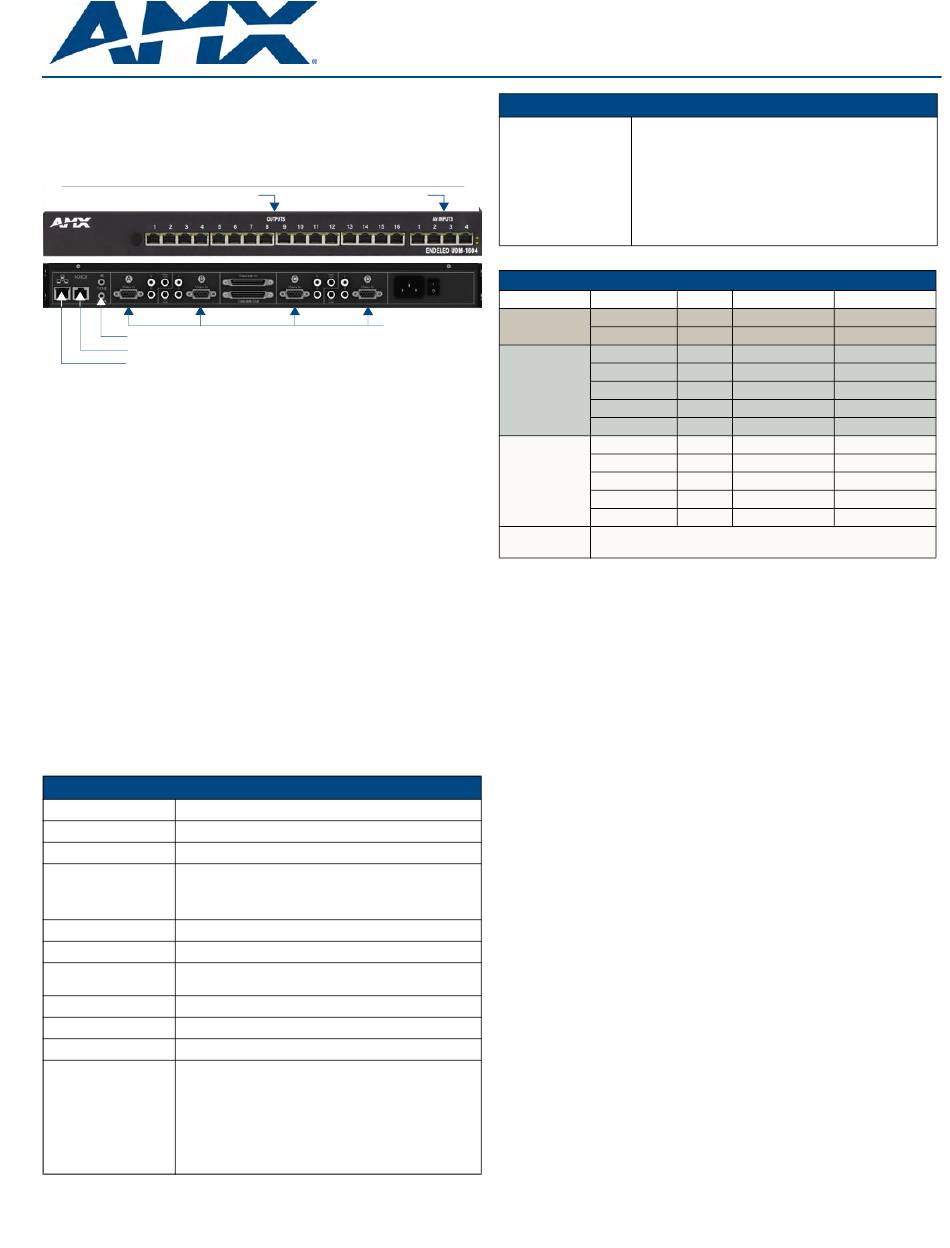

FIG. 1
UDM-1604C
In total, the UDM-1604C can distribute any combination of the following:
4 RGBHV sources, 4 Component video sources, 4 S-Video sources or 12 Composite
video sources.
Source inputs to the UDM are industry standard VGA, Composite, Component or
S-Video feed, and output is presented as an RJ45 port for connection to Cat5/5e/ 6
twisted-pair Ethernet cable.
Video inputs are connected via the HD15 Input connector on the rear of the UDM.
Adapters are used to bring the different types of video source into the UDM.
Each UDM has an Ethernet network port to provide connectivity to a central
management system, or can be controlled by the onboard configuration pages. A
Serial connection is also provided for CLI administration and diagnostic purposes.
Refer to the UDM-1604C Multi-Format Distribution Hub Operation/Reference Guide
(available online at www.amx.com) for detailed information on configuring the Hub,
UDM receivers and source devices.
Features
4 multi-format inputs (plus 4 CVBS inputs) x 16 outputs
Supports multiple methods of delivering sync, including Common Mode Sync
Digital audio support
Central device control
Compatible with TVM-1600
1U rack-mounting
Compatibility
The UDM-1604C is compatible for use with UDM-RX01 (FG-UDM-RX01) and
UDM-RX02 (FG-UDM-RX02) Receivers.
Note: Common Mode Sync delivery is supported only on the UDM-RX02.
Product Specifications
UDM-1604C Specifications
Power Requirements:
90-264v AC140 W (3 PIN IEC)
Network Interface:
10baseT
Serial Interface:
9600, 8, N, 1
Max Video Input:
• 4 x RGBHV (or)
• 4 x S-Video (or)
• 12 x CVBS (plus)
• 4 x Endeleo TVM-1600 or CVBS
Cascade Port:
Matrix connector for tertiary units
Electrical:
RJ-45 indicating power to receiver and link status.
Operating Environment: • 35°F - 95°F (5°C - 35°C)
• Max. relative humidity - 85% (non-condensing)
Dimensions (HWD):
1 3/4" x 19" x 12 1/2" (45 mm x 440 mm x 320 mm)
Weight:
8.8 lb. (4 Kg)
Certifications:
CE/UL/FCC part 15 Class A
Included Accessories:
• IEC power cord
• 6' Ethernet Crossover Cable
• 19" mounting brackets
• RS232 DB9/RJ12 Connection Cable (FG-RS01)
• IR03 External Infrared Receiver Module (FG-IR03)
• UDM-RC10 IR Engineering Remote Control
(FG-UDM-RC10)
Note: No A/V interface cables supplied.
UDM-1604C
TVM / AV Ports (RJ-45)
Input connections
4x16 Multi-Format Distribution Hub
UDM-1604C Specifications (Cont.)
Other AMX Equipment:
• HD15 to S-Video Cable (FG-UDM-SVID01)
• HD15 to 3x RCA Breakout Cable (FG-HD15RCA3)
• RS232 DB9/RJ12 Connection Cable (FG-RS01)
• UDM-RX01 Multi-Format Receiver (FG-UDM-RX01)
• UDM-RX02 Multi-Format Receiver (FG-UDM-RX02)
• UDM-RC10 IR Engineering Remote Control
(FG-UDM-RC10)
• IR01 IR Emitter Module (FG-IR01)
• IR02 IR Splitter Cable (FG-IR02)
• IR03 External IR Receiver Module (FG-IR03)
Audio & Video Formats/Resolutions/Distance
Audio & Video Formats/Resolutions/Distance
Class
Format
Composite
720x480
720x576
Component
720x480
720x576
1280x720
1920x1080
1920x1080
VGA
640x480
800x600
1024x768
1280x1024
1600x1200
* When using VGA modes with audio enabled, the maximum
cable distance is approximately 200 m / 650' (UDM-RX02).
Note: The maximum distances indicated above are not absolute, but are
recommended distances that have been tested to deliver video at the specified
resolutions, without significant signal degradation. In particular, lower resolutions
(640 x 480, 720 x 480 and 800 x 600) can often be delivered significantly further than
what is indicated in the table. Refer to the UDM-1604Operation/Reference Guide for
additional details on maximum cable distances.
A/V Source Input Connectors
There are 4 sets of input connectors to the rear panel of the UDM-1604C, labelled A-D
(see FIG. 1) that allow the UDM-1604C to connect to A/V source devices.
Connecting a VGA Video Input
1.
Connect one end of a VGA cable to the source device's VGA output port.
2.
Attach the other end of the cable to the appropriate VIDEO IN connection on the
UDM. For example, connect to the Video In connection on Input A of the Hub.
3.
Connect any audio to the analog (RCA) audio connectors or digital (SPDIF)
connector.
Note: Ensure the UDM Hub port the RX01/RX02 is attached to is configured cor-
rectly within the Hub's configuration software. Also ensure the correct Audio
Type (Analog L/R, S/PDIF, or None) is selected for the relevant input.
Connecting a Composite Video Input
1.
Connect the UDM-HD15RCA3F Breakout Cable (FG-HD15RCA3F, not
included) to the source device's Composite output ports:
A1 = red RCA
A2 = green RCA
A3 = blue RCA
2.
Attach the other end of the cable to the appropriate VIDEO IN connection on the
UDM.
3.
Connect any audio to the analog (RCA) audio connectors or digital (SPDIF)
connector.
Connecting a Component Video Input
1.
Connect the UDM-HD15RCA3F Breakout Cable (FG-HD15RCA3F, not
included) to the video source device's Component video output connectors
(Red, Green and Blue).
2.
Attach the other end of the cable to the appropriate VIDEO IN connection on the
UDM.
3.
Connect any audio to the analog (RCA) audio connectors or digital (SPDIF)
connector.
Connecting an S-Video Input
1.
Connect the UDM-SVID01 HD-15 to SVideo cable (FG-UDM-SVID01, not
included) to the video source's S-Video connection.
2.
Attach the other end of the cable to the appropriate VIDEO IN connection on the
UDM.
3.
Connect any audio to the analog (RCA) audio connectors or digital (SPDIF)
connector.
Quick Start Guide
Name
UDM-RX01
UDM-RX02
NTSC
300 m / 1000'
300 m / 1000'
PAL
300 m / 1000'
300 m / 1000'
480p
300 m / 1000'
300 m / 1000'
576p
300 m / 1000'
300 m / 1000'
720p
200 m / 650'
300 m / 1000'
1080i
150 m / 500'
300 m / 1000'
1080p
120 m / 400'
300 m / 1000'
VGA
200 m / 650'
300 m / 1000' *
SVGA
200 m / 650'
300 m / 1000' *
XGA
200 m / 650'
300 m / 1000' *
SXGA
150 m / 500'
300 m / 1000' *
UXGA
120 m / 400'
300 m / 1000' *
