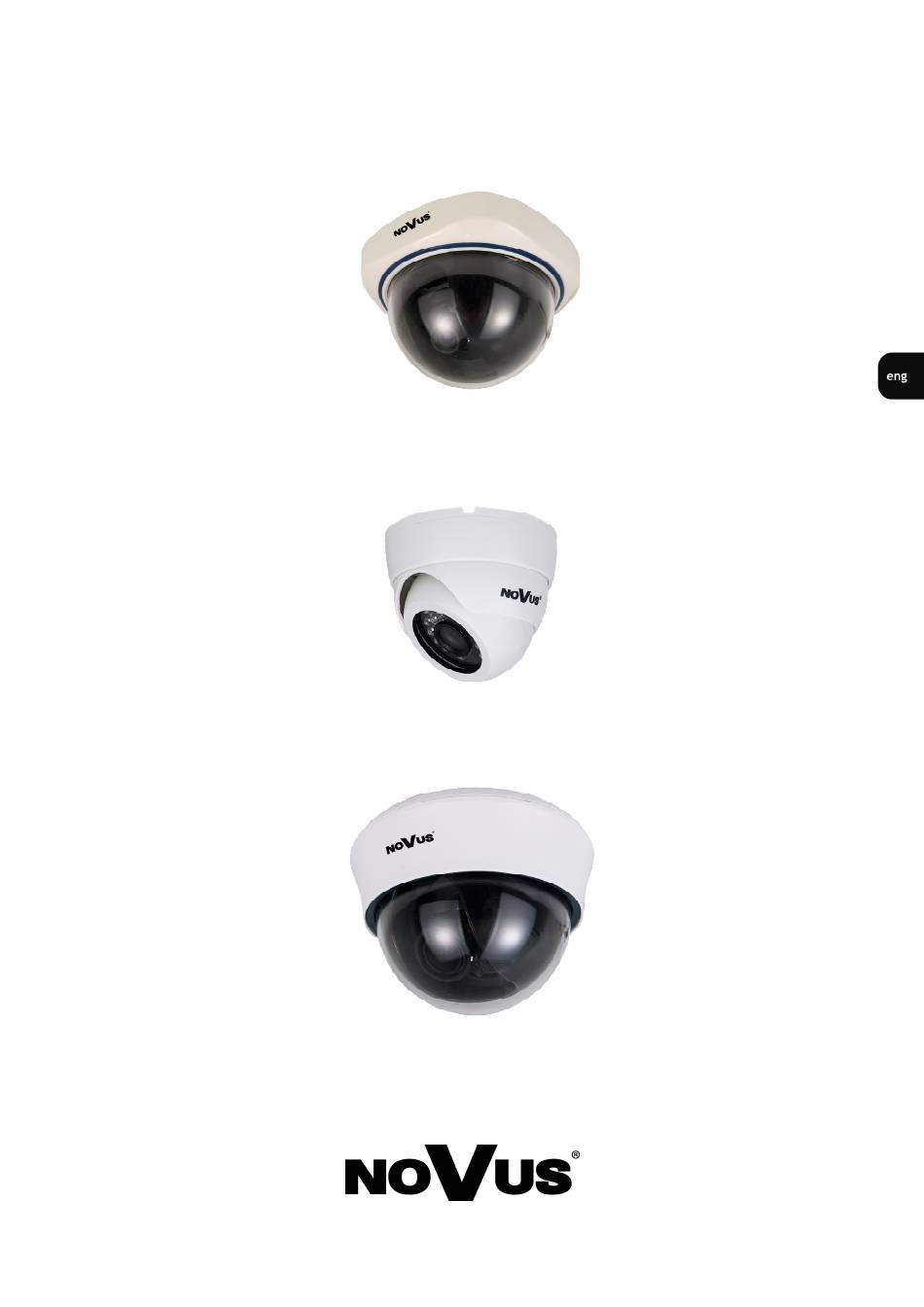

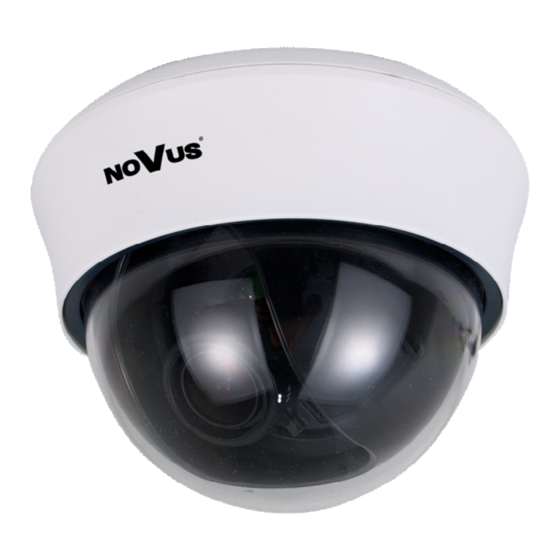

- Page 1 ’s m a n u a l NVC-FC2310D NVC-FC2311D/IR NVC-FC2312D...
- Page 2 NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 INFORMATION EMC (2004/108/EC) and LVD (2006/95/EC ) Directives CE Marking Our products are manufactured to comply with the requirements of the following directives and national regulations implementing the directives: Electromagnetic compatibility EMC 2004/108/EC.
-
Page 3: Safety Requirements
NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 SAFETY REQUIREMENTS WARNING! THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION. - Page 4 NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 SAFETY REQUIREMENTS 9. Device should be supplied only from a power sources whose parameters are in accordance with those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera from a power sources with unknown parameters, unstable or not meeting producer’s...
-
Page 5: Foreword Information
NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 FOREWORD INFORMATION 1. PACKAGE CONTENTS Mounting drawing Camera Screws 12VDC connector User’s manual paper (NVC-FC2312D) If any of the listed equipment has been damaged during transport or if the package is incomplete, the contents of package should be packed back in to the original box. -
Page 6: Features And Specification
NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 FEATURES AND SPECIFICATION 3. SPECIFICATION NVC-FC2310D-white NVC-FC2312D-white MODEL NVC-FC2311D/IR NVC-FC2310D-black NVC-FC2312D-black IMAGE Pick-up Element CCD imager, 1/3” SONY Super HAD II Number of Effective 976 (H) × 582 (V) Pixels 650 TVL - color mode, 650 TVL - b/w mode Horizontal Resolution 0.14 lx/F=2.0... -
Page 7: Specification
NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 SPECIFICATION 3.1 Dimensions: NVC-FC2310D NVC-FC2311D/IR NVC-FC2312D 3.2 Layout of important camera items: Latches Base of the camera Horizontal/vertical rotation Dome cover NVC-FC2310D All rights reserved © AAT Holding Sp. z o.o. -
Page 8: Installation
NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 INSTALLATION IR LED Base of the camera Horizontal/vertical rotation Stoping ring Dome cover Illumination sensor NVC-FC2311D/IR Horizontal/vertical Blocking tab Middle-housing rotation Additional power supply input Base of the camera and video output... - Page 9 Camera is equipped with an OSD menu. During camera operation, status information can be displayed on the screen. As mentioned before, a joystick is placed inside the camera cover (NVC-FC2312D) or attached to power/video cable (NVC-FC2310D i NVC-FC2311D/IR), for navigating and changing menu settings: LEFT...
- Page 10 NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 SETTINGS In order to enter the menu press the joystick down, which results in executing ENTER command. For choosing the submenus please move the joystick into UP, DOWN positions. If a symbol is present, enter particular sub-menu by pressing the joystick, which is associated with executing the ENTER.
- Page 11 NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 SETTINGS 5.1.3. SHUTTER/AGC submenu This menu offers how to control/select SHUTTER and AGC to get the best image for the high luminance and the low luminance according to the scene. In AUTO mode: HIGH LUMINANCE Settings on the medium - and high-brightness side.
- Page 12 NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 SETTINGS Selects INDOOR or OUTDOOR. Their ATW is optimized for the limited ENVIRONMENT application. INDOOR Optimized for indoor installation and compensates ATW for low colour temperature such as incandescent lights. OUTDOOR Optimized for outdoor sunlit applications and compensates ATW for high colour temperature such as daylight.
- Page 13 NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 SETTINGS NR MODE Select to set the 2D NR filter mode (Y, C, Y/C). Y LEVEL (0-15) Indicates the noise reduction strength for the luminance signal. Higher value performs stronger noise reduction and makes the image less sharp. Due to the limitation of 2D NR, noise reduction may not be effective enough.
- Page 14 NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 SETTINGS 5.1.8. BACKLIGHT submenu These compensation functions allow for enhancing visibility of the objects located in the foreground, surrounded by strongly illuminated background (BLC) or for enhancing visibility of the objects located near the strong light source (HLC). If a strong, point light source appears on the screen, function will mask it allowing for effective observation of the scene itself (for example this function is used to, observe licence-plates of the cars).
- Page 15 NVC-FC2310D, NVC-FC2311D/IR, NVC-FC2312D - User’s manual ver. 1.1 SETTINGS DETECT SENSE (0-127) Adjusts the sensitivity for detecting motion. A higher value is more sensitive. (ON/ENABLE/OFF) Enables or disables displaying luminance highlighted BLOCK DISP blocks for the area where the motion is detected.
- Page 16 2013-09-17 PR, MM AAT Holding sp. z o.o., 431 Pulawska St., 02-801 Warsaw, Poland tel.: +4822 546 07 00, fax: +4822 546 07 59 www.novuscctv.com...
