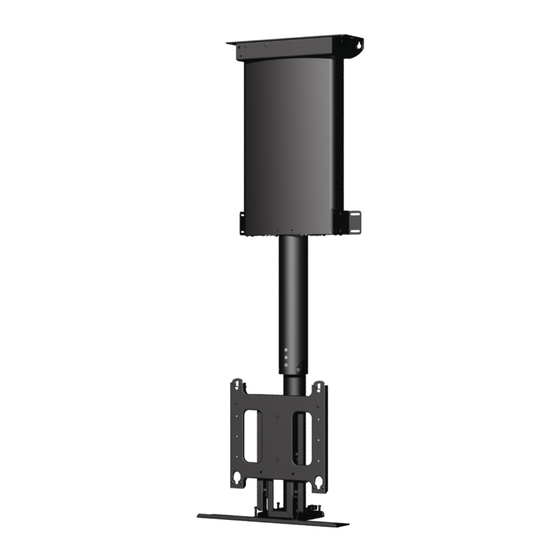

CHIEF Automated Flat Panel Ceiling Lift CM2C40 Installation Instructions Manual
Automated flat panel ceiling lift
Hide thumbs
Also See for Automated Flat Panel Ceiling Lift CM2C40:
- Installation instructions manual (77 pages) ,
- Specifications (1 page) ,
- Brochure (16 pages)
Table of Contents
Advertisement
Quick Links
I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
This device complies with part 15 of the FCC rules. Operation is subject to the following 2 conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio or television
communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
•
Reorient or relocate the receiving antenna
•
Increase the separation between the equipment and receiver
•
Connect the equipment to an outlet on a circuit other than that to which the receiver is connected
Consult the dealer or and experienced radio/TV technician for help
Automated Flat Panel Ceiling Lift
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
CM2C40
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF Automated Flat Panel Ceiling Lift CM2C40
Summary of Contents for CHIEF Automated Flat Panel Ceiling Lift CM2C40
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Installationsanleitung Instruções de Instalação Automated Flat Panel Ceiling Lift This device complies with part 15 of the FCC rules. Operation is subject to the following 2 conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 2 CM2C40 CSAV, Inc., and its affiliated corporations and subsidiaries (collectively, "CSAV"), intend to make this manual accurate and complete. However, CSAV makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
-
Page 3: Table Of Contents
Installation Instructions CONTENTS INSTALLATION REQUIREMENTS ... 5 Power Requirements and Wiring ... 5 INSTALLATION ... 5 Pre-Installation Configuration and Adjustments ... 5 Configuring the Mount for the Display ... 5 Install Display ... 7 Shelf Height Adjustment ... 8 Determining Minimum I.D. of Furniture ... 10 Cable Installation and Routing ... - Page 4 CM2C40 LEGEND Tighten Fastener Apretar elemento de fijación Befestigungsteil festziehen Apertar fixador Serrare il fissaggio Bevestiging vastdraaien Serrez les fixations Loosen Fastener Aflojar elemento de fijación Befestigungsteil lösen Desapertar fixador Allentare il fissaggio Bevestiging losdraaien Desserrez les fixations Phillips Screwdriver Destornillador Phillips Kreuzschlitzschraubendreher Chave de fendas Phillips...
-
Page 5: Installation Requirements
Installation Instructions INSTALLATION REQUIREMENTS The CM2C40 has been designed to be mounted either hanging from an overhead structure or mounted to existing stud wall structures. WARNING: IMPROPER INSTALLATION CAN LEAD TO LIFT TIPPING CAUSING SEVERE PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installers responsibility to make certain the structure to which the lift is being mounted is capable of supporting 4 times the weight of the lift and all attached equipment. - Page 6 CM2C40 Figure 3 Remove two locknuts securing faceplate to faceplate mounting bracket. (See figure 4) Move faceplate up one set of holes to adjust location 1" or two sets of holes to adjust 2". (See figure 4) 1" (25MM) Figure 4 Secure faceplate to faceplate mounting bracket using two locknuts.
-
Page 7: Install Display
Installation Instructions 15. Align studs in faceplate with appropriate holes in faceplate mounting bracket and hang faceplate on bracket with studs. 16. Secure faceplate to faceplate mounting bracket using two locknuts. (See figure 7) Figure 7 Cable Installation and Routing The CM2C40 has an integrated cable management system that allows cables to be automatically "fed out"... -
Page 8: Shelf Height Adjustment
CM2C40 Installation Instructions From Display Figure 10... - Page 9 Installation Instructions Route cable(s) down through opening at rear of middle cable clamp mounting bracket. (See figure 10) and (See figure 11) NOTE: If plug on cable will not fit through opening loosen or remove one screw securing middle cable clamp mounting bracket to mount frame and pivot middle cable clamp mounting bracket to the side until plug can be routed behind bracket.
-
Page 10: Determining Minimum I.d. Of Furniture
CM2C40 Mount Installation The CM2C40 has been designed to be mounted either hanging from an overhead structure or mounted to existing stud wall structures. The following instructions assume a suitable mounting structure and surface exists prior to installation and all power and signal wires and cables have been properly installed. - Page 11 Installation Instructions While maintaining dimensions referenced in figure 15, mark base plate mounting hole locations. (See figure 16) Drill pilot holes at marked locations. Mark four side bracket mounting hole locations if applicable. (See figure 16) 10. Drill four pilot holes at marked locations. 11.
- Page 12 CM2C40 NOTE: Holes are provided in the faceplate for use with a padlock or similar locking device, if desired. In addition, the pin and nut may be removed from the upper holes and moved to the lower holes for use as a more permanent locking device.
- Page 13 Installation Instructions Bottom Cover Installation After the CM2C40 has been properly configured for the display and the display installed, the bottom cover height must be adjusted to ensure proper fit into ceiling. WARNING: IMPROPER INSTALLATION CAN LEAD TO SEVERE PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Weight of bottom cover MUST NOT exceed 25lbs (11.34kg).
-
Page 14: Mount Installation
CM2C40 Assemble bottom cover to cover mounting plate using #10-24 screws a minimum of 1/4" plus the thickness of the cover material long. (not provided). (See figure 25) Bottom Cover #10-24 screw Figure 25 Bottom Cover Location Adjustment The CM2C40 is designed to allow the adjustment of both "Extend"... -
Page 15: Adjustments
Installation Instructions Lift Column Bearing Adjustment The upper and lower lift columns are aligned using two lift bearings, one upper and one lower. Bearing adjustment is pre-set at the factory, however, there may be times when it is required to make slight adjustments in bearing tightness to eliminate excess play in lift columns or noise. -
Page 16: Extended Programming Capabilities
CM2C40 Extended Programming Capabilities The CM2C40 allows for extended programming to make the mount compatible with other devices such as a Universal Remote or other control devices through a serial connection. Setting or changing the configuration of the CM2C40 is done through the remote control provided with the mount. - Page 17 Installation Instructions NEC Protocol: The modulated carrier is usually derived from 455kHz and is 1/12 of the frequency with 1/3 duty cycle. When data are transmitted repeatedly, the frame cycle is 107.9ms or 186 period. A frame consists of a syn pulse, an eight-bit custom code, an eight-bit inverted custom code, an eight-bit data code and an eight-bit inverted data code.
-
Page 18: Ir-Se15 Programming
CM2C40 IR-SE15 Programming IR-SE15 Control Features: • Carrier Frequency:38KHz • Protocol:NEC - Full Repeat • System Code(s):6E (Default) - Multiple Codes Selected via Key-Press (see below) Table 1-2: IR-SE15 Control Codes Key Number Key Name HOME SAVE LEFT STOP RIGHT DOWN PRESET 1 PRESET 2... -
Page 19: Ir-Sc33A Programming
Installation Instructions IR-SC33a Programming IR-SC33a Control Features • Carrier Frequency: 38KHz • Protocol: NEC - Full Repeat • System Code: 6E Table 1-4: Key Number Key Name HOME RETRACT LEFT RIGHT EXTEND PRESET 1 PRESET 2 PRESET 3 SAVE Hex Code CM2C40 19 20... -
Page 20: Serial Communications
CM2C40 Serial Communications NOTE: Check with the appropriate automation system vendor for available drivers and/or software for any external devices. Notes: [PR] = Product ID (CM2C40 = 02) [AD] = Address (see address description & table) [CR] = ASCII Carriage Return [CH] = Check Code [ST] = Status (see status table) Connecctions to be made to 9 pin connector as follows:... - Page 21 Installation Instructions Address Description: Multiple Chief devices can be used on the same network by setting each device to a different address. Note: All units ship with a default address of 0 Address Table: Addresses are set using dipswitches located next to power inlet on mount. Switch # 6 Switch # 7 Status Table:...
-
Page 22: Cm2 Hardware Reference
CM2C40 CM2C40 Hardware Reference Motor Control Hardware Information (See figure 31) RS485 Network Programmable Paramaters and Status Bit Assignments Parameter Identifier 0 Custom Code 1 Maximum Movement Time 2 Extend Speed 3 Retract Speed 4 Ramp UP Time 5 Ramp DOWN Time 6 Show Extend Delay 7 Show Retract Delay 0 At Home Position... - Page 23 Installation Instructions CM2C40 1st Position of switch array 1st Position of connector array 1st Position of connector array Figure 31 CM2C40 Connectors and Switches...
-
Page 24: Cm2 Interface Board Hardware Information
CM2C40 CM2C40 Interface Board Hardware Information (See figure 31) Dry Contact Closures The unit provides dry contact outputs for system feedback, or to control other devices. To complete circuits to external devices: Connect the common wire from your switch to terminal 7. (See figure 32) Connect the 'up' wire from your switch to terminal 5. -
Page 25: Other Dry Contact Options
Installation Instructions Other Dry Contact Options Extend Retract with Single Switch Pins 1 and 2 on 9 pin Connector. (See figure 31) and (See figure 33) Voltage Sense External Power Source Unit extends and stays extended when voltage from an external source is applied across pins 3 and 4 on connector J1. When voltage is removed unit retracts. - Page 26 CM2C40 Retract Error Input NOTE: Units are shipped with error contacts "Normally Open". To set unit to respond to "Normally Closed" error contacts contact a Chief Technical Support representative by calling 1-800-582-6480, or by visiting www.chiefmfg.com. When unit receives a Retract error signal during a Retract operation, the unit will immediately stop and reverse direction. (See figure 31) and (See figure 37) Extend Limit Option Internal set of dry contacts close when unit is fully extended.
-
Page 27: Connector And Switch Assignments
Installation Instructions Connector and Switch Assignments All Dipswitches are in the "OFF" position when shipped from factory. Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 Switch 7 Switch 8 Not Used Not Used 485 Address 485 Address 485 Address IR System Code Select Logic Switch Settings (Sw 1-3) - Page 28 CM2C40 Installation Instructions Figure 40...
-
Page 29: Troubleshooting
Installation Instructions Troubleshooting SYMPTOM Lift does not respond POSSIBLE CAUSE CORRECTIVE ACTION • No Power to Mount Verify Power to Mount • 12V trigger option being Normal Operation used See "Low Voltage Sensing" section • Overheated motor Allow motor to cool for 10 to 15 minutes CM2C40... - Page 30 CM2C40 8820-000030 2007 Chief Manufacturing www.chiefmfg.com 11/07 USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378 P 800.582.6480 / 952.894.6280 F 877.894.6918 / 952.894.6918 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615...
