1. Align the AMAG M4000 modules on the backplane to match the boards' mounting holes with
corresponding pems.
2. Fasten spacers (provided) onto metal pems (Fig. 5a, pg. 3).
3. Mount AMAG M4000 modules to spacers utilizing pan head screws (provided) (Fig. 5a, pg. 3).
Note: AMAG M4000 modules have one (1) screen. Please make sure that they are mounted correctly,
as shown in Fig. 5 below.
4. Fasten TAG1R backplane to Trove1R rack enclosure utilizing hardware (provided).

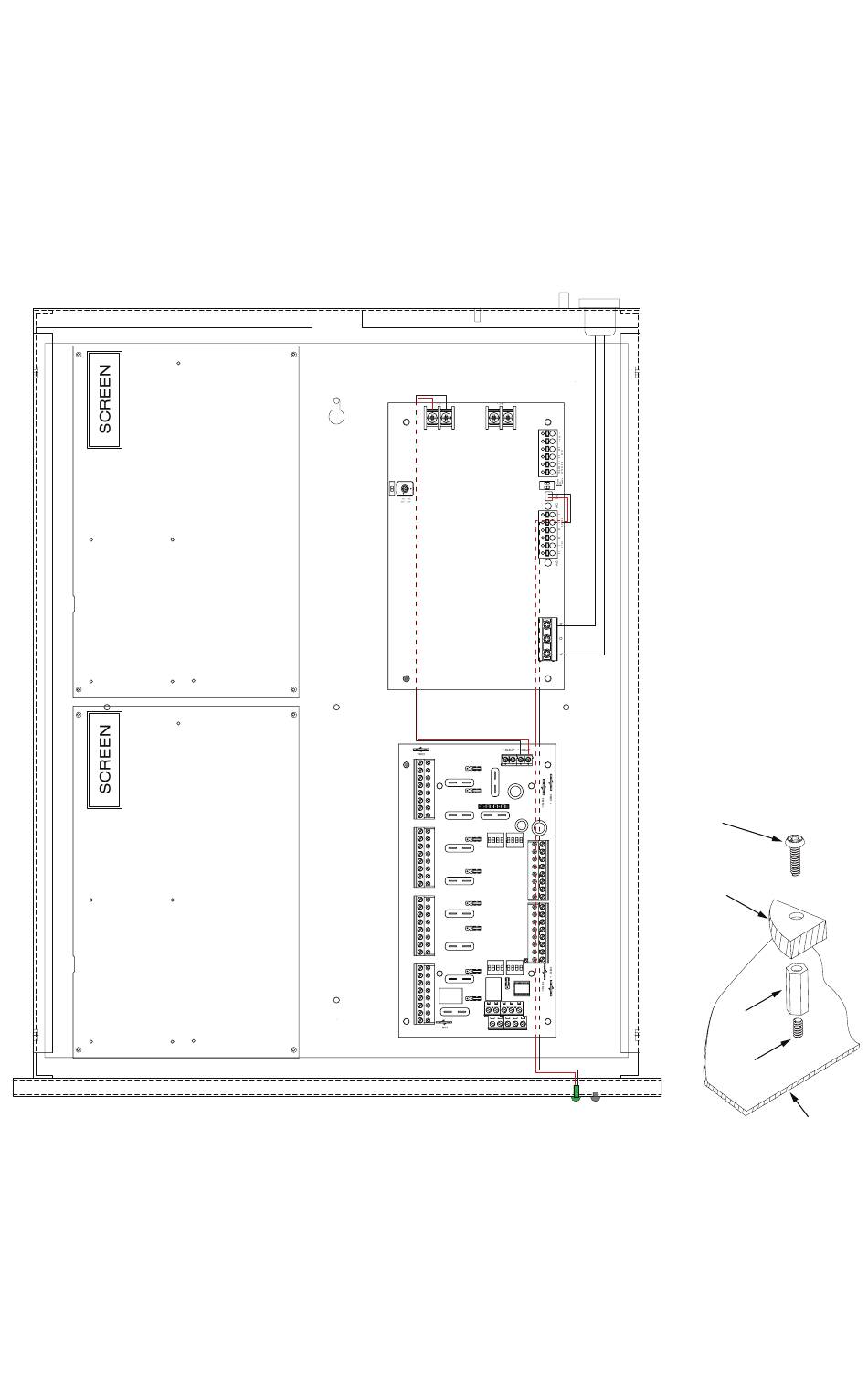

Fig. 5
AMAG - M4000
AMAG - M4000
T1RAG3F8 Installation Guide
T1RAG3F8:
Configuration of AMAG M4000 Modules
ON
To IEC
connector
Altronix - eFlow6NB
VR6 is
mounted
under
Altronix - ACMS8
ACMS8
To LED
lense
Fig. 5a
Pan Head
Screw
Hirsch
Controller/Accessory
Spacer
Pem
Backplane
- 5 -
