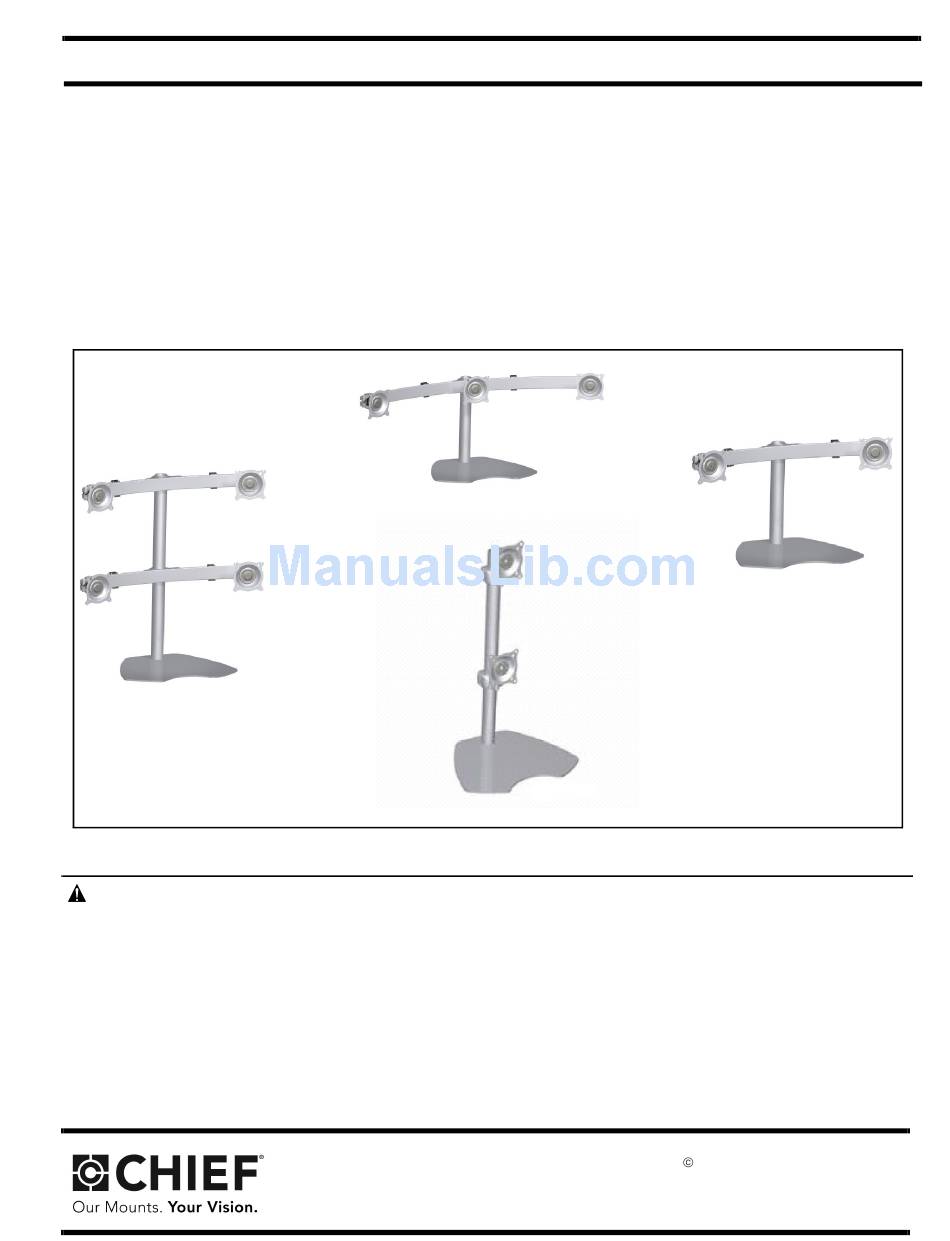

I N S T A L L A T I O N I N S T R U C T I O N S
Horizontal And Vertical Table Stands
and Accessories
Model: KTP-Series

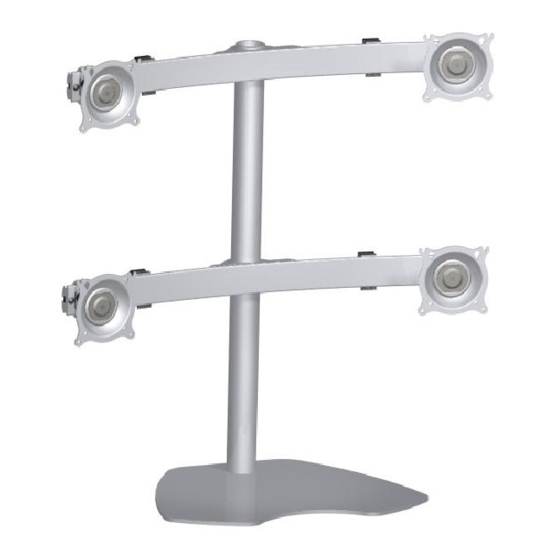

The KTP-Series is a free standing, pole mount solution for multiple displays.
KTP-440 / KTP-445
BEFORE YOU BEGIN
CAUTION!
To prevent damage to the Kit, which could affect or void the Factory warranty, and to the equipment that will be
attached to it, thoroughly study all instructions and illustrations before you begin the installation.
•
If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
Chief® and Centris™ are trademarks of Milestone AV Technologies. All rights reserved.
KTP-320
Chief Manufacturing, a products division of
Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
P: 800.582.6480 / 952.894.6280
KTP-220 / KTP-225
KTP-230
2008 Milestone AV Technologies,
a Duchossois Group Company
8832-000142 Rev I
www.chiefmfg.com
11/08
Advertisement
Table of Contents
Related Manuals for CHIEF KTP-Series
Summary of Contents for CHIEF KTP-Series
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Horizontal And Vertical Table Stands and Accessories Model: KTP-Series The KTP-Series is a free standing, pole mount solution for multiple displays. KTP-440 / KTP-445 BEFORE YOU BEGIN CAUTION! To prevent damage to the Kit, which could affect or void the Factory warranty, and to the equipment that will be attached to it, thoroughly study all instructions and illustrations before you begin the installation.
-
Page 2: Tools Required For Installation
Model: KTP-Series TOOLS REQUIRED FOR INSTALLATION • Phillips Head Screw Driver • 3/4" Wrench • 3/32" Hex Key (provided) • 5/32" Hex Key (provided) • 7/32" Hex Key (provided) PARTS Carefully inspect components for shipping damage . If damage is apparent, call your carrier claims agent and do not continue with installation until the carrier has reviewed the damage.(see Figure 1) - Page 3 (210). (see Figure 3) (10 Includes 210, 220, 230) (110) (90) (50) (70) (60) Figure 1: Parts (140) Figure 3: Mount Centris Head with Pole Clamp (90) Model: KTP-Series (160) (180) (120) (200) (190) (130) (140) (100) (80) (210) (60)
- Page 4 Model: KTP-Series NOTE: Equally tighten screws (230) against front pole mount (210) and rear (220) pole clamps. (see Figure 4) Keep equal distance between mount and clamp when tightening Figure 4: 4. Secure rear pole clamp (220) to front pole mount (210) and pole by tightening three BHCS (230) using 5/32"...
- Page 5 (20, 30) 8. Reinstall end locks into mounting rail using the 5/32" hex key (120) (see Figure 13). Display with Centris Bracket (20, 30) Centris Head Figure 12: Mount Display with Centris Bracket to Model: KTP-Series Centris Head Display Array Rail...
- Page 6 Model: KTP-Series (20, 30) End Lock End Lock Retaining Screw Figure 13: Reinstall End Lock(s) ADJUSTMENTS Display Adjustment The KTP Series mount allows horizontal, pitch, and rotational adjustment of each display. The KTP Series mount also allows a full 360 deg. of display rotation with a maximum pitch range of 15°...
- Page 7 Installation Instructions Model: KTP-Series...
- Page 8 Model: KTP-Series Installation Instructions...
