CHIEF KTA-1000 Installation Instructions

Vertical grommet mount table stand

I N S T A L L A T I O N I N S T R U C T I O N S

Instrucciones de instalación

Installationsanleitung

Instruções de Instalação

Vertical Grommet Mount Table Stand

Istruzioni di installazione

Installatie-instructies

Instructions d´installation

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

KTA-1000

Table of Contents

Need help?

Do you have a question about the KTA-1000 and is the answer not in the manual?

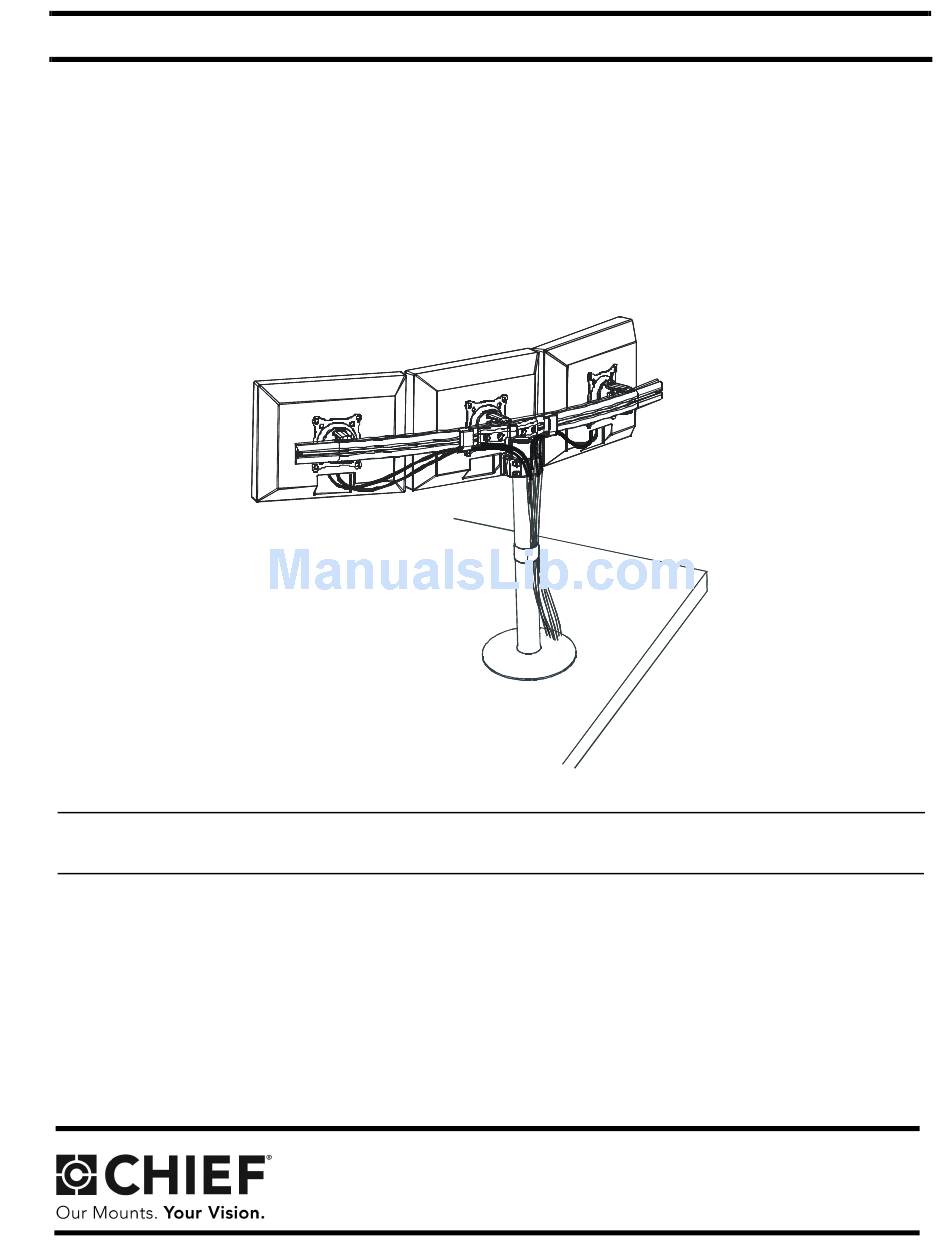

Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Vertical Grommet Mount Table Stand Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description KTA-1000...
Page 2 It is the installer’s responsibility to make sure the maximum weight IMPORTANT WARNINGS AND installed on the KTA-1000 doesn’t exceed 120 lbs (54.4 kg) if CAUTIONS! mounting an array component or 40 lbs (18.1 kg) if mounting an extended arm component.
Page 3 Installation Instructions KTA-1000 TOOLS / PARTS FOR INSTALLATION 1/2" A (1) B (2) 3/8-16 x 6" [5" grommet] 9/16" ASSEMBLY AND INSTALLATION 5. Place pole, provided with array accessory, onto upper grommet (B) aligning threaded hole in pole bottom 1. Locate desired point on surface where mount is to be with threaded end of 3/8-16 x 6"...
