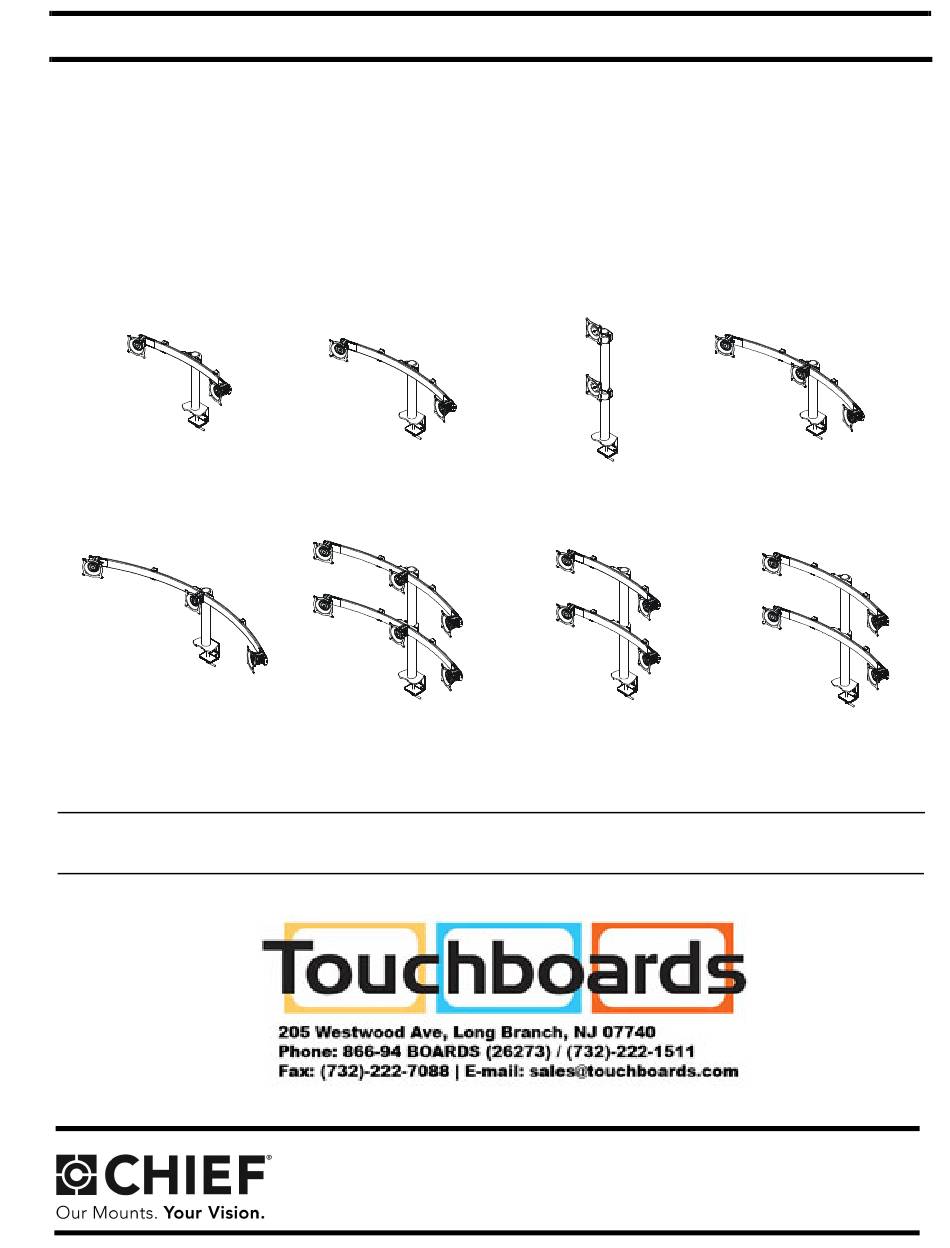

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation KTC-225 KTC-220 KTC-320 KTC-230 KTC-325 KTC-330 KTC-440 KTC-445 Horizontal and Vertical Desk Clamp Stands...
-
Page 2: Installation Instructions
Do not use this product outdoors. no responsibility for accuracy, completeness or sufficiency of the information contained in this document. --SAVE THESE INSTRUCTIONS-- Chief® and Centris™ are registered trademarks of Milestone AV Technologies. All rights reserved. IMPORTANT SAFETY INSTRUCTIONS! WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions. - Page 3 Installation Instructions KTC SERIES DIMENSIONS 13.68 KTC-220 347.4 2.25 3.63 57.2 92.1 5.88 149.2 23.83 605.4 1.96 49.8 1.90 13.25 48.3 336.6 3.75 95.3 .50 [12.7] MIN 3.00 [76.2] MAX 2.75 69.9 KTC-225 17.24 2.25 437.8 3.63 57.2 92.1 6.87 174.6...
- Page 4 KTC SERIES Installation Instructions DIMENSIONS - CONTINUED 3.63 KTC-230 92.1 3.26 82.7 2.25 57.2 5.50 139.6 1.90 29.75 755.6 3.75 95.3 .50 [12.7] MIN 2.75 3.00 [76.2] MAX 69.9 KTC-320 3.63 92.1 2.25 20.80 57.2 528.3 8.13 206.5 37.14 943.3 1.96 49.8 13.25...
- Page 5 Installation Instructions KTC SERIES DIMENSIONS - CONTINUED KTC-325 3.63 92.1 2.25 26.90 57.2 683.4 10.51 [267.0] 47.70 [1211.6] 1.96 49.8 13.25 1.90 336.6 48.3 3.75 95.3 .50 [12.7] MIN 3.00 [76.2] MAX 2.75 69.9 KTC-330 20.80 528.3 3.63 2.25 92.1 57.2 8.13 206.5...
- Page 6 KTC SERIES Installation Instructions DIMENSIONS - CONTINUED KTC-440 13.68 347.4 3.63 2.25 92.1 57.2 5.88 149.2 23.83 605.4 1.96 27.25 49.8 692.2 3.75 95.3 .50 [12.7] MIN 2.75 3.00 [76.2] MAX 69.9 KTC-445 17.24 437.8 3.63 2.25 92.1 57.2 6.87 174.6 30.51 774.8...
- Page 7 Installation Instructions KTC SERIES LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
- Page 8 KTC SERIES Installation Instructions Table 1: Monitor Limits MONITOR LIMITS By MODEL DESCRIPTION Weight 35 lbs 35 lbs 35 lbs 20 lbs 15 lbs. 15 lbs 20 lbs 15 lbs Max Screen Width 22.7" 30" 18" 24.5" 18" 22.7" 30" Max Screen Height 28"...
-
Page 9: Tools Required For Installation
Installation Instructions KTC SERIES TOOLS REQUIRED FOR INSTALLATION 5/32” 3/16” 7/32” (included) (included with 230 model only) (included) PARTS (REFER TO TABLE 2 FOR QUANTITIES) [Pole mount assembly] [Triple array assembly] [Dual array assembly] 28" 8" 14" [Desk clamp] 7/32” 3/16”... -
Page 10: Installation
KTC SERIES Installation Instructions INSTALLATION Desk Clamp Installation NOTE: In order to reduce the chance of scratching to the mounting surface, bumpers may be installed. However, installation of bumpers is optional. Remove adhesive from underside of bumpers (H). Attach bumpers (H) to underside of desk clamp (D). (See Figure 1) (H) x 6 (behind desk) -
Page 11: Mount Assembly
Installation Instructions KTC SERIES Mount Assembly KTC-220, 225, 320, 325, 330, 440 and 445 Assembly Assemble pole clamp back (M) to pole mount front using KTC-230 Assembly two washers (X) and two 1/4-20 x 3/4” button head cap screws (U) using a 5/32” hex key (J). (See Figure 6) Place front pole clamp with Centris Head (C) against pole (G) in approximate mounting location. - Page 12 KTC SERIES Installation Instructions Attach Centris Head to Recessed Mount Display NOTE: Refer to Table 1 to select the applicable screw and (P) x 2 spacer combination. Uninstall end lock using the 5/32” hex key (J). (See Figure Slide Centris head off array rail. (See Figure 11) Centris Head Square Nut Display...
-
Page 13: Display Adjustment
Installation Instructions KTC SERIES Array Rail (Q or R) x 4 End Lock Centris Head (S or T) x 4 Centris Head End Lock Retaining Screw Figure 14 Display ADJUSTMENTS Display Adjustment Figure 12 The KTC Series mount allows horizontal, pitch, and rotational adjustment of each display. -
Page 14: Cable Management
KTC SERIES Installation Instructions Display Pitch and Roll Adjustment To adjust display pitch or roll position: Loosen Centris bracket front adjustment knob. (See Figure Tilt display up or down, or adjust display roll left or right until properly positioned. Tighten Centris bracket front adjustment knob. Pitch/Roll Adjustment Knob... - Page 15 Installation Instructions KTC SERIES...
- Page 16 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
