INSTALL SECURITY PIVOT BOLTS

Perform the applicable procedure to replace the regular
pivot bolts with security pivot bolts. You will need the
security hex keys (provided) to complete the installation.

Install 4-inch Security Pivot Bolts

For swing arm models, replace the standard pivot bolts
with security pivot bolts, as follows:
NOTE: Do not remove the display (not shown) from the
Centris mount.
1. Verify that you have the correct parts.
2. Remove the 4-inch pivot bolt from the Centris mount.
Exercise care to retain the other parts shown in
Figure 4.
3. Install the 4-inch security pivot bolt (10) at the
Centris mount. Make sure the other parts are
installed in place as shown in Figure 4.
4. Repeat Steps 2 and 3 to install the second
4-inch security pivot bolt (10) into the other end of
the mount.

Install 5-inch Security Pivot Bolts

For lift arm models, replace the standard pivot bolts with
security pivot bolts, as follows:
NOTE: Do not remove the display (not shown) from the
Centris mount.
1. Verify that you have the correct parts.
2. Remove the 5-inch pivot bolt from the Centris mount.
Exercise care to retain the other parts shown in
Figure 5.
3. Install the 5-inch security pivot bolt (20) at the
Centris mount. Make sure the other parts are
installed in place as shown in Figure 5.
4. Repeat Steps 2 and 3 to install the second
5-inch security pivot bolt (20) into the other end of
the mount.

Install 4-inch and 5-inch Security Pivot Bolts

For models that have both 4-inch and 5-inch pivot bolts,
do the following:
NOTE: Do not remove the display (not shown) from the
Centris mount.
1. Verify that you have the correct parts.
2. Remove and replace the regular pivot bolt with the
applicable security pivot bolt (see Figure 5).
Centris
Mount
Nut

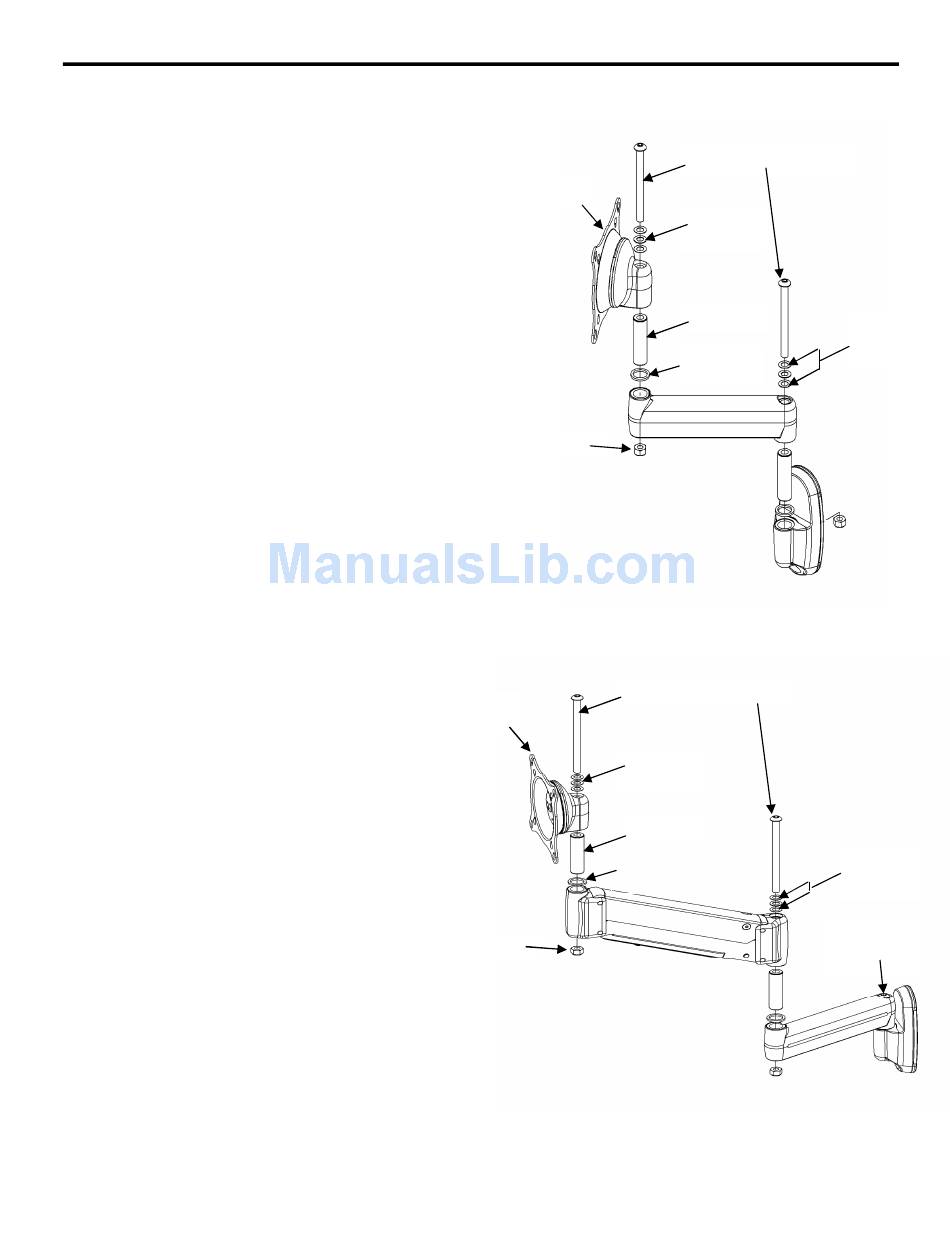

Figure 4. Install 4-inch Security Pivot Bolt
