CHIEF CM7 Specification Sheet

CM7 autoMated
TM
swing arM Mount
new!
More Mounts in Motion!

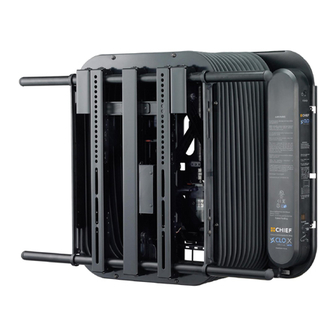

A new Cinematic Series addition, the CM7 swing
™
arm mount provides automated positioning at the
touch of a button!

Control Box

– Removable for easy access with a selector
switch and LED to select TV size
Cable Management
– AV wires and cords are concealed by
routing them through the enclosure

Programmed Flat Panel Size

– Able to select TV size (40", 50" or
60") to limit movement, protecting
wall and TV

IR Remote Control

– Comes standard with two preset buttons
to remember the favorite positions.
CH I EF MAN UFAC T U RI NG
U S A / IN TER NATI oN AL
C H IE F M oUN TS C ANA D A
M IL ES ToN E EURo PE b .V.
MILESToNE ASIA PACIFIC LTD.
©2008 Milestone AV Technologies Inc. Printed in the USA. 700083b 1/08. Chief is a registered trademark of Milestone AV Technologies Inc. All other brand names or
marks are used for identification purposes and are trademarks of their respective owners. All patents are protected under existing designations. other patents pending.
PRO AV
A DIVISIoN oF MILESToNE AV TECHNoLoGIES INC.
n
P 800.582.6480/952.894.6280
n
n P 877.345.4329 n F 888.377.5314
n P 31 (0)40 266862 0 n F 31 (0)40 2668615
n P 86 755 8996 9226 n
HOME ENTERTAINMENT
Chief now offers the CM7
™
Systems, within its line of Cinematic automated mounting solutions.
Designed for 40-63" flat panel TVs weighing up to 180 lbs (81.6 kg),
the CM7 provides ultra-smooth movement. This low-profile
mounting solution extends from the wall and swivels left and right
with automated tilt, all via remote control!
Low Profile

Features

Universal IR Remote Control
n
Mounts directly to studs for easy on-wall installation
n
Sits flush against the wall at 4.6" (117 mm)
n
12" (305 mm) smooth extension
n
IR Remote Control (with 2 presets) or RS232 Interface
n
Hidden Cable Management
n
Mechanism protected by decorative cover for a finished look
n
UL and TUV Listed
n
1 Year Manufacturer Warranty (parts & labor)
n

Dimensions (HxWxD)

22.64" (575 mm) x 26.57" (675 mm) x 4.6–12" (117–305 mm)
TV Width
40–44.9" (102–113 cm)
45–48.9" (114–123 cm)
49–55.9" (124–140 cm)
56–61" (142–155 cm)
F 877.894.6918/952.894.6918
n
n info@chiefmounts.ca
n europe@milestoneav.com
F 86 755 899 6 92 17 n as i apa c if i c @mi le s t o ne av .c o m
Swing Arm Mount, backed by CLO
Extend & Swivel
Tilt
Tilt/Swivel Range
+7˚/-20˚, 28˚ left/right
+7˚/-20˚, 26˚ left/right
+7˚/-20˚, 23˚ left/right
+7˚/-20˚, 19˚ left/right
www.chiefmfg.com
