Warnings!
Watch out for the scratches that may be caused by the cabinet, chassis or rails.
Be aware of electric shock when installing the servers into the cabinet in use.
●
DO NOT block the vents on the server during installation, especially the vents on
the front and rear of the server.
●
Remove the protective film from the chassis before installing servers into the rack.
●
For proper ventilation, leave a minimum space of 15 cm between two servers.
●
For easy access of the front and rear ports and cabling, leave a minimum space of
70 mm between the front side of the server and the inner side of the cabinet's front
door, and 150 mm between the rear side of the server and the inner side of the
cabinet's rear door.
●
Always keep the air ba es in place to ensure proper air flow and avoid air
turbulence in the server room.
●
Installation must comply with local and regional electrical regulations. To reduce
the risk of personal injury, fire, or damage to the server, DO NOT overload the AC
supply that provides power to the rack.
●
Servers can only be deployed in dedicated cabinets with ventilation holes or
specialized cooling cabinets to avoid server failure from overheating as they are
high power appliances.
●
In case of multiple-server deployment, always load from bottom to top and place
the heavier server on the lower bay.
●
DO NOT install devices beyond the cabinet's load-bearing capacity, power supply
capacity and heat dissipation capacity.
For devices ≥ 15 kg, it requires at least 2 people.
15kg
For devices ≥ 30 kg, it requires at least 3 people.
30kg
For devices ≥ 50 kg, it requires at least 4 people.
50kg
请保留本文档，以便于日后查阅。

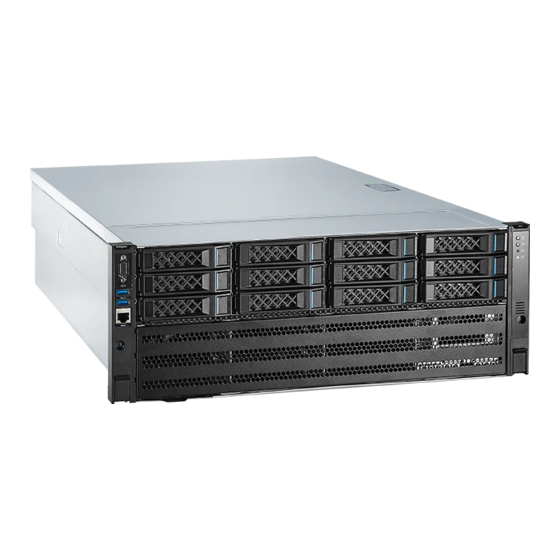

Rack-Mounted Server
Installation Guide
V1.0
Advertisement
Table of Contents
Related Manuals for Inspur NF5468M6
Summary of Contents for Inspur NF5468M6
- Page 1 Warnings! Watch out for the scratches that may be caused by the cabinet, chassis or rails. Be aware of electric shock when installing the servers into the cabinet in use. ● DO NOT block the vents on the server during installation, especially the vents on the front and rear of the server.
- Page 2 Rack-Mounted Server Installation Guide V1.0 Installing the Rails to the Rack Align and attach the keyholes of the inner rail to the stando s on the side of the Insert the pins as indicated by the arrow until the pins are fully engaged. server, and then slide the inner rail toward the rear of the server to the locked The rails are intended for square hole racks (9.2*9.2 mm, 9.5*9.5 mm) and round hole position.
- Page 3 Rack-Mounted Server Installation Guide V1.0 Front&Rear End of the Rail Installing Server Install the rear end of the rail to the cabinet. Pull the extended bracket. Keep the front and rear ends on the same level.①Press the rear of the latch to open it. ②Align the guide pins on the rear end of the rail with the rack holes, push the rail in the direction of the Lift the server and place its rear end on the rails first, and then push the arrow, and release the latch to lock it to the rack.
