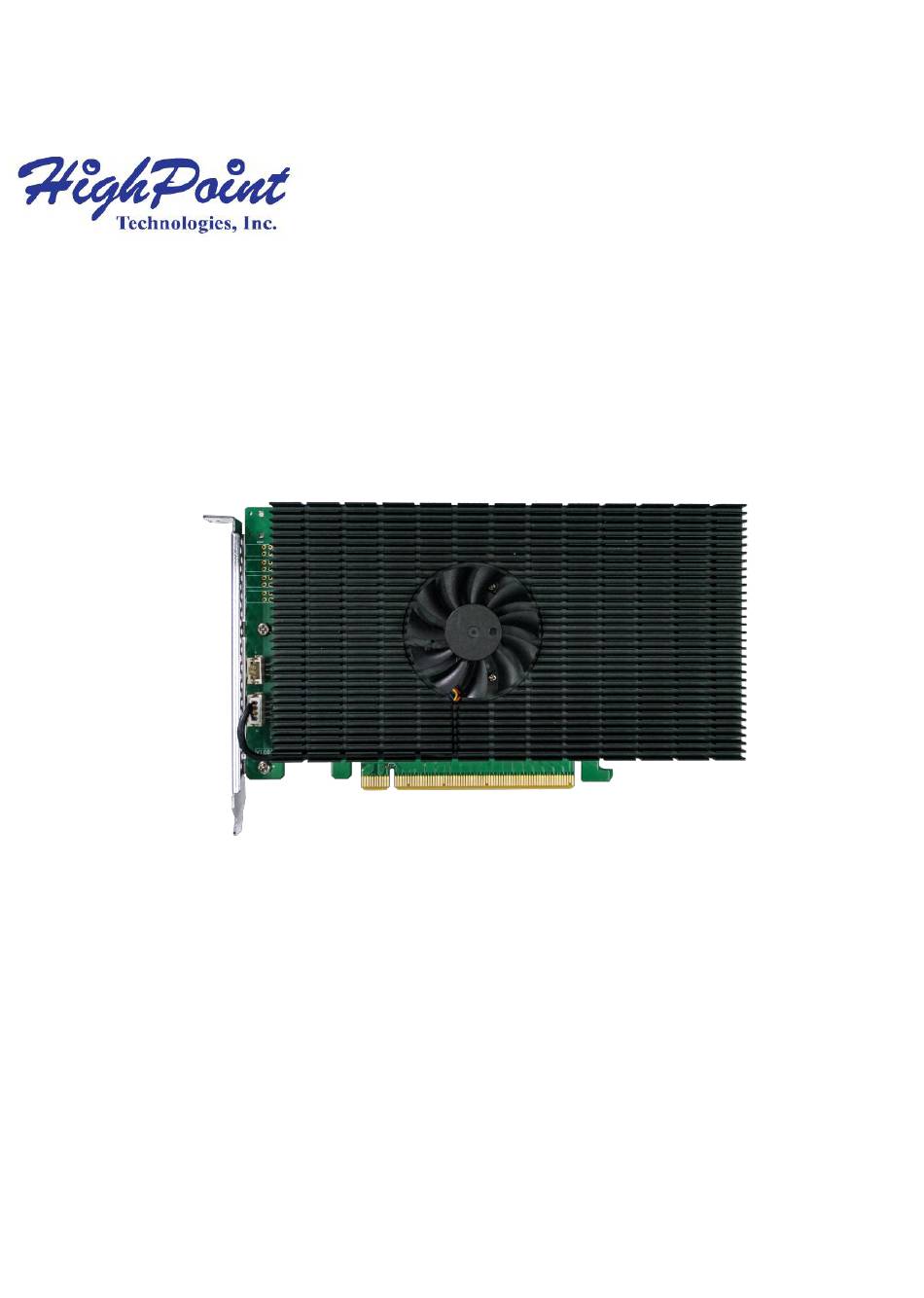

- Page 1 SSD7104F 4x M.2 Port to PCIe 3.0x16 NVMe RAID Controller Quick Installation Guide V1.00...
-
Page 2: System Requirements
System with a free PCIe3.0 (or 4.0) x16 slot Windows 10, Windows Server 2016 and Windows Server 2019 Linux kernel 3.10 and later MacOS 10.13 and later SSD7104F Kit Content SSD7104F Controller Card Quick Installation Guide ... - Page 3 SSD7104F Hardware Front View Full-length black anodized, fan-less heatsink Low-Noise Cooling Fan PCIe x16 host interface with Smart...
- Page 4 SSD7104F Hardware Installation Step 1. On the rear of the SSD7104F, remove the six screws that secure the unit’s heat sink to the PCB. After removing the screws, carefully remove the heat sink from the SSD7104F. Step 2. After removing the casing, carefully turn it over to view the thermal pad.
- Page 5 Step 3. These 4 screws are used to install the NVMe SSD’s The SSD7104F can support any M.2 form factor (2242, 2260, 2280, and 22110). Step 4. Please remove the screws on the right side of SSD7104F Step 5. Gently insert the SSD into the slot.
- Page 6 Note: Please make sure all disks are clean before you insert them into the slot to avoid unexpected situations. Step 6. Refasten the screw to secure the SSD. Repeat Steps 4 to 6 to install the remaining SSD. Note: Make sure the SSD’s are carefully, but securely installed into each M.2 port.
- Page 7 Step 7. Replace the heat sink after installing all SSDs Step 8. On the rear of the SSD7104F, refasten the six screws that were removed in step 1. Note ： Make sure the aluminum cover is properly aligned with the controller board (PCB), and that it makes full contact with the thermal pad, before refastening it to the SSD7204.
- Page 8 In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. Software Download: SSD7104F Driver, WebGUI, Installation Guide https://highpoint-tech.com/USA_new/series-ssd7104-download.htm Other Reference Information: Motherboard & NVMe SSD Compatibility List SSD7104F User Guide – How To Set Up & Monitor RAID Array https://highpoint-tech.com/USA_new/series-ssd7104-resource.htm...
-
Page 9: Customer Support
Customer Support If you encounter any problems while utilizing the SSD7104F drive, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/websupport/ HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
