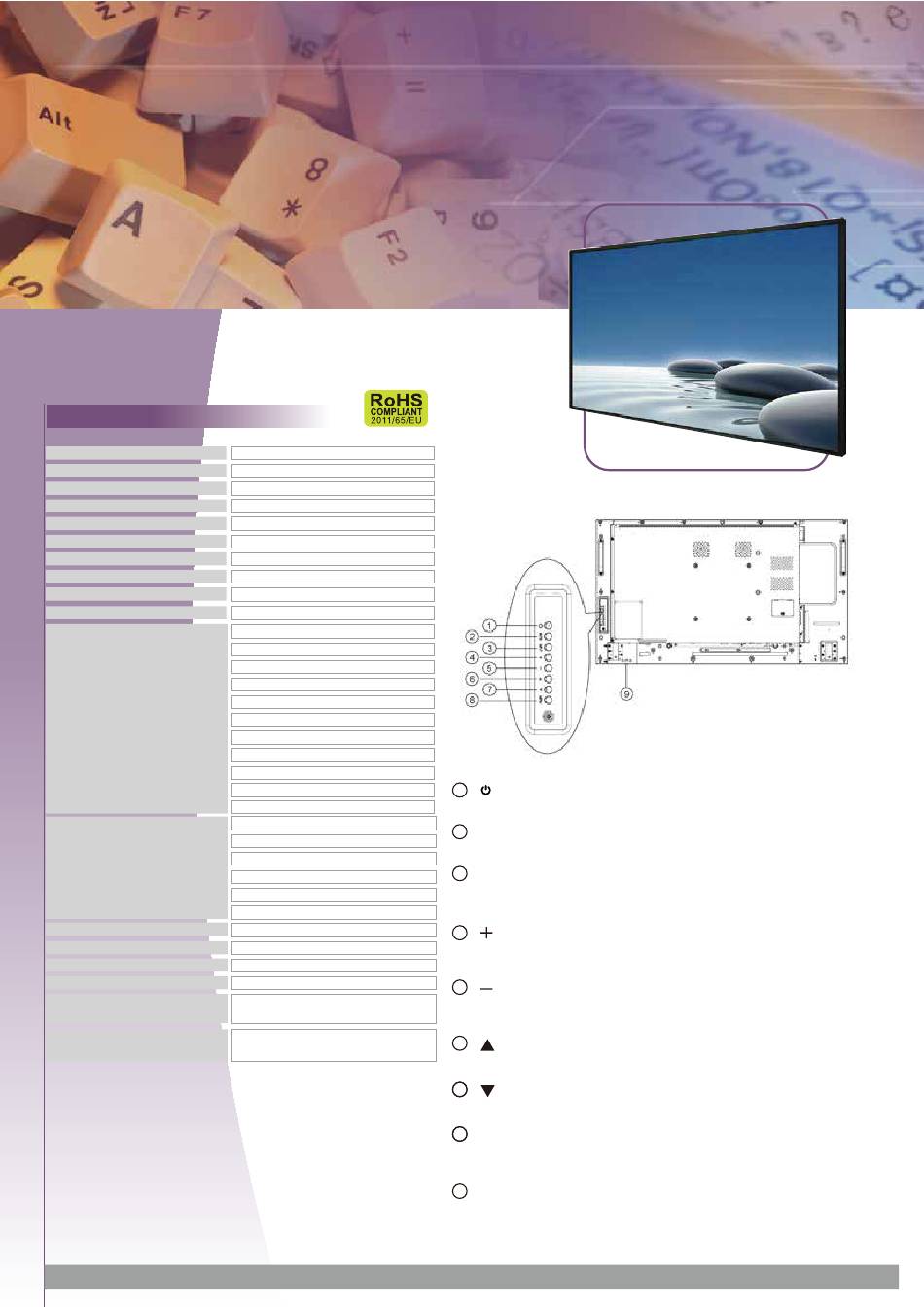

Winmate DS424PMB Quick Start Manual

Industrial Grade Chassis Monitor
42"(16:9)
S S pecifications
Model Name
Viewable Size Image
Active Display Area(mm)
Pixel Pitch(mm)
Number of Pixels
Contrast Ratio
Display Color
Brightness(cd/m )
Viewing Angle(CR>=10)
Recommended Resolution
Input Signal
Output Signal
Internal Speaker
Power Source
Operating Temperature
Operating Humidity
Dimension(mm)
VESA compatible arm
mounting interface
Note: All Specifications are subject to change without prior notice!
W42L100-OML2
42" (16:9)
930.24 (H) x 523.26 (V)
0.4845 x 0.4845
1920 x 1080
1300:1(typ.)
1073M
500(typ.)
-89~89(H);-89~89(V)
1920 x 1080 @ 60Hz
1 x DVI
2 x HDMI
1 x Display Port
1 x VGA
1 x Component (YPbPr)
1 x Audio in
1 x Line in
1 x USB
1 x IR in
1 x LAN
1 x RS232
1 x DVI
1 x Display Port
1 x Line out
1 x speaker out
1 x IR out
1 x RS232
10W + 10W
AC100~240V, Universal, 10%
0~50 deg.C
20~80% (without condensation)
946.94(W) x 540.96(H) x 56.8(D)
(without handle)
200 x 200 mm
Industrial Grade Chassis
DS424PMB/DS424PMC:
1 [ ] Power Button
Use this button to turn the display in or put the display to standby
2 [MUTE] MUTE Button
Switch the audio mute ON/OFF
3 [INPUT] Input Button
• Use this button to select the input source.
• When the On Screen Display menu is active, this is also used as the [SET] button.
4 [ ] Button
Increase the adjustment while OSD menu is on, or increase the audio output
level while OSD menu is off.
5 [ ] Button
Decrease the adjustment while OSD menu is on, or decrease the audio output
level while OSD menu is off.
6 [ ] Button
Move the highlight bar up to adjust the selected item while OSD menu is on.
7 [ ] Button
Move the highlight bar down to adjust the selected item while OSD menu is on.
8 [MENU] MENU Button
Return to previous menu while OSD menu is on, or to activate the OSD menu
when OSD menu is off.
9 Remote control sensor and power status indicator
• Receives command signals from the remote control.
• Indicates the operating status of the display
Monitor
Revised date: 20-Dec-2019 V1.3
