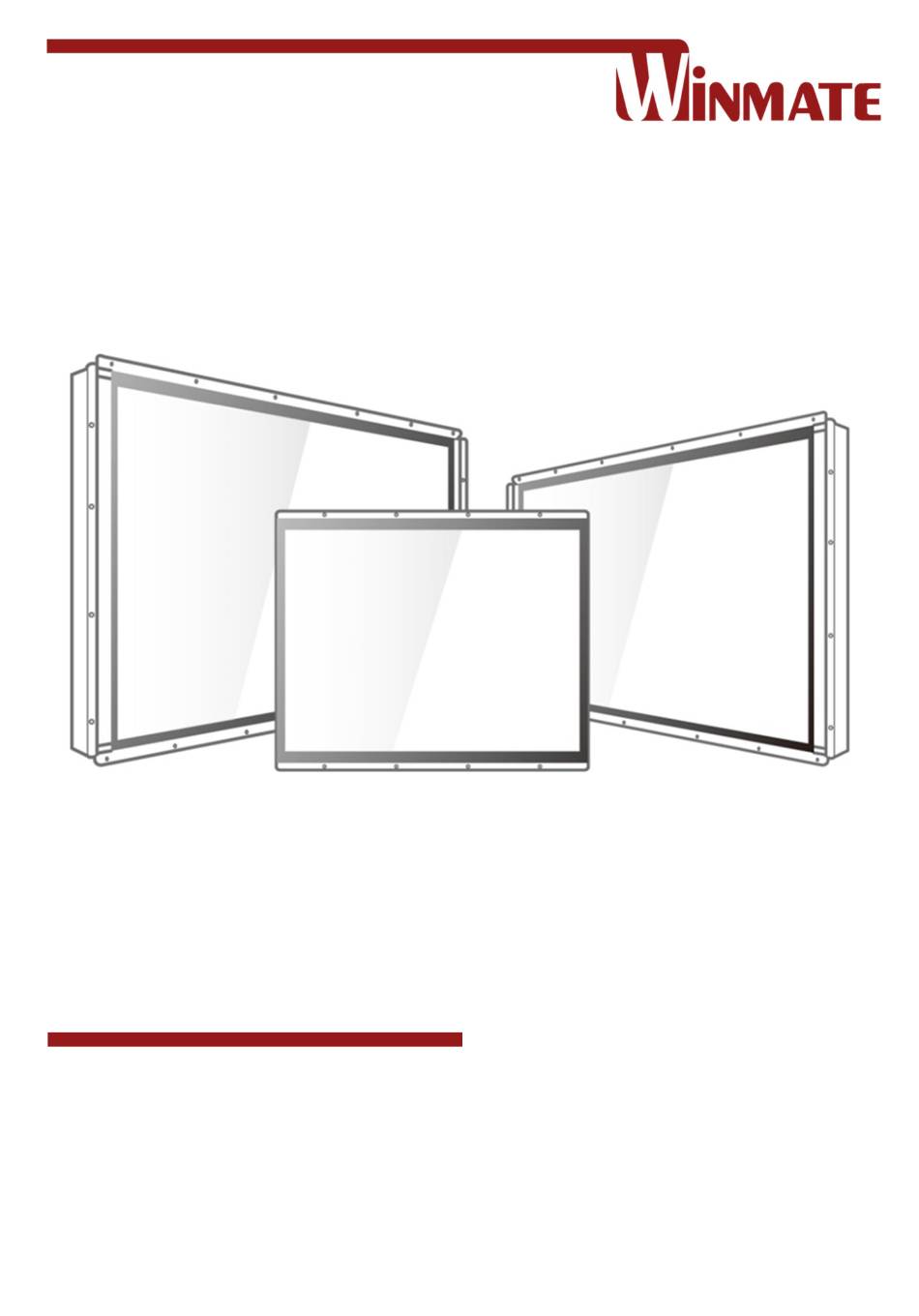

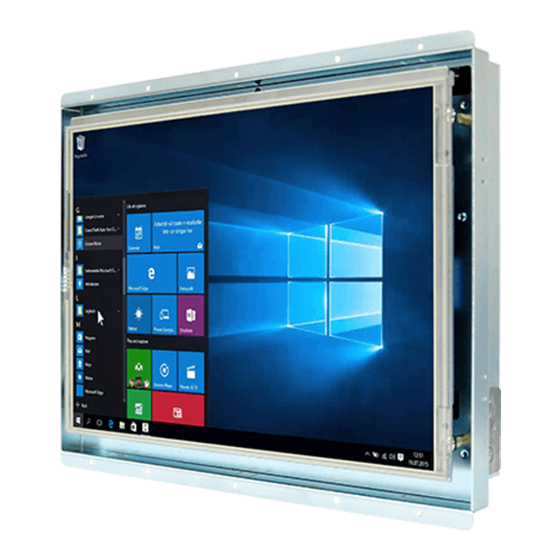

- Page 1 Open Frame Display 5.7”~55” User Manual Version 1.5 Document Part No. 91521110101E Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
5.7"~55" Open Frame Display User Manual Contents Preface ........................... 3 About This User Manual ....................5 Chapter 1: Introduction ....................6 1.1 Overview ......................7 1.2 Product Features ....................7 1.3 Package Contents ....................7 1.4 Product Overview ....................8 1.5 Connector Description .................. -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 5.7"~55" Open Frame Display User Manual Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory.
-
Page 5: About This User Manual
This User Manual provides information about using the Winmate® Open Frame Display. The documentation set provides information for specific user needs, and includes: Open Frame Display User Manual – contains detailed description on how to use the display, its components and features. -
Page 6: Chapter 1: Introduction
5.7"~55" Open Frame Display User Manual Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the display device in the packing list. Connector description included in this chapter. -
Page 7: Overview
Part No. 9B0000000418 *Notice: Screw bolts provided by Winmate only to be used to screw the display onto a console from the rear side. If you prefer your own bolts, please make sure to use M4 and 30mm in length. -
Page 8: Product Overview
5.7"~55" Open Frame Display User Manual 1.4 Product Overview This section describes physical appearance of the Open Frame Display. Note: Notice that standard input terminals include VGA and HDMI. Your device may be equipped with other input terminals based on your order. -
Page 9: Connector Description
Chapter 1: Introduction 1.5 Connector Description Display input and output connectors are located on the bottom side. Notice that input and output connectors may vary by product size and specifications. Item Description Power Jack – Connects computer to source of power. USB for Touch - Connects USB for touch capabilities. -
Page 10: Osd Control Panel
5.7"~55" Open Frame Display User Manual 1.6 OSD Control Panel 1.6.1 OSD Control Panel Location The location of the OSD control panel may vary by model. Please refer to product datasheet for more details. 1.6.2 Control Buttons OSD control panel varies by product specifications. Refer to a product datasheet to check the OSD control panel type of a particular model. - Page 11 Chapter 1: Introduction Type B Buttons Icon Function Decrease the value / Select up Increase the value / Select down Power switch Select left / Exit / Auto adjustment Auto Select right / Call main OSD menu / Enter Menu LED Indicators Description Icon...
-
Page 12: Brightness Adjustment Knob
5.7"~55" Open Frame Display User Manual LED Indicators Description Function Power Lights up in "Green" when the monitor turn on Stand by Lights up in "Orange" when the device cannot detect any input source Type D Buttons Icon Function Exit / PIP... -
Page 13: Chapter 2: Installation
Chapter 2: Installation Chapter 2: Installation This chapter provides hardware installation instructions and mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages... -
Page 14: Wiring Requirements
éviter le risque de blessure. 2.2.1 Panel Mount The Open Frame Display Series comes with clamp mounts that enable you to install the unit onto a wall (where space has been cut out to accommodate the rest of the hardware). -
Page 15: Vesa Mount
❸ ❹ 2.2.2 VESA Mount The Open Frame Display Series comes with VESA mount holes for mounting. Notice that VESA stand and mounting kit are not provided by Winmate. Installation Instruction: 1. Screw VESA bracket to the fixture (ex. swing arm) with four VESA screws. -
Page 16: Cable Mounting Considerations
Attention Éteindre l’appareil et débrancher tous les périphériques avant l’installation. 2.4 Connecting Power This section provides information on how to use connectors on the Open Frame Display. Be cautious while working with these modules. Please carefully read the content of this chapter in order to avoid any damages. -
Page 17: Connecting Peripherals
2.5.1 VGA Connector The Open Frame Display Series uses standard 15pin D-sub connector. Plug 15-pin VGA signal cable to the VGA connector in the rear of motherboard, and plug the other end to the monitor. Secure cable connectors with hexagonal copper pillars M3x4mm. -
Page 18: Hdmi Connector
5.7"~55" Open Frame Display User Manual 2.5.3 HDMI Connector Plug HDMI signal cable to the HDMI connector on the rear side of PC system, and plug the other end to the monitor. Pin assignment and signal names of HDMI connector Pin №... -
Page 19: Composite Video Connector
Chapter 2: Installation 2.5.6 Composite Video Connector Use composite video cable to connect composite video input. Pin assignment and signal names for Composite Video connector Pin № Signal Name Pin № Signal Name Composite Video Signal 2.5.7 Display Port Connector Use Display Port cable to connect your TFT LCD display to the external PC system. -
Page 20: Chapter 3: Operating The Device
5.7"~55" Open Frame Display User Manual Chapter 3: Operating the Device In this chapter you will find instructions on how to operate the display. -
Page 21: Turning On The System
Chapter 3: Operating the Device 3.1 Turning on the System To turn on the system: 1. Connect the power adapter cable to the DC IN of the display. 2. Connect the power cord to the power adapter. 3. Connect the power cord to a power outlet. 4. -
Page 22: Osd Menu Navigation
5.7"~55" Open Frame Display User Manual 3.2 OSD Menu Navigation The OSD menu varies based on your OSD control panel. For 5 Key OSD Control Panel Type A Type B OSD Icon Sub-menu Settings Note BRIGHTNESS slider bar Default 50 Use to adjust the screen’s brightness. - Page 23 Chapter 3: Operating the Device OSD Icon Sub-menu Settings Note USER R.G.B slider bar Default USER Choose RED/GREEN/BLUE to set value of color temperature brightness to suit your own preference 9300K Select and execute Use to set value of display for the CIE coordinate 9300 color temperature 6500K Select and execute COLOR...
- Page 24 5.7"~55" Open Frame Display User Manual For 8 Key OSD Control Panel Type C Type D OSD icon Sub-menu Settings Note BRIGHTNESS slider bar Adjusts the overall image and background brightness. Press “ ” or “ ” to adjust. CONTRAST slider bar Adjusts the image brightness in relationship to the background.
- Page 25 Chapter 3: Operating the Device OSD icon Sub-menu Settings Note AUTO SETUP PRESS YES TO AUTO SETUP *VGA CHANNEL ONLY Automatically adjusts screen size, H position, V position, Clock, Clock Phase AUTO ADJUSTMENT ON/OFF *VGA CHANNEL ONLY H Position, V Position and Clock Phase are adjusted automatically upon power on. H POSITION slider bar *VGA CHANNEL ONLY...
- Page 26 5.7"~55" Open Frame Display User Manual OSD icon Sub-menu Settings Note OSD TURN OFF slider bar Turns off the OSD after a period of inactivity. The preset choices are 0-60 seconds. H - slider bar OSD POSITION V - slider bar Determines the location where the OSD appears on the screen.
-
Page 27: Troubleshooting Guide
Chapter 3: Operating the Device 3.3 Troubleshooting Guide If your display fails to operate correctly, check the following chart for possible solution before calling for repairs: Condition Check Point Check if the signal cable is firmly seated in the socket. The picture does ... -
Page 28: Appendix
5.7"~55" Open Frame Display User Manual Appendix This chapter contains additional product information, including troubleshooting guide and frequency table... -
Page 29: Appendix A: Resolution Table
Appendix Appendix A: Resolution Table V-VGA, D-DVI, H-HDMI Resolution Support Table 15.6"/18.5"/ 5.7"/ 8"/ 8.4"/ 7"/ 10.4"/ 10.1"/ 15.6"/ 20.1"/ Panel Size 7" 17"/19" 21.5"/23.8"/27"/ 10.1"/ 24" 6.5" 12.1" 10.1" 12.1"/15" 12.1" 18.5" 23.1" 32"/ 42" Panel Native 640x 800x 800x 1024x 1024x... -
Page 30: Appendix C: Product Dimensions
5.7"~55" Open Frame Display User Manual Appendix C: Product Dimensions Dimensions Cutout VESA Model Name (W x H x D, mm) (W x H, mm) (W x H, mm) R05T100-OFD1HB 168.4 x 132.8 x 38.6 mm 152.6 x 134.8 mm R06L200-OFA1 249 x 142.8 x 37.1 mm... - Page 31 Appendix Dimensions Cutout VESA Model Name (W x H x D, mm) (W x H, mm) (W x H, mm) W22L100-OFA3HB 504 x 318 x 60 mm 507 x 303 mm 75 x 75, 100 x 100 mm W24L100-OFA2 576.4 x 343.6 x 58 mm 561.4 x 325.6 mm 75 x 75, 100 x 100, 200 x 100 mm W24L100-OFA2HB...
- Page 32 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
