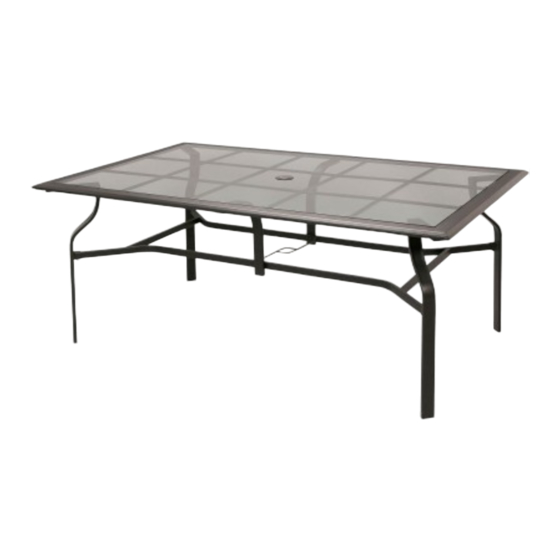

Barcelona Table
Assembly Instructions - Please keep for future reference
Dimensions
Width - 169.5cm
Depth - 106cm
Height - 71cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456400800
For further assistance please visit http://www.argos-support.co.uk/
6545442
Issue 1 -10/11/15
Advertisement
Table of Contents
Related Manuals for Argos Barcelona 6545442
Summary of Contents for Argos Barcelona 6545442
- Page 1 Depth - 106cm Height - 71cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456400800 For further assistance please visit http://www.argos-support.co.uk/ Issue 1 -10/11/15...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Dispose of all packaging carefully and • This product is manufactured from • Keep children and animals away from responsibly. toughened safety glass. In the unlikely the work area, small parts could choke if event that the glass fails it will break in to swallowed.
- Page 3 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. d6.5 x D10 x1.6 M6 x 28mm Bolt x 14 d6.5 x D13 x 1.0 Washer x 14 Spring Washer x 14 Bolt Cap x 14 Components - Parts...
- Page 4 Assembly Instructions Step 1 Remove the glass from the table top Step 2 Place the table top onto a non-abrasive surface, such as a carpet, with its underside facing upwards. Fasten the legs the supports to the underside of the table top rim by using bolts and washers ( Keep the bolts loose.
- Page 5 Assembly Instructions Step 3 Fasten the center connector with ring the middle of the legs by using bolts washers ( ). Keep the bolts loose. Note: The arrow marks on the center connector with ring should coincide with Figure to ensure proper assembly.
- Page 6 It is for glass support! Assembly is completed. If you need help or have damaged or missing parts, call the Customer Helpline: 03456400800 For further assistance please visit http://www.argos-support.co.uk/ Retailer: Argos Address: 489-499 Avebury Boulevard Saxon Gate West, Central Milton Keynes Bucks, MK9, 2NW...
