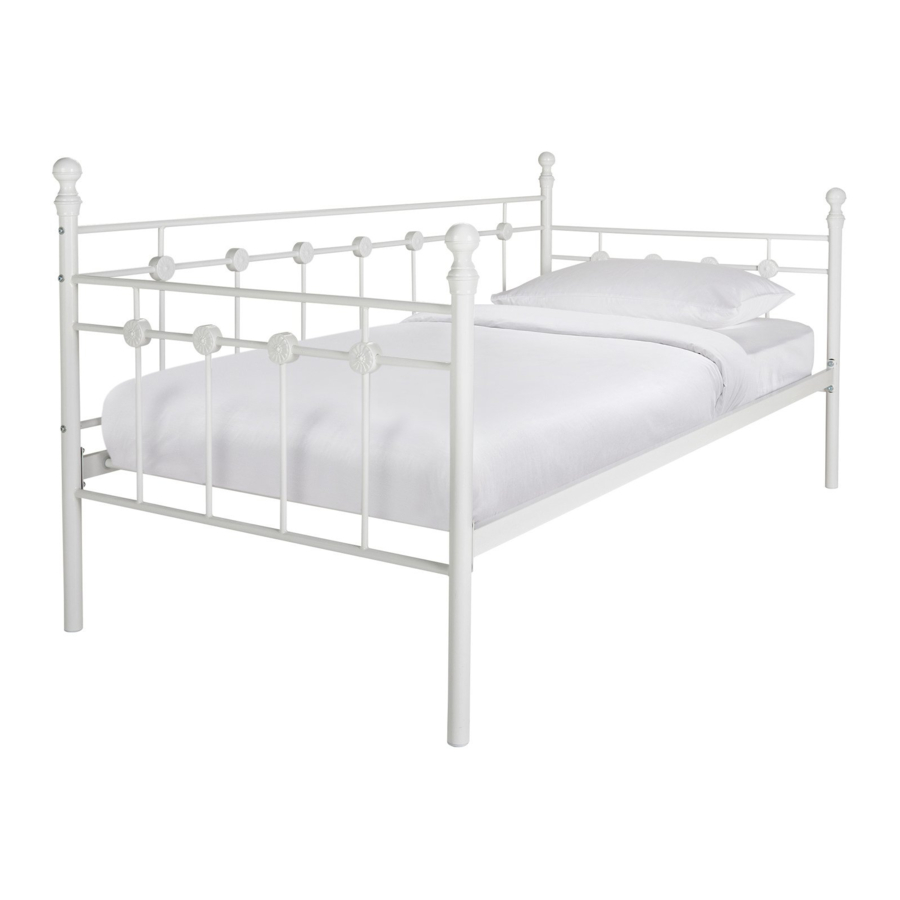

Abigail 3' Day Bed
Assembly Instructions - Please keep for future reference
Dimensions
Width - 204cm
Depth - 96cm
Height - 95cm
Important - Please read these instructions fully before starting assembly
If you need or have damaged or missing parts, call the Customer Helpline:01799 513466
659/4778
Issue 1 - 21/11/09
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Abigail 3
Summary of Contents for Argos Abigail 3
- Page 1 Abigail 3’ Day Bed Assembly Instructions - Please keep for future reference 659/4778 Dimensions Width - 204cm Depth - 96cm Height - 95cm Important - Please read these instructions fully before starting assembly If you need or have damaged or missing parts, call the Customer Helpline:01799 513466...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Make sure you have enough Assemble on a soft level Check you have all the space to layout the parts before surface to avoid damaging the components and tools listed on starting.
-
Page 3: Components - Parts
Components - Parts Please check you have all the parts listed below 2 Right hand panel 1 Back panel (93 x 87 cm) (193 x 42 cm) 3 Side rail x 2 4 Left hand panel (194 x 10 cm) (93 x 87 cm) 5 Slat x 12 (91.3 x 1.9 cm) - Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 01799 513466 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 Assembly Instructions Step 1 Attaching bed frame Two people will be needed here. With help, assemble back panel in between left and right hand side frames using fixings H G J Assemble side rails in between side frames. Secure using fixings Note: Do not fully tighten the fixings! Step 2...
- Page 6 Assembly Instructions Step 3 Attaching finials Screw studs into the tops of side frames Locate finial bases over the studs. Screw finials onto the studs. Assembly is complete. Customer helpline:01799 513466 If you need help for have damaged or missing parts, call the Justwise Group Ltd., 6 The Shires.
- Page 7 Abigail 3' Day Bed Assembly Instructions - Please keep for future reference 659/4778 695/5221 Dimensions Width - 203.5cm Depth - 96cm Height - 95cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
- Page 8 Safety and Care Advice Important - Please read these instructions fully before starting assembly Make sure you have enough Assemble on a soft level Check you have all the space to layout the parts before surface to avoid damaging the components and tools listed on starting.
- Page 9 Components - Parts If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the parts listed below Side frame (Left) x 1 Side frame (Right) x 1 (93.8 x 86.7cm) (93.8 x 86.7cm) Slat x 12 (91.5 x 1.9cm) Side rail x 2...
- Page 10 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 11 Assembly Instructions Step 1 Attaching bed frame Two people will be needed here. With help, assemble side rails in between side frames using fixings Note: Do not fully tighten the fixings! Assemble back panel in between the side frames using fixings...
- Page 12 Assembly Instructions Step 2 Attaching slats Assemble slats to side rails using fixings Fully tighten all fixings from previous steps. Step 3 Attaching finials Screw studs into the tops of side frames Locate finial bases over the studs. Screw finials onto the studs.
