Instruction manual for ceramic hob
Model: C893C
Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C893C and is the answer not in the manual?

Questions and answers

Related Manuals for Caple C893C

Summary of Contents for Caple C893C

  • Page 1 Instruction manual for ceramic hob Model: C893C Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...

  • Page 2: Table Of Contents

    SUMMARY SAFETY ............................3 ......................3 RECAUTIONS BEFORE USING ........................4 SING THE APPLIANCE ................5 RECAUTIONS NOT TO DAMAGE THE APPLIANCE ................5 RECAUTIONS IN CASE OF APPLIANCE FAILURE ........................6 THER PROTECTIONS DESCRIPTION OF THE APPLIANCE ................... 7 ..........................

  • Page 3: Safety

    SAFETY Precautions before using  Unpack all the materials.  The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by installation or connecting errors.  To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.

  • Page 4: Using The Appliance

    Using the appliance  Switch the heating zones off after using.  Keep an eye on the hob whilst cooking using grease or oils that may quickly ignite.  Be careful not to burn yourself while or after using the appliance. ...

  • Page 5: Precautions Not To Damage The Appliance

    Precautions not to damage the appliance  Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.  Sand or other abrasive materials may damage ceramic glass.  Avoid dropping objects, even little ones, on the vitroceramic. ...

  • Page 6: Other Protections

    Other protections  Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.  For the users of pacemaker, the magnetic field could influence its operating.

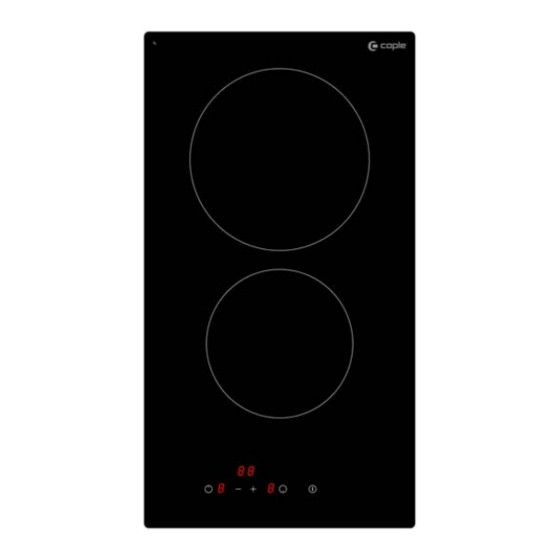

  • Page 7: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE Technical data Type Total power Heating zone location Power Diameter Front 1200 W 155 mm C893C 3000 W Rear 1800 W 190 mm Control panel Power display Timer display [ - ] key [ + ] key...

  • Page 8: Sensitive Touches

    Touch controls Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger touches the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a “beep” sound. Touch only one key on the same time.

  • Page 9: Automatic Cooking

     Automatic stop at the end of the cooking time : As soon as the selected cooking time is finished the timer displays blinking [ 00 ] and a sound rings. To stop the sound and the blinking it is enough to press any key. ...

  • Page 10: Control Panel Locking

    Control panel locking To avoid modifying a setting of cooking zones , in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [  Locking : Action Control panel Display Activate the hob Press key [ [ 0 ] or [ H ]...

  • Page 11: Cooking Advices

    COOKING ADVICE Examples of power setting (The values below are indicative) Sauces, butter, chocolate, gelatine 1 to 2 Melting, Reheating Dishes prepared beforehand Rice, pudding, sugar syrup 2 to 3 Simmering, Defrosting Dried vegetables, fish, frozen products 3 to 4 Steam Vegetables, fish, meat 4 to 5...

  • Page 12: What To Do In Case Of A Problem

    The control panel displays [ U400 ], [ Er25 ]or [ U4 ] :  The hob is not connected to the network. Check the connection and reconnect the hob. If one of the above symbols persists, contact Caple Service either by telephone 0117 938 7420 or email service@caple.co.uk.

  • Page 13: Installation Instructions

    Fitting - installing:  The cut out sizes are: Reference Cut-size C893C 490 x 280 mm  Ensure that there is a distance of 50 mm between the hob and the wall or sides.  The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with plenty of space on either side.

  • Page 14: Electrical Connection

    ELECTRICAL CONNECTION  The installation of this appliance and the connection to the electrical system should be entrusted only to a qualified electrician.  Protection against the parts under tension must be ensured after instalation  The data of connection necessary are on the stickers place on the hob casing near the connection box.
  • Page 16 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk 19651/0...
