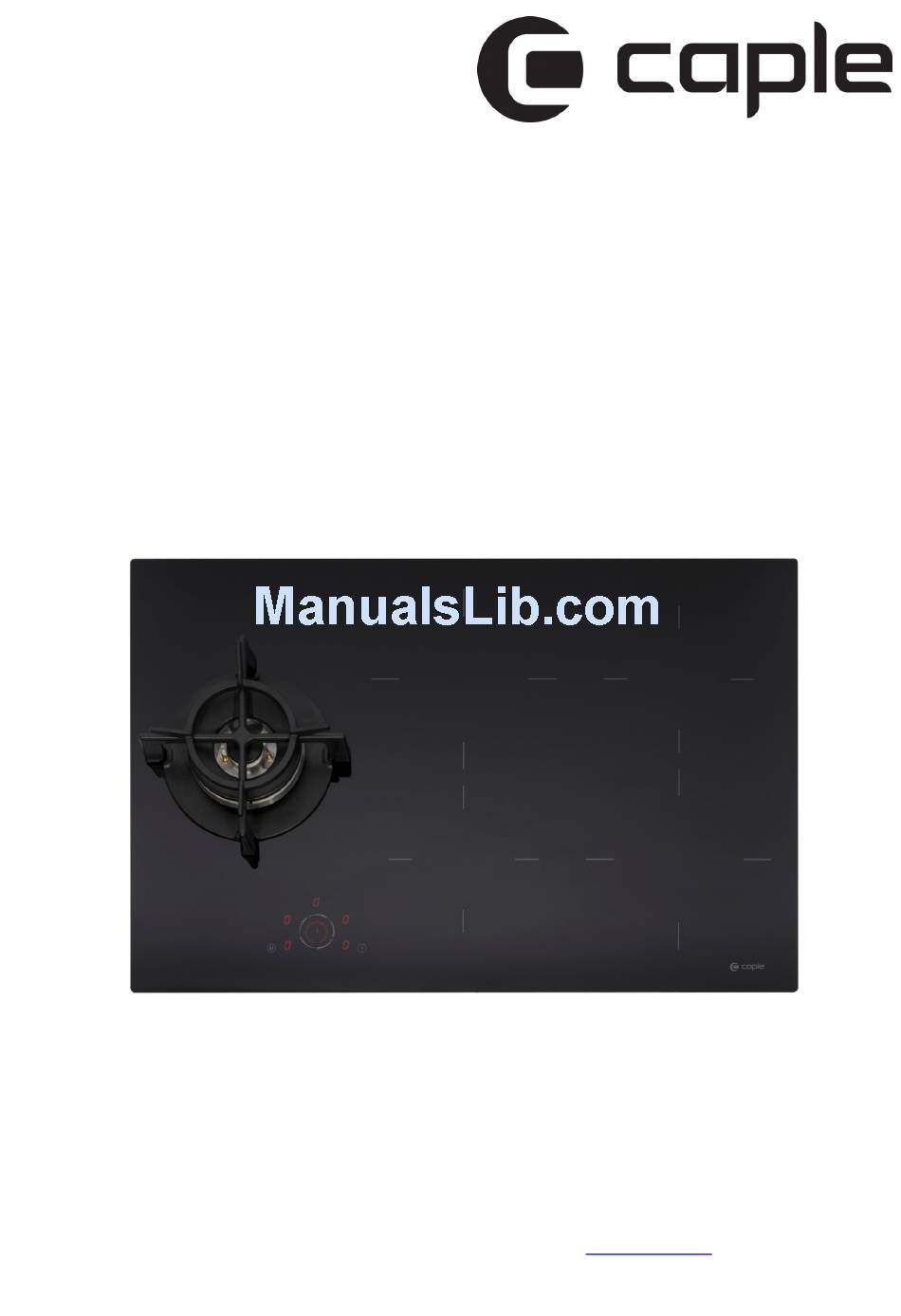

- Page 1 Instruction manual for hob Model code: C896IBK Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
SUMMARY SAFETY ............................3 ......................3 RECAUTIONS BEFORE USING ........................3 SING THE APPLIANCE ................4 RECAUTIONS NOT TO DAMAGE THE APPLIANCE ................5 RECAUTIONS IN CASE OF APPLIANCE FAILURE ..................5 PECIAL PRECAUTIONS RELATED TO GAS ........................6 THER PROTECTIONS DESCRIPTION OF THE APPLIANCE ................... -
Page 3: Safety
SAFETY Precautions before using • Unpack all the materials. • The installation and connecting of the appliance must be done by approved specialists. The manufacturer cannot be held responsible for damage caused by installation or connecting errors. • To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface. -
Page 4: Precautions Not To Damage The Appliance
• Magnetic objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance. • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. •... -
Page 5: Precautions In Case Of Appliance Failure
• If a defect is noticed, switch off the appliance and turn off the electrical supply. • If the ceramic glass is cracked or fissured, you must unplug the appliance and contact Caple service • Repairing has to be done by approved engineers. Do not open the appliance by yourself. -
Page 6: Other Protections
• The use of a gas cooking appliance results in the production of heat, moisture, and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural ventilation open or install a mechanical ventilation device (mechanical extractor hood) •... -
Page 7: Description Of The Appliance

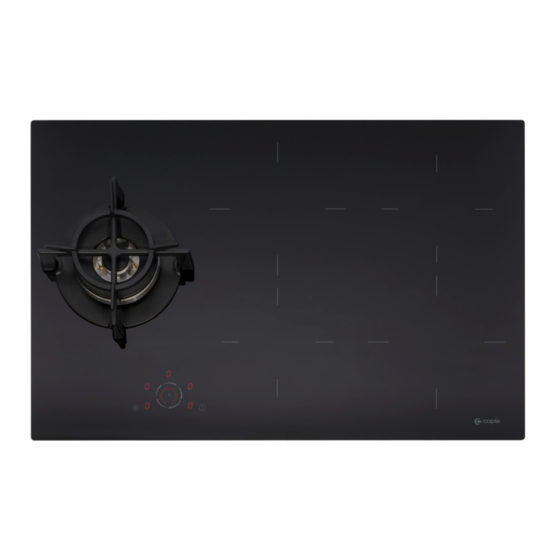

DESCRIPTION OF THE APPLIANCE Technical characteristic Type C896IBK Total power 7400 W Energy consumption for the induction hob EC 175.3 Wh/kg Left heating zone (Gas) DUAL Nominal power* 5000 W Rear middle heating zone Ø 215 mm Minimum detection Ø 100 mm... -
Page 8: Gas Burners
Gas burners Burner Mounting Safety system Each burner is equipped with a safety system It is essential to ensure that all the burner parts (thermocouple) and an ignition system. The and pan supports are properly assembled on ignition starts automatically once a power level the appliance to work correctly. -
Page 9: Control Panel
Control panel Timer display Selection area Power display Timer key Power selection zone “SLIDER” On/off key Stop & Go and timer setting zone USE OF THE APPLIANCE Sensitive touch Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. -
Page 10: Ventilation
Ventilation The cooling system is fully automatic. The cooling fan starts with a low speed when the heat brought out by the electronic system reach a certain level. The ventilation starts at high speed when the hob is intensively used. The cooling fan reduces it's speed and stops automatically when the electronic circuit is cooled enough. -
Page 11: Starting-Up
Starting-up Start up / switch off the hob: Action Control panel Display To start Press key [ [ 0 ] are blinking To stop Press key [ Nothing or [ H ] Start up / switch off a heating zone: Action Control panel Display... -
Page 12: Timer
Power management: The hole cooking hob is equipped by a maximum of power. When the booster function is activated, and not to exceed the maximum power, the electronic system orders to reduce automatically the power level of another heating zone. The display is blinking on [ 9 ] during a few seconds and then shows the maximum of power allowed: Heating zone selected The other heating zone:... -
Page 13: Stop&Go Function
Stop&Go function This function pauses all the hob’s cooking activity temporarily and allows restarting with the same settings. Startup/stop the pause function : Action Control panel Display press [ II ] key displays [ II ] in the Pause during 2s heating zone displays press [ II ] key... -
Page 14: Injector Type For Each Gas
Injector type for each gas After choosing the gas configuration on the user interface you must replace the injectors according to the table below. Outer Injector Inner Injector Injector Burner 20 mbar 28-30 mbar 37 mbar Inner Dual Outer Once you have replaced the injector, the sticker attached with the conversion kit has to be applied on the hob, near the gas supply inlet. -
Page 15: Cooking Advices
COOKING ADVICES Pan quality ( for induction) Adapted materials: steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminum with ferromagnetic bottom. Not adapted materials: aluminium and stainless-steel without ferromagnetic bottom, copper, brass, glass, ceramic, porcelain. The manufacturers specify if their products are compatible with induction. To check if pans are compatibles: •... -
Page 16: Pan Dimension For Gas
Pan dimension for gas The gas combustion requires oxygen. If the pan is too large, the burner and the performance will be reduced. Burner type Required pan dimensions Dual (5 KW) 220-300 mm Examples of cooking power setting (the values below are indicative) 1 to 2 Melting Sauces, butter, chocolate, gelatine... -
Page 17: Cleaning And Maintenance
CLEANING AND MAINTENANCE Switch off the appliance before cleaning. Do not clean the hob when the glass is too hot: risk of burns. • Remove small spots with a damp cloth using washing-up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly. •... -
Page 18: Environmental Protection
The control panel displays [ L ]: Refer to the chapter control panel locking page. The control panel displays [ U ]: Refer to the chapter “Keep warm“. The control panel displays [ II ]: Refer to the chapter “Pause“. The control panel displays [ ] or [ Er03 ] : ... -
Page 19: Installation Instructions
The cut out sizes are: Reference Cut-size C896IBK 750 x 490 mm • Ensure that there is a distance of 50 mm between the hob and the wall or sides. • The hobs are classified as “Y” class for heat protection. Ideally the hob should be installed with plenty of space on either side. -
Page 20: Electrical Connection
ELECTRICAL CONNECTION • The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician. • Protection against the parts under tension must be ensured after installation. • The necessary connection data is on the rating label placed on the hob casing near the connection box. -
Page 21: Gas Connection
GAS CONNECTION These instructions are for qualified technicians, installation of equipment must be in line with the relevant national standard. The main gas inlet of the hob is a G ½ screw thread. To save space you can use a ½ male cylindrical adaptor like on the below picture (not supplied with the hob). - Page 24 CE Declarations of Conformity This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC). Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk 23079-0...
