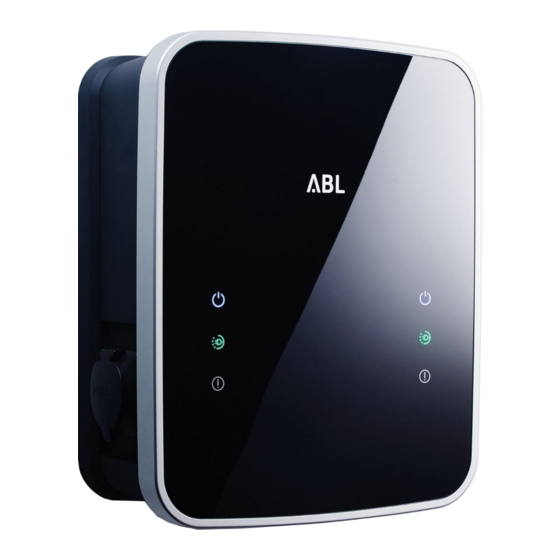

ABL eMH3 TWIN Configuration
Hide thumbs
Also See for eMH3 TWIN:
- Operating manual (264 pages) ,
- Installation manual (66 pages) ,
- Quick start manual (4 pages)
Table of Contents
Advertisement
Quick Links
CONFIGURATION WITH
NEW CONFIGURATION SOFTWARE
GROUP CONFIGURATION eMH3 TWIN
Follow preconditions
1
Press [Continue] button
2
Switch on last extender charging station
3
Wait 15 seconds
4
Press [Automatic Configuration] button
5
Extender charging station is displayed in delivery state (3/4)
6
Extender charging station is shifted to the next available
7
address values (15/16)
Switch on next extender charging station
8
Wait 15 seconds
9
Press [Automatic Configuration] button
10
Extender charging station is displayed in delivery state (3/4)
11
Extender charging station is shifted to the next available address
12
values (13/14)
Switch on controller charging station (only RCCBs!)
13
ABL SURSUM
Bayerische Elektrozubehör GmbH & Co. KG
1 - 2
Albert-Büttner-Straße 11
D-91207 Lauf / Pegnitz
Tel. +49 (0) 9123 188-0
Fax +49 (0) 9123 188-188
info@abl.de
R 20210617
www.ablmobility.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ABL eMH3 TWIN
Summary of Contents for ABL eMH3 TWIN
- Page 1 CONFIGURATION WITH NEW CONFIGURATION SOFTWARE GROUP CONFIGURATION eMH3 TWIN Follow preconditions Press [Continue] button Switch on last extender charging station Wait 15 seconds Press [Automatic Configuration] button Extender charging station is displayed in delivery state (3/4) Extender charging station is shifted to the next available...
- Page 2 CONFIGURATION WITH NEW CONFIGURATION SOFTWARE GROUP CONFIGURATION eMH3 TWIN Wait 15 seconds Press [Automatic Configuration] button Controller charging station is displayed in delivery state (1/2), RFID address value stays empty Controller charging station is shifted to the next available address values (11/12)
