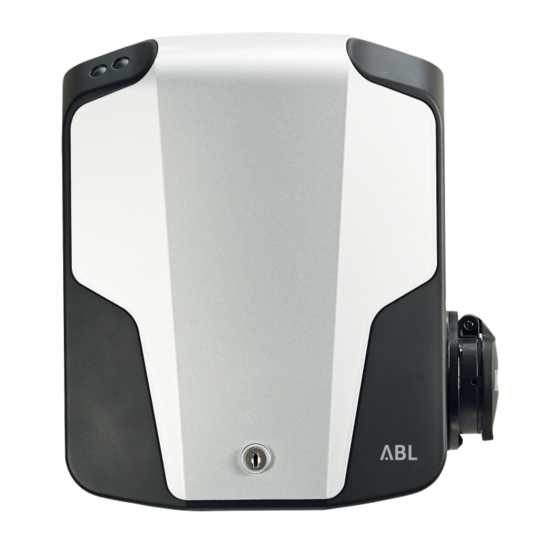

ABL eMH1 Instruction Manual

Wallbox with charging socket
Hide thumbs Also See for eMH1:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual , Installation Manual
eMH1
WALLBOX
with socket
Instruction Manual
VERSION: 5X2-2016-07-15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eMH1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABL eMH1

Summary of Contents for ABL eMH1

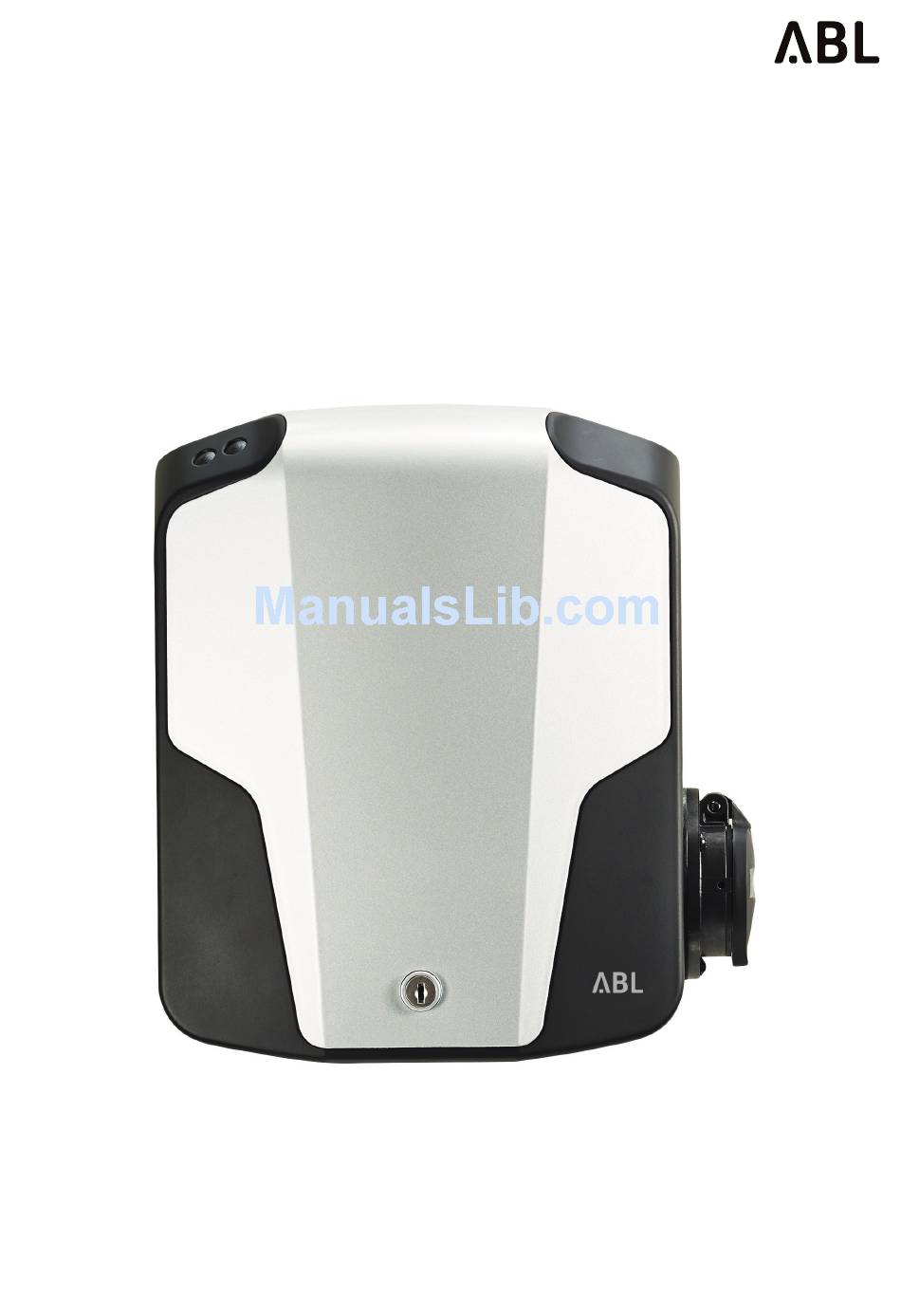

  • Page 1 WALLBOX with socket Instruction Manual VERSION: 5X2-2016-07-15...

  • Page 2: Contact

    Contact Manufacturer ABL Sursum Bayerische Elektrozubehör GmbH & Co. KG Albert-Büttner-Straße 11 91207 Lauf / Pegnitz Germany Phone +49(0)9123 188-0 +49(0)9123 188-188 www.abl.de Email info@abl.de Support Phone +49(0)9123 188-600 Email emobility.support@abl.de...

  • Page 3: Table Of Contents

    Contents Contact Safety and Operating Notices Safety Notices in this Manual Safety notices on the device General safety information Operating instructions / Maintenance Introduction Product description Identifying your product variant Package contents and unpacking Available accessories Installation and power supply connection Prerequisites for the mounting site and installation Preparation and mechanical installation Electrical installation of your charging station...
  • Page 4 Disruptions to the operation of the charging station and solutions Checking the integrated RCCB (only for model variants with RCCB) Taking the device out of operation Appendix Specifications Trademarks CE certification and compliance declaration Glossary & Definitions Drilling template Warranty and guarantee provisions Disposal advice...

  • Page 5: Safety And Operating Notices

    Further safety notices and operating instructions can be found on the device. These symbols carry the following meanings: WARNING! Please ensure that you read the instruction manual (this document) be- fore you open the housing of your eMH1 charging station. WARNING! After opening, dangerous electrical voltages may be present inside the housing.

  • Page 6: General Safety Information

    Safety and Operating nOticeS WARNING! Please ensure you read the instruction manual (this document), before you continue. In case the charging station is operated by several users, the contents of this manual and the safe- ty notices in particular must UNDER ALL CIRCUMSTANCES be passed on to each individual user. General safety information This device represents the current state of technology and fulfils all technical safety requirements, guidelines and norms.

  • Page 7: Operating Instructions / Maintenance

    • Regularly check the charging socket and the separately available charging cable of your eMH1 charging station for wear and tear. Pay special attention to the proper fit of the connectors of the charging cable in the charging sockets of both the eMH1...
  • Page 8 Safety and Operating nOticeS DANGER! Should you discover any damage to the charging cable or a supply ca- ble, you must take the device out of operation immediately. In this case, please turn to an authorized service partner or the dealer from whom you purchased the product.

  • Page 9: Introduction

    ABL is, with its eMH1 family of products, a leading supplier in this area. The eMH1 combines progressive and pleasing design with intuitive functionality: According to their requirements, users may select from models with a variety of features developed for domestic and semi-public applications.

  • Page 10: Identifying Your Product Variant

    Identifying your product variant The eMH1 series comprises several model variants, which are mechanically and/or electrically adapted to different usage profiles. For identification, a product compliance plate is located at the back of the lockable housing cover shield near the hinge. Please...

  • Page 11: Package Contents And Unpacking

    You can find the necessary contact details on page ii in this manual. Available accessories ABL sells additional accessories for your eMH1 charging station. For the models of the EVSE 5X2 series, the following components are available: DESIGNATION...
  • Page 12 DESIGNATION PART NUMBER QUANTITY Mounting pole* For mounting all eMH1 charging stations with or STEMH10 without bracket Dimensions: 1600 x 280 x 70 cm Weight: 2,000 g Mounting plate / bracket WHEMH10 with fixings for all eMH1 charging stations...

  • Page 13: Installation And Power Supply Connection

    Prerequisites for the mounting site and installation Your eMH1 charging station is an electrical device and is therefore subject to particular prerequisites for indoor and outdoor installation: Although the housing of the eMH1 complies with the standards for the IP44 degree of protection, you must take into ac- count certain environmental conditions, especially outdoors.

  • Page 14: Preparation And Mechanical Installation

    Preparation and mechanical installation After determining the mounting site for the eMH1, you can begin with the mechanical installation. For installation you will need the following components: • Power drill or cordless drill (not included) •...

  • Page 15: Electrical Installation Of Your Charging Station

    inStallatiOn and pOwer Supply cOnnectiOn CAUTION! Check the measurements on the drilling template with a calibrated measuring tape BEFORE you mark the drill holes using the tem- plate and then drill them. Drilling the mounting holes using the drilling template Proceed as follows to drill the holes using the drilling template: 1.
  • Page 16 DANGER! Under all circumstances deactivate the miniature circuit breaker (MCB) al- located to the eMH1 in your domestic power distribution box before you begin electrical installation. Also ensure that the MCB cannot be reacti- vated during installation. Otherwise there is a danger of electric shock!
  • Page 17 inStallatiOn and pOwer Supply cOnnectiOn DANGER! The above color-coding is NOT internationally standardized: Should the in- dividual wires in the power supply cable be color-coded differently, please immediately contact a qualified electrical contractor! Have the power supply checked and replaced if necessary. After successful connection to the power supply by a qualified specialist or electrical contractor, please take the following steps to complete installation: 1.

  • Page 18: Taking Into Operation And Charging Procedure

    The EVSE 5X2 features a charging socket according to IEC 62196-2, Type 2. Accordingly, you will require a (separately available) charging cable to connect your vehicle. To provide a high level of flexibility, ABL has two differ- ent cables on offer for this purpose:...

  • Page 19: Safety Information For Taking The Charging Station Into Operation

    A charging cable (available separately) is required for the charging process itself. The models available from ABL are listed on page 7 and you can obtain further informa- tion on the ABL website at www.abl.de as well as from your local distributor.

  • Page 20: Charging Procedure

    taking intO OperatiOn and charging prOcedure Although the cable and connector are designed to withstand high mechanical stress- es, you should not drive your vehicle over the cable and/or the connector. Also ensure that the cable is not kinked at the charging socket and that there is no excessive strain on the cable and/or the housing.

  • Page 21: Resolving Errors

    Operating states The two indicator LEDs on the left above the front cover shield show the current op- erating status of the eMH1 charging station. To indicate certain operating states, the LEDs may..be illuminated (continuous ON) ...flash...

  • Page 22: Error Messages During Operation With The Vehicle

    EVSE 5X2. Disruptions to the operation of the charging station and solutions For safe operation, the eMH1 has, depending on the model variant, an integrated DC fault current detector and/or a residual current circuit breaker (RCCB), which detects residual currents that may occur and for your personal protection disconnects the entire charging station from the electricity supply.
  • Page 23 reSOlving errOrS PLEASE NOTE: All EVSE model variants must be protected during operation either by an integrated or external RCCB. Depending on the country, for model variants without DC fault current detection, an external type B RCCB must be set aside in the domestic power distribution box.

  • Page 24: Checking The Integrated Rccb (Only For Model Variants With Rccb)

    reSOlving errOrS PLEASE NOTE: Should there be a fault in the power supply that you cannot resolve yourself, please contact a qualified electrical contractor. Should there be a fault in relation to the internal RCCB (all model variants except EVSE 552 and EVSE 562), please contact the local distributor from whom you have purchased the charging station.
  • Page 25 reSOlving errOrS 3. Lock the cover shield again. 4. Now the EVSE5X2 cannot be used for charging. PLEASE NOTE: The EVSE 552 model variant has, in place of the integrated RCCB, a switch that you can flick to position 0 to interrupt the Control-Pilot sig- nal to the charging socket and thereby prevent detection of the electric vehicle.

  • Page 26: Appendix

    appendix Appendix Specifications MODEL VARIANT EVSE 502 EVSE 512 EVSE 522 Compliance IEC 61851-1/22 Rated voltage 230/400 V 50 Hz 230 V 50 Hz 230/400 V 50 Hz 16 A (MCB 32 A (MCB 16 A (MCB Rated current required onsite) required onsite) required onsite) 11 kW...
  • Page 27 2.3 kg Weight per unit WARNING! Please note that the charging stations of the eMH1 series are available in a range of model variants with differing technical data. The information and technical specifications in this manual refer exclusively to the model variant mentioned in these instructions and must NOT UNDER ANY CIR- CUMSTANCES be transferred to other eMH1 model variants.

  • Page 28: Trademarks

    appendix STANDARD DESCRIPTION WEEE Guideline 2002/96/EC ElektroG Electrical and Electronic Device Statute Standards governing electromagnetic interference (EMV) STANDARD DESCRIPTION DIN EN 61000-6-2:2005 Device interference protection for industrial applications DIN EN 61000-6-3:2007 Device interference for domestic applications Device safety standards STANDARD DESCRIPTION Conductive charging systems for electric vehicles –...

  • Page 29: Ce Certification And Compliance Declaration

    CE certification and compliance declaration The eMH1-EVSE 5X2 charging station carries the CE mark. The respective compliance declarations can be obtained from ABL SURSUM Bayerische Elektrozubehör GmbH & Co. KG on request and are available at www.abl.de for download.

  • Page 30: Drilling Template

    Drilling template Your eMH1 charging station comes with a template (see reduced-size illustration) for drilling the mounting holes in a suitable substrate. Electrical installation of the eMH1 model variants described in these instructions must always be left to a qualified electri- cal contractor who will connect the device to the local power supply.

  • Page 31: Warranty And Guarantee Provisions

    Warranty and guarantee provisions ABL provides the legally prescribed guarantee period as well as a warranty of the same duration for the country in which the product was purchased. Should the product be operated in another country, the legal provisions of the country of purchase apply nevertheless: Under no circumstances are guarantees or the warranty transferable.

  • Page 32: Disposal Advice

    appendix However, the manufacturer further rejects any damage claims that can be shown to have resulted from improper use, neglect or modifications, from repair attempts by unauthorized persons or force majeure. Any assumed guarantees, including a guarantee of marketability or suitability for spe- cific uses are restricted to the warranty period.
  • Page 34 ABL SURSUM Albert-Büttner-Straße 11 Tel. +49 (0) 9123 188-0 info@abl.de Bayerische Elektrozubehör GmbH & Co. KG D-91207 Lauf / Pegnitz Fax +49 (0) 9123 188-188 www.abl.de...
