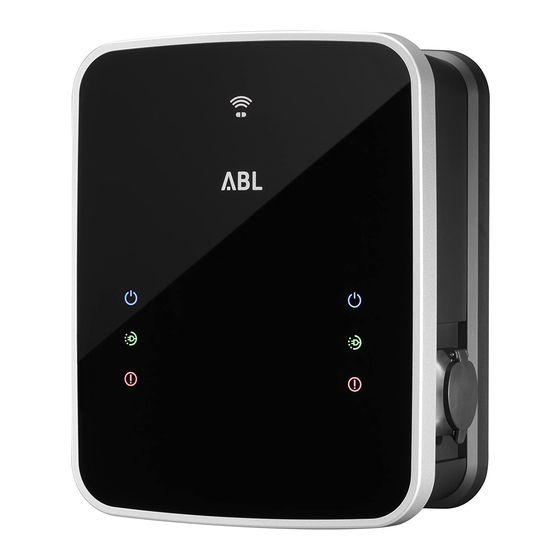

Wallbox
eMH3
Operating Manual
VERSION: EMH3-2016-10-28-UM
ARTICLE NO. 0301590

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wallbox eMH3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABL Wallbox eMH3

Summary of Contents for ABL Wallbox eMH3

  • Page 1 Wallbox eMH3 Operating Manual VERSION: EMH3-2016-10-28-UM ARTICLE NO. 0301590...

  • Page 2: Contact

    Contact Manufacturer ABL SURSUM Bayerische Elektrozubehör GmbH & Co. KG Albert-Büttner-Straße 11 91207 Lauf / Pegnitz Germany Phone +49 (0) 9123 188-0 +49 (0) 9123 188-188 www.abl.de Mail info@abl.de Phone +49(0)9123 188-600 Customer Email emobility.support@abl.de Support...

  • Page 3: Table Of Contents

    Contents Contact Important information About this manual Safety notices in this manual Safety notices on the device General safety information General product information User information Introduction Introducing the product Unpacking and components included Identifying your model variant Available accessories Taking into operation and charging procedure Safety information for taking the wallbox into operation Operating instructions...
  • Page 4 Resolving errors Error messages during the charging procedure Error codes for RFID module operation Disruptions to the operation of the charging station and solutions Checking the internal RCCBs Taking the wallbox out of and back into operation Frequently asked questions Appendix Technical specifications Scale drawings and dimensions...

  • Page 5: Important Information

    About this manual This manual documents the steps and options necessary for set up and operation of your ABL Wallbox. For quick and easy reference, certain sections of this manual are specially formatted. • Descriptions listing equally valid options (as is the case here) are indicated by bullet points.

  • Page 6: Safety Notices On The Device

    • The ABL Wallbox must only be operated with the housing cover closed and locked: Before charging, ensure that the housing cover is closed and lock it using the trian- gular key supplied.

  • Page 7: General Product Information

    • The ABL Wallbox must not be installed in areas subject to flooding. • The ABL Wallbox must not be installed in explosive atmosphere areas (EX areas). • The ABL Wallbox must not be covered with stickers or other objects or materials so that sufficient air circulation is ensured at all times.

  • Page 8: User Information

    No further use of the wallbox is permitted in this case! Please contact your local ABL technical support! User information To operate your wallbox, please note these instructions: •...
  • Page 9 Important InformatIon • You must not under any circumstances make any changes to the housing or the internal wiring of the wallbox: Any disregard of this instruction represents a safety risk, fundamentally breaches the guarantee provisions and may void the warranty with immediate effect.

  • Page 10: Introduction

    IntroductIon Introduction Thank you for choosing this wallbox to charge your electric vehicle! With this ABL Wall- box, you have selected an innovative and future proof solution. eMobility helps to save natural resources and protect the environment sustainably. The ABL Wallbox combines progressive and pleasing design with intuitive function-...

  • Page 11: Unpacking And Components Included

    IntroductIon Unpacking and components included Your ABL Wallbox is delivered in an extremely sturdy box, including a range of acces- sory components required for proper operation. Therefore, please check immediately after unpacking whether the following components are included: COMPONENT QUANTITY DESCRIPTION...
  • Page 12 IntroductIon MODEL NUMBER GRID CONNECTION MODEL VARIANT Single charging station with integrated charging socket according to IEC 62196-2 Type 2 with locking mecha- nism for separately available charging 230 / 400 V cable (Type 2 to Type 2 or Type 2 to 3W2207 Type 1);...

  • Page 13: Available Accessories

    These variants are delivered with specific instruction manuals where necessary. Available accessories ABL sells additional accessories for your eMH3 Wallbox. For the models of the eMH3 series, the following components are available: DESIGNATION ARTICLE NO...
  • Page 14 Please note that the do-it-yourself installation of accessory components is not permitted: Please contact a qualified contractor or arrange installa- tion with your local distributor. Please also visit our website at ... www.abl.de You will find further information about our products and our entire range there.

  • Page 15: Taking Into Operation And Charging Procedure

    Please contact a specialist electrical contractor or your local ABL partner, who will be pleased to assist you with any questions regarding the installation and operation of your wallbox.

  • Page 16: Safety Information For Taking The Wallbox Into Operation

    takIng Into operatIon and chargIng procedure The charging connector or charging sockets of the eMH3 have three current-carrying contacts, a neutral conductor, a PE protective earth conductor as well as two signaling con- tacts (Control Pilot and Proximity Pilot), which ensure a se- cure connection and therefore the safe operation of the wallbox.

  • Page 17: Description Of The Rfid Module

    takIng Into operatIon and chargIng procedure • If you want to store your cable on the wallbox you can wrap it around the eMH3: This way it is always close at hand. • Although the cable and connector are designed to withstand high mechanical stress- es, you should not drive your vehicle over the cable and/or the connector.

  • Page 18: Deactivating And Reactivating Of The Charging Function Via Rfid

    takIng Into operatIon and chargIng procedure In the TWIN models 3W2214 and 3W2217 , the RFID module controls basic load man- agement, even when access control has not been activated. Should both charging sockets be in use for charging at the same time, load management distributes the maximum available current equally to both charging points.

  • Page 19: Registering Additional Rfid Cards

    takIng Into operatIon and chargIng procedure 2. Place the Teach-In tag card in front of the RFID module: The blue LED is ON. 3. When the green LED flashes twice, remove the Teach-in card. Green LED flashes twice, blue LED is OFF Now the RFID module restarts.

  • Page 20: Operating Status (Rfid Module)

    takIng Into operatIon and chargIng procedure Proceed as follows to initialize the registration of cards on the RFID Module: 1. Separate the eMH3 from the electricity supply by switching the internal RCCB or the upstream MCB in the domestic installation to the 0 position. 2.

  • Page 21: Charging Procedure

    takIng Into operatIon and chargIng procedure Charging procedure The eMH3 is engineered for the fastest possible charging of your vehicle according to IEC 61851-1 Mode 3. The actual charging time depends on the battery fitted to your vehicle as well as on the charge currently remaining in the vehicle: For these reasons it is not possible to make a reliable prediction of the charging time.
  • Page 22 takIng Into operatIon and chargIng procedure 6. If the RFID module has been activated, log in at the RFID module of the eMH3 using an appropri- ate access card. To do this, place the card in front of the RFID icon on the upper part of the housing cover.

  • Page 23: Resolving Errors

    In some circumstances, malfunctions and disruptions of the charging procedure may occur that prevent the proper charging of the vehicle according to IEC 61851-1. The ABL Wallbox independently detects possible internal errors as well as errors on the part of the vehicle and shows them using the indicator LEDs.

  • Page 24: Error Codes For Rfid Module Operation

    resolvIng errors For most error states, the wallbox reinitiates the charging procedure, checking com- munications with the vehicle. However, in practice, it is, in case of an error, advis- able to manually reinitiate the charging procedure by unplugging and reconnecting the cable as not all errors can be resolved by the automatic restart.

  • Page 25: Checking The Internal Rccbs

    resolvIng errors The following errors may occur: TYPE OF ERROR POSSIBLE CAUSE SUGGESTED SOLUTION The power supply of the eMH3 is interrupt- ed within the domestic electrical infrastruc- ture: Check the upstream circuit breaker in The eMH3 does not the domestic power distribution box. have a power sup- The internal RCCB(s)of the eMH3 have been ply.

  • Page 26: Taking The Wallbox Out Of And Back Into Operation

    resolvIng errors Proceed as follows to test an RCCB: 1. Open the housing cover of the wallbox using the triangular key supplied. 2. Locate the button engraved T or marked Test. 3. Press the button: The corresponding RCCB should now trip and flick the pivot lever of the RCCB into the 0 position (connection to the power supply is interrupted).

  • Page 27: Frequently Asked Questions

    Please always follow all local regulations for operating electrical devices. Can the ABL Wallbox be operated on a single phase power supply? • Yes, in principle all model variants of the ABL Wallbox can be operated on a single phase power supply.
  • Page 28 The key for opening the housing has been lost. Can I order a replacement key? • One triangular key for the housing cover ins supplied with the ABL Wallbox. In case of a lost key, contact the dealer from whom you have purchased the wallbox to order a replacement triangular key.

  • Page 29: Appendix

    appendIx Appendix Technical specifications Model Variant 3W2205 3W2207 3W2209 IEC 61851-1 / 61439-7 Compliance Direct connection to residual current circuit breaker (RCCB) Grid connection PE: Feed-through terminal block, max. 5 x 10 mm² 230 / 400 V Rated voltage Rated current 32 A, 3-phase Rated frequency 50 Hz...
  • Page 30 appendIx Model Variant 3W2214 3W2217 3W4401 Compliance IEC 61851-1 / 61439-7 Direct connection to residual current circuit breaker (RCCB) for two supply cables, Grid connection PE: Feed-through terminal block, max. 5 x 10 max. 5 x 10 mm² each mm² Rated voltage 230 / 400 V Rated current...

  • Page 31: Scale Drawings And Dimensions

    Scale drawings and dimensions The ABL Wallbox is delivered fully assembled and quality checked. All measurements in the following elevations are in mm. Wallbox 3W2205 Wallboxes 3W2207 and 3W2209...

  • Page 32: Guidelines & Norms

    Wallboxes 3W2214, 3W2217 and 3W4401 Guidelines & Norms The ABL Wallbox complies with the following standards and protection ratings: General guidelines Guideline Description 2014/30/EU EMC Guideline 2011/65/EU RoHS 2 guideline 2012/19/EU WEEE Guideline 2014/35/EU Low voltage directive ElektroG Electrical and Electronic Device Statute...

  • Page 33: Ce Certification And Compliance Declaration

    CE certification and compliance declaration The ABL Wallbox carries the CE mark. The associated compliance dec- laration is included with the ABL Wallbox as a separate printed docu- ment and is also available in electronic form at www.abl.de for download.

  • Page 34: Trademarks

    appendIx Trademarks All trademarks mentioned in this manual including those that may be protected by third parties are, without restriction, subject to the regulations of the respectively applicable trademark law and the property rights of the respective registered owners. All trademarks, trading names or company names marked here as such are or may be trademarks or registered trademarks of their respective owners.
  • Page 35 appendIx...
  • Page 36 ABL SURSUM Albert-Büttner-Straße 11 Ph.: +49 (0) 9123 188-0 info@abl.de Bayerische Elektrozubehör GmbH & Co. KG D-91207 Lauf / Pegnitz Fax: +49 (0) 9123 188-188 www.abl.de...
