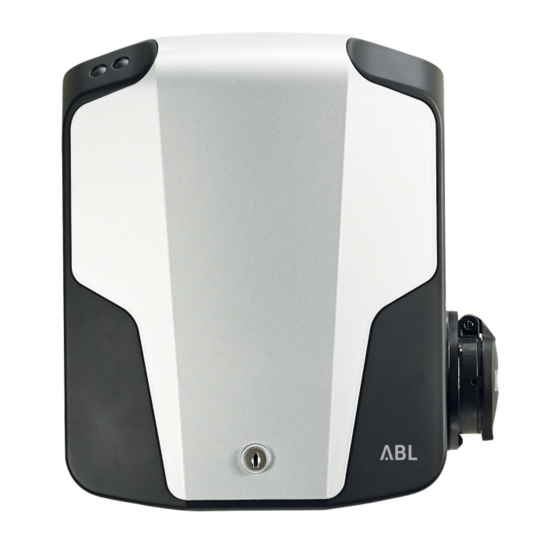

ABL eMH1 Installation And Operating Manual
Wallbox
Hide thumbs
Also See for eMH1:
- Operating manual (228 pages) ,
- Manual (176 pages) ,
- Installation manual (95 pages)
Related Manuals for ABL eMH1
Summary of Contents for ABL eMH1
- Page 1 Wallbox eMH1 EVSE 803/813 Installation and operating manual VERSION: EMH1-803-813-2017-10-20 ARTICLE NO.: 0301411_b...
-
Page 2: Contact
Contact Manufacturer ABL SURSUM Bayerische Elektrozubehör GmbH & Co. KG Albert-Büttner-Straße 11 91207 Lauf / Pegnitz Germany Phone +49 (0) 9123 188-0 +49 (0) 9123 188-188 www.abl.de Mail info@abl.de Customer Phone +49(0)9123 188-600 Support Email emobility.support@abl.de... -
Page 3: Table Of Contents
Contents Contact Safety and Operating Notices Safety Notices in this Manual Safety notices on the device General safety information Operating instructions / Maintenance Introduction Product description Identifying your product variant Package contents and unpacking Available accessories Installation and power supply connection Prerequisites for the mounting site and installation Preparation and mechanical installation Electrical installation of your the wallbox... - Page 4 Error messages during operation with the vehicle Operational disruptions and solutions Checking the internal RCCB Taking the device out of operation Appendix Technical specifications Standards & guidelines Trademarks CE certification and compliance declaration Glossary & Definitions Drilling template Warranty and guarantee provisions Disposal advice...
-
Page 5: Safety And Operating Notices
Safety Notices in this Manual This instruction manual contains important information for the installation and safe use of the eMH1 – EVSE 803 and EVSE 813 Wallboxes it refers to. Please ensure therefore that you read and follow the safety notices provided. -
Page 6: General Safety Information
Safety and Operating nOticeS General safety information This device represents the current state of technology and fulfills all technical safety requirements, directives and norms. The safety information provided serves to ensure the proper operation of the device. Disregard of or actions contrary to the safety infor- mation and instructions contained in this manual and printed on the device may lead to electric shock, fire and/or severe injury. - Page 7 (such as cleaning fluid or paint thinner), because they can dull the displays on the device. • The wallbox must never be cleaned using a pressure cleaner or similar implement. • Check the permanently installed charging cable of your eMH1 wallbox regularly for potential abrasions or damage. DANGER! Should you discover any damage to the charging cable or a supply cable, you must take the device out of operation immediately.
-
Page 8: Introduction
ABL is, with its eMH1 family of products, a leading supplier in this area. The eMH1 combines progressive and pleasing design with intuitive functionality: According to their requirements, users may select from models with a variety of features developed for domestic and semi-public applications. -
Page 9: Identifying Your Product Variant
Package contents and unpacking Your eMH1 Wallbox is delivered with a range of accessory components, which are necessary for the proper operation of the device. Therefore, please check immediately after unpacking whether the following components are included:... -
Page 10: Available Accessories
You can find the necessary contact details on page ii in this manual. Available accessories ABL sells additional accessories for your eMH1 Wallbox. For the models of the EVSE 803 and 813 series, the following components are available: DESIGNATION... -
Page 11: Installation And Power Supply Connection
Prerequisites for the mounting site and installation Your eMH1 Wallbox is an electrical device and is therefore subject to particular prereq- uisites for indoor and outdoor installation: Although the housing of the eMH1 complies with the standards for the IP54 degree of protection, you must take into account cer- tain environmental conditions, especially outdoors. -
Page 12: Preparation And Mechanical Installation
• Screwdriver for 5 x 60 torx-headed screws (not included) • Phillips head screwdriver for M3 x 15 screws (not included) • Pliers or cutter for breaking or cutting out the cable inlet at the edge of the eMH1 wall bracket (not included) •... - Page 13 inStallatiOn and pOwer Supply cOnnectiOn DANGER! Before you begin installation, always observe the 5 golden rules of elec- trical installation: 1. Cut off all voltage sources 2. Secure all cut-off devices 3. Verify absence of voltage 4. Ground and short-circuit 5.
-
Page 14: Electrical Installation Of Your The Wallbox
inStallatiOn and pOwer Supply cOnnectiOn 3. If you do not wish to pass the supply cable cen- trally through the rear part of the wallbox, find the pre-stamped cable inlets on the edge of the wall bracket: Chose one of the pre-stamped cable in- lets on the upper, lower, left or right edge and use the cutter to cut an opening to suit the power supply cable into the edging. - Page 15 inStallatiOn and pOwer Supply cOnnectiOn 3. Loosen the lower screws in the terminal blocks, insert the supply cable wires into their respective terminals and tighten with a torque of 2.5 to 3 Nm. The wiring se- quence is shown in the following table. The supply cable for the 1 phase EVSE 813 model variant is connected as follows: DESIGNATION WIRE COLORS...
-
Page 16: Taking Into Operation And Charging Procedure
taking intO OperatiOn and charging prOcedure Taking into operation and charging procedure Your wallbox is ready for use immediately after mechanical and electrical installation have been completed. The EVSE 803/813 is equipped with a fixed charging cable with a type 1 charging connector to connect to the vehicle. This connector has three current- carrying contacts, a PE-protective earth conductor as well as two signaling contacts (Control Pilot and Proximity Pilot), which ensure a secure connection and therefore the safe operation of the charging station. -
Page 17: Normal Operation
taking intO OperatiOn and charging prOcedure Normal operation The fixed charging cable leaves the wallbox on the left lower side of the housing. A matching compartment for the charging connector is provided on the right side of the housing: A pin inside the compartment, onto which the connector is hooked, serves to secure it in place. - Page 18 taking intO OperatiOn and charging prOcedure 2. Open the charging socket on the vehicle. 3. Check the two indicator LEDs on the top part of the EVSE 803/813: When the wall- box is ready for operation, the blue LED indicator will flash briefly every 5 seconds, while the green LED will be not be illuminated.
-
Page 19: Resolving Errors
Operating states The two indicator LEDs on the left above the front cover shield show the current oper- ating status of the eMH1 Wallbox. To indicate certain operating states, the LEDs may • ... be illuminated (continuous ON) • ... flash •... -
Page 20: Error Messages During Operation With The Vehicle
EVSE 803/813. Operational disruptions and solutions For safe operation, the eMH1 is equipped with DC fault current detection and a resid- ual current circuit breaker (RCCB), which detect residual currents that may occur and disconnect the entire wallbox from the electricity supply for your personal protection. -
Page 21: Checking The Internal Rccb
reSOlving errOrS TYPE OF ERROR POSSIBLE CAUSE SUGGESTED SOLUTION The power supply is interrupted within the domestic electrical infrastructure: Check the upstream circuit breaker in the domestic power The wallbox does distribution box. not have a power The internal RCCB of the wallbox has been supply. -
Page 22: Taking The Device Out Of Operation
reSOlving errOrS 3. Press the button: The RCCB should now trip and flick the pivot lever of the RCCB into a centre position (connection to the power supply is interrupted). 4. Switch the circuit breaker completely off (0 position) and then back on by flicking the pivot lever up into the I position. - Page 23 reSOlving errOrS ENVIRONMENTAL NOTICE! Please note that this product may not be disposed of in the household garbage collection, but must be taken to a collection point for electrical/ electronic waste. Please observe all current national and regional legal regulations. You can get further information from your municipal admin- istration, the waste management depot responsible for your area as well as from your local distributor.
-
Page 24: Appendix
Dimensions 482 x 226 x 143 mm (H x W x D) Weight per unit ca. 5.6 kg Standards & guidelines Your eMH1 EVSE 803/813 Wallbox complies with the following standards and classes of protection: General standards STANDARD DESCRIPTION 2004/108/EC... -
Page 25: Trademarks
appendix STANDARD DESCRIPTION ElektroG Electrical and Electronic Device Statute Standards governing electromagnetic interference (EMV) STANDARD DESCRIPTION DIN EN 61000-6-2:2005 Device interference protection for industrial applica- tions DIN EN 61000-6-3:2007 Device interference for domestic applications Device safety standards STANDARD DESCRIPTION Conductive charging systems for electric vehicles – IEC 61851-1 Ed 2.0:2010 Part 1: General requirements Conductive charging systems for electric vehicles –... -
Page 26: Ce Certification And Compliance Declaration
CE certification and compliance declaration The eMH1 EVSE 803/813 Wallbox carries the CE mark. The respective compliance declarations can be obtained from ABL SURSUM Bayerische Elektrozubehör GmbH & Co. KG on request and are available at www.abl.de... -
Page 27: Drilling Template
Drilling template Your eMH1 Wallbox comes with a template (see reduced-size illustration) for drilling the mounting holes in a suitable substrate. Electrical installation of the eMH1 model variants described in these instructions must always be left to a qualified electrical contractor who will connect the device to the local power supply. -
Page 28: Warranty And Guarantee Provisions
Warranty and guarantee provisions ABL provides the legally prescribed guarantee period as well as a warranty of the same duration for the country in which the product was purchased. Should the product be operated in another country, the legal provisions of the country of purchase apply nevertheless: Under no circumstances are guarantees or the warranty transferable. -
Page 29: Disposal Advice
appendix to restore the proper functioning of the product. The customer will be responsible for covering any arising transport costs. However, the manufacturer further rejects any damage claims that can be shown to have resulted from improper use, neglect or modifications, from repair attempts by unauthorized persons or force majeure. - Page 30 ABL SURSUM Albert-Büttner-Straße 11 Tel. +49 (0) 9123 188-0 info@abl.de Bayerische Elektrozubehör GmbH & Co. KG D-91207 Lauf / Pegnitz Fax +49 (0) 9123 188-188 www.abl.de...
