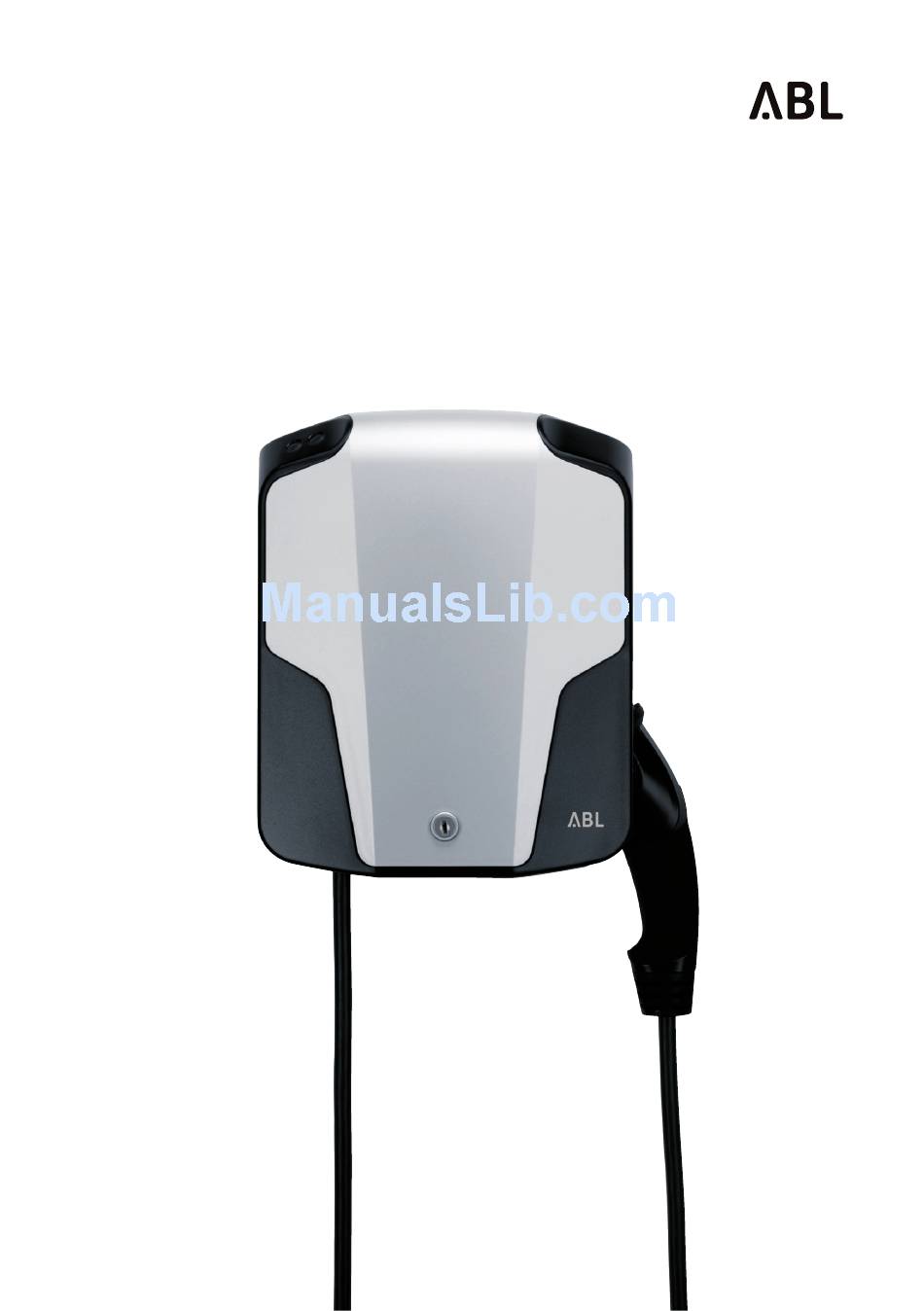

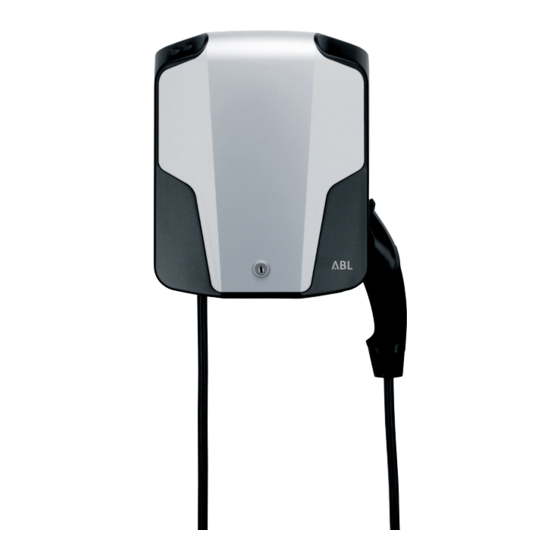

- Page 1 WALLBOX Instruction manual eMH1 513/824 VERSION: 513/824-2016-07-15...
- Page 2 Contact Manufacturer ABL Sursum Bayerische Elektrozubehör GmbH & Co. KG Albert-Büttner-Straße 11 91207 Lauf / Pegnitz Germany Phone +49(0)9123 188-0 +49(0)9123 188-188 www.abl.de Email info@abl.de Support Phone +49(0)9123 188-600 Email emobility.support@abl.de...
-
Page 7: Table Of Contents
CONTENTS Contact Introduction Meaning of the safety information General safety information Warnings Product overview Description EVSE 513 charging station scope of delivery (Fig. A) Residual direct current (‘DC residual current’) Assembly Assembly location Opening the charging station (Fig. B) Attaching the charging station (Fig. C) Mounting height (Fig. - Page 8 Checking the RCCB (Fig. H) Lockable panel Troubleshooting Care and maintenance Specifications Conditions of operation Declaration of compliance Disposal note viii...
-
Page 9: Introduction
IntroductIon Introduction This operating manual contains important information about the installation and safe operation of the device. Please make sure to read and observe the safety instructions provided. All safety information in this operating manual must be passed on to all users. Meaning of the safety information DANGER! Failure to heed this warning may lead to death or serious injury. - Page 10 IntroductIon (A) Read operating manual before opening (B) Warning: dangerous electrical voltages Consult the operating manual (A) WARNING: (B) Potential risk of electric shock from residual direct currents (C) For further information, see the operating manual DANGER! • The electrical system complies with all applicable guidelines and standards •...
-
Page 11: Product Overview
Product overvIew Product overview Description The charging station allows safe and convenient charging of electric vehicles in ac- cordance with IEC 61851-1, Mode 3. In this mode, the charging station ensures that the vehicle is only supplied with electrical energy if the vehicle is connected properly. EVSE 513 charging station scope of delivery (Fig. - Page 12 Product overvIew Volkswagen vehicles), obtained from authorised dealers or even from the manu- facturer themselves. • If you do not know whether the vehicle has a residual current protective device, it may not be connected to this charging station. In this event, additional protective measures are required in the charging station or the electrical wiring in order to prevent DC residual currents from compromising the reliability of an RCCB during the charging process.
-
Page 13: Assembly
Assembly Assembly Assembly location The charging station is designed for outdoor use (splash proof). In order to best protect the appearance of the charging station, it should only be installed in locations that are not exposed to constant, direct sunlight. We recommend installing the charging station in a garage or carport. -
Page 14: Mounting Height (Fig. D)
Assembly Mounting height (Fig. D) A mounting height of 150 cm is recommended for a 3-m charging cable. Electrical connection (Fig. E) WARNING! Before operating, installing or opening the charging station, read and ob- serve the safety information provided. Switch off the power before ope- ning the device, and ensure it cannot be switched back on. -
Page 15: Operation
oPerAtIon Operation Charging process and LED indicators (Fig. F) The charging process complies with IEC 61851-1 Mode 3 LED F2 LED F1 Step Description (green) (blue) short flash Ready every 5 s Power supply Vehicle detected, charging starts connected to the automatically vehicle inlet Charging... -
Page 16: Removing The Coupler From The Charging Station (Fig. G)
oPerAtIon Removing the coupler from the charging station (Fig. G) Disengage the coupler by first lifting the coupler in the direction indicated (G1) and then taking it out of its bracket (G2). Checking the RCCB (Fig. H) The RCCB (H1) should be checked at least every six months! When pushed, the RCCB test button must function and break the circuit. -
Page 17: Troubleshooting
If the RCCB is triggered again, this may indicate a fault that can only be repaired by trained personnel. Please note that any inappropriate repair work voids the warranty, and ABL cannot be held liable for any damage caused as a result. -
Page 18: Care And Maintenance
cAre And mAIntenAnce Care and maintenance • The charging station can be cleaned with a dry cloth. • Harsh cleaning agents may cause the displays (LED indicators) to become dull. • Never use a pressure washer or similar device to clean the charging station. •... -
Page 19: Specifications
The eMH1 EVSE 513 / 824 charging station bears the CE mark. The corresponding declarations of compliance are available on request ABL SURSUM Bayerische Elektrozubehör GmbH & Co. KG or can be downloaded from www.abl.de. Disposal note The symbol with the crossed-out dustbin means that electrical and electronic devices and their accessories should not be disposed of with general household waste. - Page 20 ABL SURSUM Albert-Büttner-Straße 11 Tel. +49 (0) 9123 188-0 info@abl.de Bayerische Elektrozubehör GmbH & Co. KG D-91207 Lauf / Pegnitz Fax +49 (0) 9123 188-188 www.abl.de...
