Uninterruptible Power Supply (UPS)
MMAC
1 2
MMAC-Plus Chassis (Front View)
Configuring COM Port for UPS
After the UPS has been connected to the COM2 port, the COM2 port must be
configured for UPS Management. To configure the COM2 port for UPS
Management, follow the steps below.
1.
2.
3.
4.
5.
If you need additional information about configuring the COM ports, refer to the
Local Management User's Guide.
B-2
EPIM
STATUS
COM 1 COM 2
ALARM
ENTER
9C3001
3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4

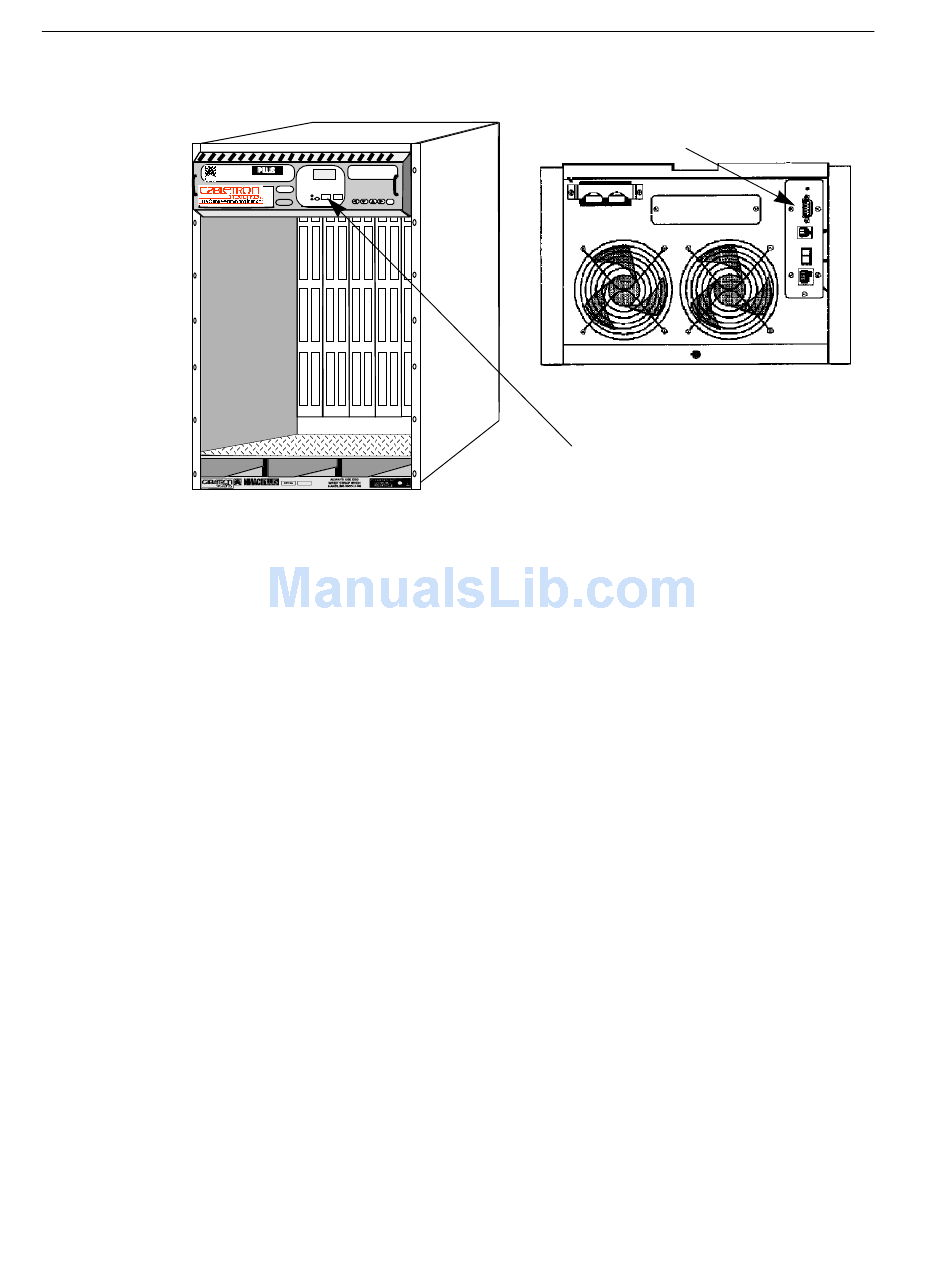

Figure B-1. Connecting EM to UPS
Connect the terminal or PC used for local management to the COM1 port on
the Environmental Module (EM) and press RETURN until the Slot Selection
Screen displays.
At the Slot Selection Screen, enter 0 (zero) to display the EM Configuration
Screen.
At the EM Configuration Screen, cursor to the Application Field for the
COM2 port.
Using the space bar, toggle to the UPS option.
Using the tab key, tab to the SAVE option and press RETURN.
9 Pin D Connector Receptacle
Matrix UPS (Back View)
COM Ports
