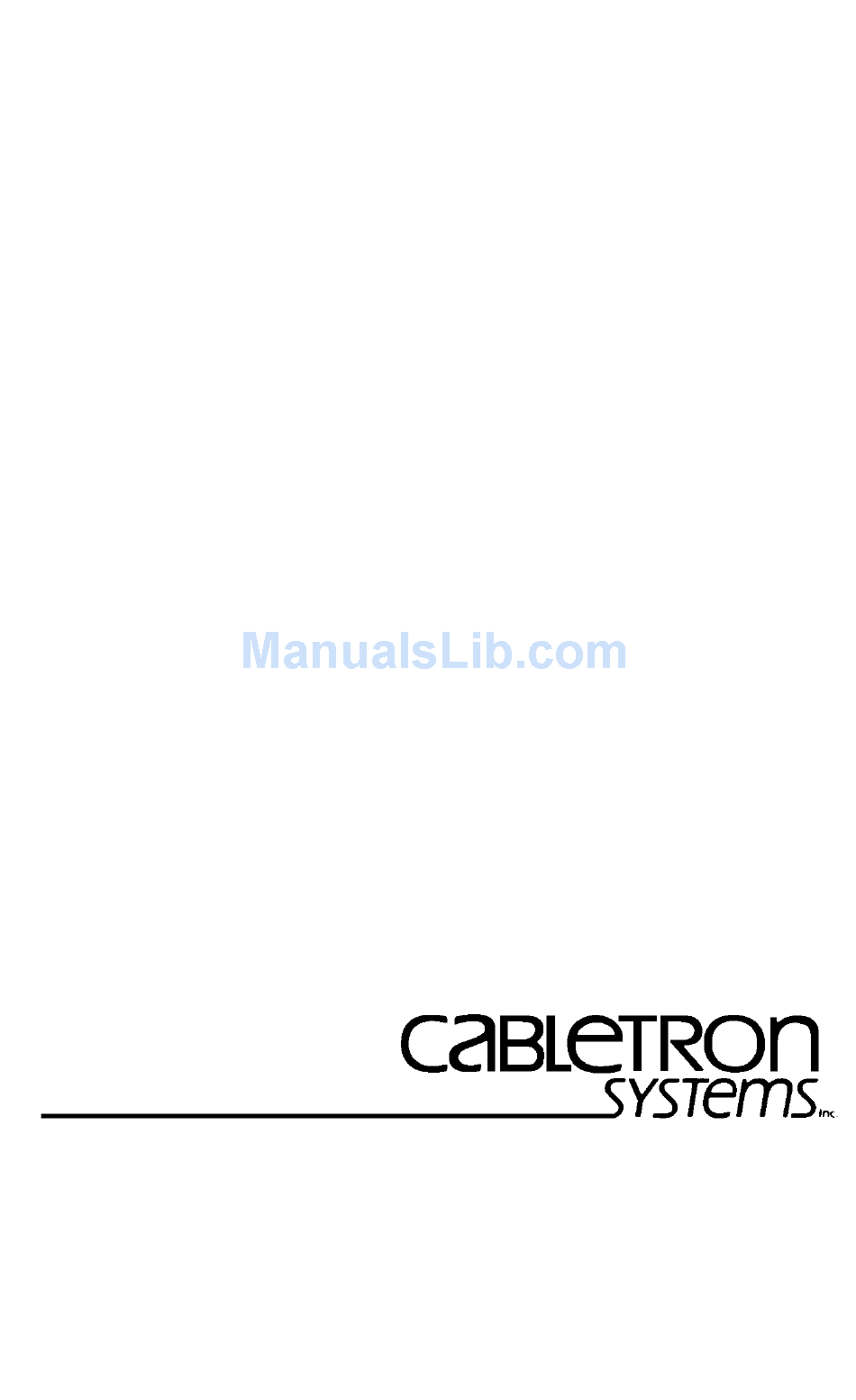

- Page 1 TRFMIM-22, TRFMIM-26, & TRFMIM-28 TOKEN RING FIBER MEDIA INTERFACE MODULES USER’S GUIDE CABLETRON SYSTEMS, P. O. Box 5005, Rochester, NH 03867-0505 The Complete Networking Solution™ CABLETRON SYSTEMS, P. O. Box 5005, Rochester, NH 03867-0505...
- Page 2 Rochester, NH 03867-0505 All Rights Reserved Printed in the United States of America Order Number: 9030896 July 93 TRFMIM-22, TRFMIM-26, TRFMIM-28, TRMM, and MMAC are trademarks of Cabletron Systems, Inc. LANVIEW and Remote LANVIEW are registered trademarks of Cabletron Systems, Inc.
-
Page 3: Fcc Notice
NOTICE FCC NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Table Of Contents
CHAPTER 1 INTRODUCTION 1.1 Using this Manual... 1-1 1.2 The TRFMIM Concentrator Modules... 1-2 1.3 Related Manuals... 1-5 1.4 Recommended Reading ... 1-5 1.5 Getting Help ... 1-5 CHAPTER 2 INSTALLATION REQUIREMENTS/ SPECIFICATIONS 2.1 Network Requirements ... 2-1 2.2 Cable Specifications ... 2-1 2.3 Operating Specifications ... - Page 5 TABLE OF CONTENTS CHAPTER 4 TESTING AND TROUBLESHOOTING 4.1 Installation Checkout ...4-1 4.2 Using LANVIEW ...4-2...
-
Page 6: Chapter 1 Introduction
Note: The term Concentrator Module is used throughout this manual when describing features and functions that are common to the TRFMIM-22, TRFMIM-26, and TRFMIM-28. The terms TRFMIM-22, TRFMIM-26, and TRFMIM-28 are used when it is necessary to describe features that are unique to any device. -
Page 7: The Trfmim Concentrator Modules
Cabletron Systems built-in visual diagnostic and status monitoring system, are also included. 1.2 THE TRFMIM CONCENTRATOR MODULES The TRFMIM-22, TRFMIM-26, and TRFMIM-28, shown in Figure 1-1, can be installed as a free-standing token ring network or to provide fiber optic connectivity to an existing token ring network. - Page 8 TRFMIM-26 MGMT 16 MB FLNK FLNK FLNK FLNK FLNK FLNK Figure 1-1 The TRFMIM Token Ring Concentrator Modules TRFMIM-22 TRFMIM-28 MGMT 16 MB FLNK FLNK FLNK FLNK FLNK FLNK FLNK FLNK FLNK FLNK FLNK FLNK FLNK FLNK FLNK FLNK FLNK...
- Page 9 INTRODUCTION Features of the concentrator module include: Number of Connections • TRFMIM-22 • TRFMIM-26 • TRFMIM-28 Multiple concentrator modules can be installed into an MMAC to increase the number of ports available on a token ring network. Speed Fault Protection...
-
Page 10: Related Manuals
INTRODUCTION an effective tool to help you quickly diagnose your physical layer network problems. 1.3 RELATED MANUALS The manuals listed below should be used to supplement the procedures and other technical data provided in this manual. The procedures in them will be referenced, where appropriate, but will not be repeated. -
Page 11: Getting Help
INTRODUCTION 1.5 GETTING HELP If you need additional support related to the Cabletron Systems Token Ring products, or if you have any questions, comments or suggestions related to this manual, contact Cabletron Systems Technical Support at: Cabletron Systems, Inc. P. O. Box 5005 Rochester, NH 03867-0505 Phone: (603) 332-9400... -
Page 12: Chapter 2 Installation Requirements/ Specifications
REQUIREMENTS/SPECIFICATIONS Before you attempt to install your concentrator module, review the installation requirements and operating specifications that are outlined in this chapter. Your network installation must meet the conditions, guidelines, specifications, and requirements included in this chapter to obtain satisfactory performance from this equipment. Failure to follow these guidelines could produce poor network performance. -
Page 13: Operating Specifications
REQUIREMENTS/SPECIFICATIONS • Attenuation - The fiber optic cable must be tested with a fiber optic attenuation test set that is adjusted for an 850 nm wavelength. This test verifies that the signal loss in a cable is within an acceptable level: 13.0 dB or less for 50/125 fiber cable segment. -
Page 14: Ring Order
Ring boards via the FNB, the ring order is in MMAC slot number order, and then port number order within each Token Ring board. Example: TRFMIM-22 in slot 1 with ports 2, 5, 8, & 12 in use. TRFMIM-22 in slot 2 with ports 1, 5, 7, 11, & 12 in use. - Page 15 REQUIREMENTS/SPECIFICATIONS Label Color 16 Mb Yellow MGMT Green FLNK Green Green Flashing Green - Station is inserted, but the port is Figure 2-1 TRFMIM LANVIEW LEDs TRFMIM-26 MGMT 16 MB FLNK Description Error or Speed Fault detected Hardware error detected Normal operation Ring Speed Indicator 16 Mbit/s mode selected...
-
Page 16: General Specifications
2.3.4 General Specifications SAFETY Warning: It is the responsibility of the person who sells the system to which the TRFMIM will be a part to ensure that the total system meets allowed limits of conducted and radiated emissions. This equipment is designed in accordance with UL478, UL910, NEC 725-2(b), CSA, IEC, TUV, VDE Class A, and meets FCC Part 15, Class A limits. -
Page 17: Chapter 3 Installing The Concentrator Module
CONCENTRATOR MODULE This chapter contains instructions for installing your concentrator module into a Cabletron Systems MMAC product and connecting token ring stations at the concentrator module’s trunk coupling unit (TCU) ports. Check that all requirements listed in Chapter 2, Installation Requirements/ Specifications, have been met before installing and operating the concentrator module. -
Page 18: Unpacking The Concentrator Module
INSTALLING THE CONCENTRATOR MODULE NOTE: The FNB is a full-height, full-width backplane that links Cabletron Systems Token Ring products. MMAC-3s and MMAC-8s (without an FNB) can be upgraded with an FNB, providing greater flexibility in configuring your system. Contact Cabletron Systems Technical Support for more information. -
Page 19: Configuring The Concentrator Module
3.2 CONFIGURING THE CONCENTRATOR MODULE Position the hardware jumper on the proper pins on the concentrator module to select either 4 or 16 Mbit/s as the default network ring speed (see Figure 3-1). The speed setting is a factor in determining the maximum lobe length. -
Page 20: Connecting Lobe Cabling
The connector is then turned to lock it down. CONCENTRATOR MODULE TRMM KNURLED TRFMIM-22 KNOBS MGMT 16 MB FLNK FLNK FLNK FLNK... - Page 21 • The physical communication link consists of two strands of fiber optic cabling: the Transmit (TX) and the Receive (RX). The Transmit strand from the applicable port on the module will be connected to the Receive port of a fiber optic device at the other end of the segment.
-
Page 22: Finishing The Installation
INSTALLING THE CONCENTRATOR MODULE front of the repeater (see Figure 3-3). Attach the Receive cable at the appropriate RX (ST) connector. Figure 3-3 ST Fiber Optic Ring Connections 3.5 FINISHING THE INSTALLATION With power on at the MMAC and the attached stations, check that the red Error LED on the concentrator module is not lit and no error indications exist at the attached stations. -
Page 23: Installation Checkout
TESTING AND TROUBLESHOOTING This section contains procedures to verify that the connections between the concentrator module and the token ring stations are functioning properly. A description of the LANVIEW LEDs is also provided. INSTALLATION CHECKOUT Perform the following to check the installation of the concentrator module: 1. -
Page 24: Testing And Troubleshooting
TESTING AND TROUBLESHOOTING b. Be sure that all devices in the ring network are set to the same ring speed. Check all MIMs and stations in the network. c. Check that the MIMs in the MMAC are grouped together according to network type and data rate. For example, Ethernet MIMs together, 4 Mbit/s token ring MIMs together, and 16 Mbit/s token ring MIMs together. - Page 25 The LANVIEW LED locations are shown in Figure 4-1. While the TRFMIM-26 is shown in the illustration, the locations and definitions apply to all concentrator modules. Label Color 16 Mb Yellow MGMT Green FLNK Green Green Flashing Green - Station is inserted, but the port is Figure 4-1 LANVIEW LEDs TESTING AND TROUBLESHOOTING TRFMIM-26...
