9C300-1 Environmental Module Operation

External Ambient Temperature

The 9C300-1 Environmental Module includes an external ambient temperature
sensor. This sensor is located on the front of the Environmental Module, as shown
in Figure 3-2. The ambient temperature is monitored and the results of the
monitoring are available to the network manager via the LCD, as well as local and
remote management.
Table 3-1 lists the ambient temperature information available to the network
manager.
3-2
MMAC
1 2 3 4 5
External ambient temperature sensor

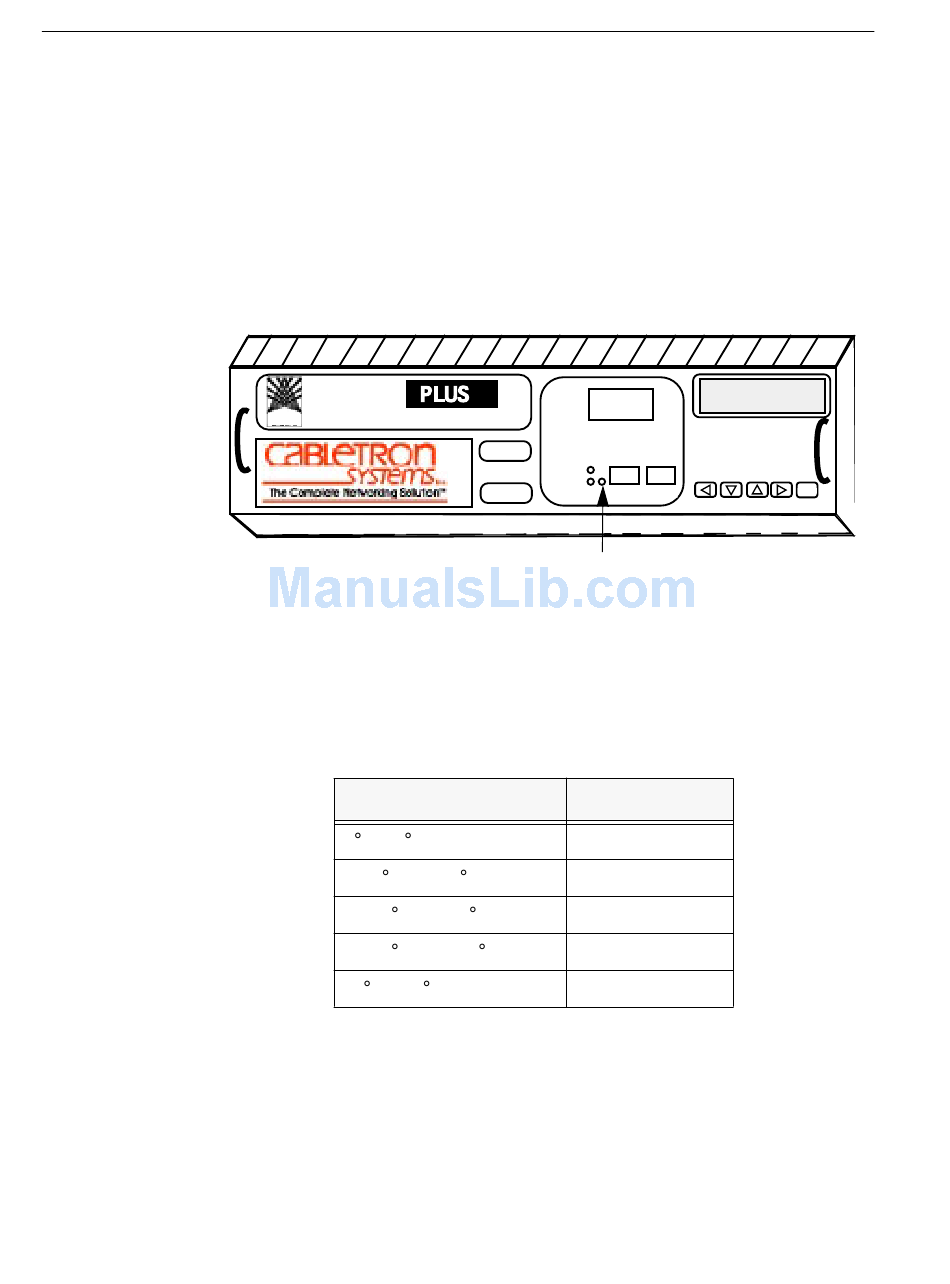

Figure 3-2. External Ambient Temperature Sensor
Table 3-1. External Ambient Temperature
Temperature Range
6 C/43 F and below
7–12 C/44–54 F
13–32 C/55–90 F
33–38 C/91–101 F
39 C/102 F and above
EPIM
STATUS
ALARM
9C300-1 COM 1 COM 2
6 7 8 9 10
LCD Display
COLD
COOL
NORM (normal)
WARM
HOT
ENTER
11 12 13 14
