- Page 1 Directional Speaker Model DS100 100-watt speaker Description, Specifications, and Installation Manual 25500713 Rev. A0 0222 Printed in U.S.A. © Copyright 2022 Federal Signal Corporation...
- Page 2 A copy of this limited warranty can also be obtained by written request to Federal Signal Corporation, 2645 Federal Signal Drive, University Park, IL 60484, email to info@fedsig.com or call +1 708-534-3400.
-
Page 3: Table Of Contents
Using Optional Warning Lights ..........................23 Closing the Housing ............................25 Applications ................................26 Configuring the RF100 with the DS100 (120 VAC) ...................26 Wiring Power to the Interconnect Board ....................26 Wiring AC to the Interconnect Board ......................26 Wiring Audio to the Amplifier Board ......................26 Wiring Relays to the Interconnect Board ....................27... - Page 4 Configuring the 300VSC SelecTone with the DS100 (120 VAC) ..............28 Wiring Power to the Interconnect Board ....................28 Wiring Audio to the Amplifier Board ......................29 Getting Service ..............................30 Appendix A Wiring Diagrams ..........................31 Figures Figure 1 DS100 Speaker with 225XL light ......................10 Figure 2 Bracket attached to speaker........................14...
- Page 5 Tables Table 1 Ordering Information ..........................10 Table 2 Electrical ..............................10 Table 3 Electrical Ratings .............................10 Table 4 Visual Indications ............................. 11 Table 5 Connectors (Interconnect board) ......................11 Table 6 Connectors and Indicator (Power Supply Board) ................. 11 Table 7 Connectors and Controls (Amplifier Board) ..................12 Table 8 Environmental and Physical ........................12 Table 9 Speaker Mounting Options ........................13 Description, Specifications, and Installation Manual...
-
Page 6: Safety Messages
National Electrical Code and/or Electrical Code and will follow the NEC and/or CEC Guidelines as well as all local codes. This DS100 Speaker should be considered a part of the warning system and not the entire warning system. - Page 7 For optimum sound distribution, do not install this speaker where objects would block any portion of the front of the DS100 Speaker. • Do not paint the DS100 Speaker. No finish or coating is required. Paint may obstruct the sound output, reducing the effectiveness of the horn. •...
- Page 8 Safety Messages and trainees. Also give a copy to anyone who is going to service or repair the DS100 Speaker. • To reduce the risk of electric shock, do not perform any servicing other than what is contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified service personnel.
-
Page 9: General Description

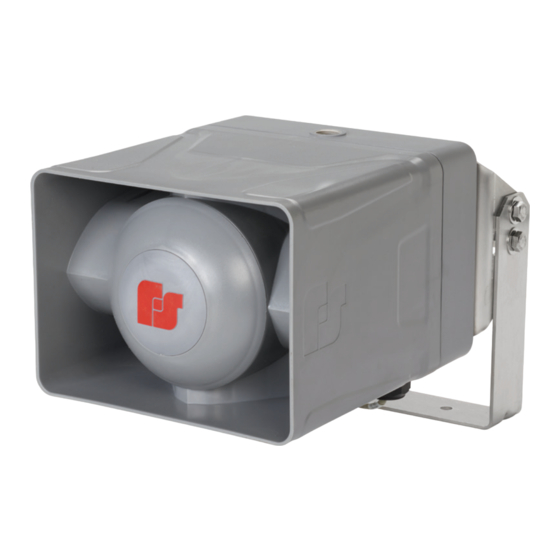

DS100 has an internal 100-watt amplifier/driver to deliver tone warnings and intelligible voice messages from the controlling speaker’s stored memory. The DS100 is powered from either 120/240 Vac or 24 Vdc. When the DS100 is powered from AC, it can use the Interconnect Board to activate AC-powered visual alert devices. -
Page 10: Ordering Information
I-IP100-OMNI Omni directional option for speaker with hardware NOTE: You can connect the DS100 to other Federal Signal speakers. Contact Technical Support. See “Applications” on page 26. The following are pictures of the DS100 Speaker shown with optional 225XL Warning Light. -
Page 11: Table 4 Visual Indications
• Pins 7 and 8 for relay out #4 Power in Power out Use to connect AC power to an additional DS100 unit. Local power Table 6 Connectors and Indicator (Power Supply Board) Transformer Primary 1 – Primary #2 upper, BLU 2 –... -
Page 12: Table 7 Connectors And Controls (Amplifier Board)
For AC units, factory wired For DC units, disconnect and remove the wires and add 24 Vdc input See “Figure 13 DS100 Wiring Schematic for DC Powered Unit” on page 22. Audio Transformer Connection 1 – Transformer secondary high, BLU 2 –... -
Page 13: Installation
U-bolts are provided for pipe mounting. diameter poles) Wall Mounting The DS100 Speaker comes standard with a bracket for vertical wall or pole mount with optional pole accessories. The standard mount can be flipped to allow ceiling mount. To wall mount the DS100 Speaker: Find a suitable location to mount speaker. -
Page 14: Attaching The Mounting Brackets To The Speaker Housing
Installation Attaching the Mounting Brackets to the Speaker Housing The DS100 Speaker comes standard with a bracket attached. To attach the bracket to the speaker: The mounting brackets are attached to the speaker, as shown below, using the six supplied 1/4-20 by 5/8-inch screws. -
Page 15: Figure 4 Depth And Height With Bracket
Installation Figure 4 Depth and height with bracket 6.68" (16.97 cm) 2.53" (6.43 cm) 10.09" 2.00" (25.63 cm) (5.08 cm) 12.87" (32.69 cm) Figure 5 Top view of speaker 1/2" NPT Sealed from the factory 12.87" (32.69 cm) 10.09" (25.63 cm) 8.90"... -
Page 16: Pole Mounting
Installation Figure 6 Ceiling mount Pole Mounting The DS100 comes standard with a bracket for vertical wall or pole mount with optional pole accessories. Large Pole Mounting (6-inch diameter or larger) Use the I-IP100-PMW bracket kit for poles that have a diameter of 6 inches or larger. -
Page 17: Small Pole Mounting (2-3/8 Inch To 4-1/2 Inch Diameter Poles)
Installation Small Pole Mounting (2-3/8 inch to 4-1/2 inch diameter poles) Use the I-IP100-PM bracket kit for poles that have a diameter between 2-3/8 and 4-1/2 inches. Use the following procedure if mounting the speaker with the optional I-IP100-PM bracket: Find a suitable location to mount the speaker. Use industry- or company-preferred practices when attaching hardware to poles or other structures. -
Page 18: Mounting With Omni Direction Bracket (2-3/8 Inch Diameter Pole)
Use the following procedure if mounting the speaker with the optional I-IP100-OMNI bracket: Identify the desired location for the bracket. Attach the bracket using the supplied U-bolts and hardware. Figure 9 Bracket I-IP100-OMNI 2.0" (5.08 cm) Omni Bracket Directional Speaker (Model DS100) Federal Signal www.fedsig.com... -
Page 19: Mounting Without Bracket
Installation Mounting without Bracket You can mount the speaker directly to the mounting surface without the bracket. Use installer-supplied 1/4-20 fasteners that are suitable for the mounting surface. See Figure 11 for the hole center dimensions. Figure 10 Surface mount hole center dimensions 7.39"... -
Page 20: Wiring The Boards
Relay outputs from the controlling speaker are connected to JP1. They pass on to JP2 and can be connected to an additional DS100 if used. You can attach a light to the DS100 and connect it to one of the four relay outputs on JP3. Each relay output can handle a maximum total load of 1 ampere. -
Page 21: Figure 12 Ds100 Wiring Schematic For Ac Powered Unit
Installation Figure 12 DS100 Wiring Schematic for AC Powered Unit Interconnect Board Local Power Local Relay Outputs Relay Outputs out Power in Power out Relay Outputs in (Factory wired) AC input (Factory wired) Audio in Fuse Fuse Audio out 120/240 VAC... -
Page 22: Figure 13 Ds100 Wiring Schematic For Dc Powered Unit
Installation Figure 13 DS100 Wiring Schematic for DC Powered Unit Interconnect Board Local Power Local Relay Outputs Relay Outputs out Power in Power out Relay Outputs in (Factory wired) 24 Vdc input Disconnect and remove wires Audio in Fuse Fuse... -
Page 23: Using Optional Warning Lights
Pins 5 and 6 for relay out #3 • Pins 7 and 8 for relay out #4 See the following list of Federal Signal DC powered warning lights that may be used with the DS100: • 121A Vitalite ® Rotating Warning Light •... -
Page 24: Figure 14 Fb2Pst Strobe With Ds100 Speaker
Installation Figure 14 FB2PST Strobe with DS100 Speaker Pipe Nipple 1/2" NPT Pipe Nipple, 3" overall length (Recommended, customer supplied) Side View For a FB2PST Strobe, the following is recommended (customer supplied): 1/2-inch NPT Pipe Nipple (3 inches overall length). -
Page 25: Closing The Housing
Verify that the cover gasket is in the groove around the perimeter of the rear cover. If the front of the unit was removed, lift the front of the DS100 to allow the hinge pin to be installed, align the front unit with the rear cover, and attach the hinge pin with the retaining clip. -
Page 26: Applications
JP6 on the Interconnect Board connects to the DS100’s Power Supply Board. Wiring AC to the Interconnect Board To wire AC between the DS100s: connect from JP5 on the DS100 to JP4 on the next DS100. Wiring Audio to the Amplifier Board Audio from JP2 on the RF100 controller board is brought to JP3 on the DS100 amplifier board. -
Page 27: Wiring Relays To The Interconnect Board
DS100. They pass on to JP2 and can be connected to an additional DS100. You can attach a light to the DS100 and connect it to one of the four relay outputs on JP3. Each relay output can handle a maximum total load of 1 ampere. -
Page 28: Configuring The Rf100 With The Ds100 (24 Vdc)
Wiring Audio to the Amplifier Board Audio is brought over from the RF100 at JP2 to the Amplifier Board at JP3. Audio comes back out of the Amplifier Board on JP7 and can be connected to an additional DS100. To wire audio to the DS100: Ensure all audio potentiometers are set to the max by default on both the RF100 and DS100s by turning the post of the potentiometer all the way up (fully clockwise). -
Page 29: Wiring Audio To The Amplifier Board
Ensure all audio potentiometers are set to the max by default by turning the post of the potentiometer all the way up (fully clockwise). Set the jumper JP5 on the DS100 Amplifier Board from the 10 V to 25 V S position to make it compatible with the 300VSC audio output. -
Page 30: Getting Service
If you are experiencing any difficulties, contact Federal Signal Customer Support at 800-548-7229 or 708-534-3400 extension 7511 or Technical Support at 800-524-3021 or 708-534-3400 extension 7329 or through e-mail at techsupport@fedsig.com. For instruction manuals and information on related products, visit http://www.fedsig.com/. Directional Speaker (Model DS100) Federal Signal www.fedsig.com... -
Page 31: Appendix A Wiring Diagrams
L1/Hot Audio RTU Numbering To AC JP14 Relay 1 Output connected to Device Local Power Local Relay Outputs three DS100 (120 VAC) L2/Hot To AC Relay 2 Device L3/Hot To AC Relay 3 JP11 Device Relay Outputs out Power in... -
Page 32: Figure 20 Rf100 Connected To Three Ds100S (24 Vdc) Wiring Diagram
Audio To AC Relay 1 Output JP14 To optional connected to Device L1/NUE Local Power Local Relay Outputs DC light three DS100 (24 VDC) L2/Hot To AC Relay 2 Device L2/NUE L3/Hot To AC Relay 3 JP11 Device L3/NUE Power out... -
Page 33: Figure 21 300Vsc Selectone Connected To Three Ds100S (120 Vac) Wiring Diagram
One 300VSC (120 VAC) connected to Local Power Local Relay Outputs three DS100 (120 VAC) 2 3 4 5 6 9 10 11 12 13 14 15 16 17 2 3 4 7 8 9 10 11 12 13 14 15 16...
