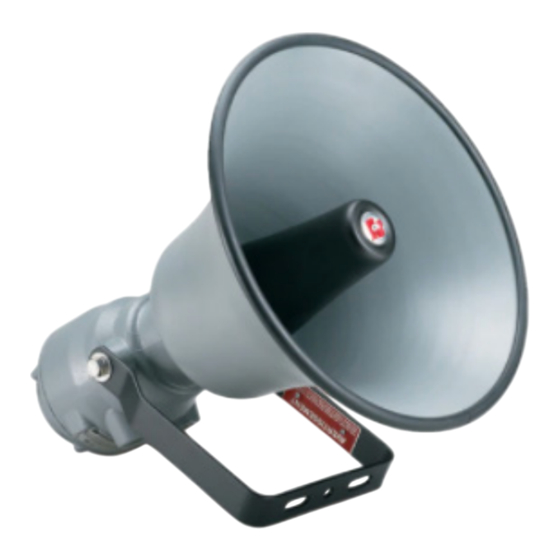

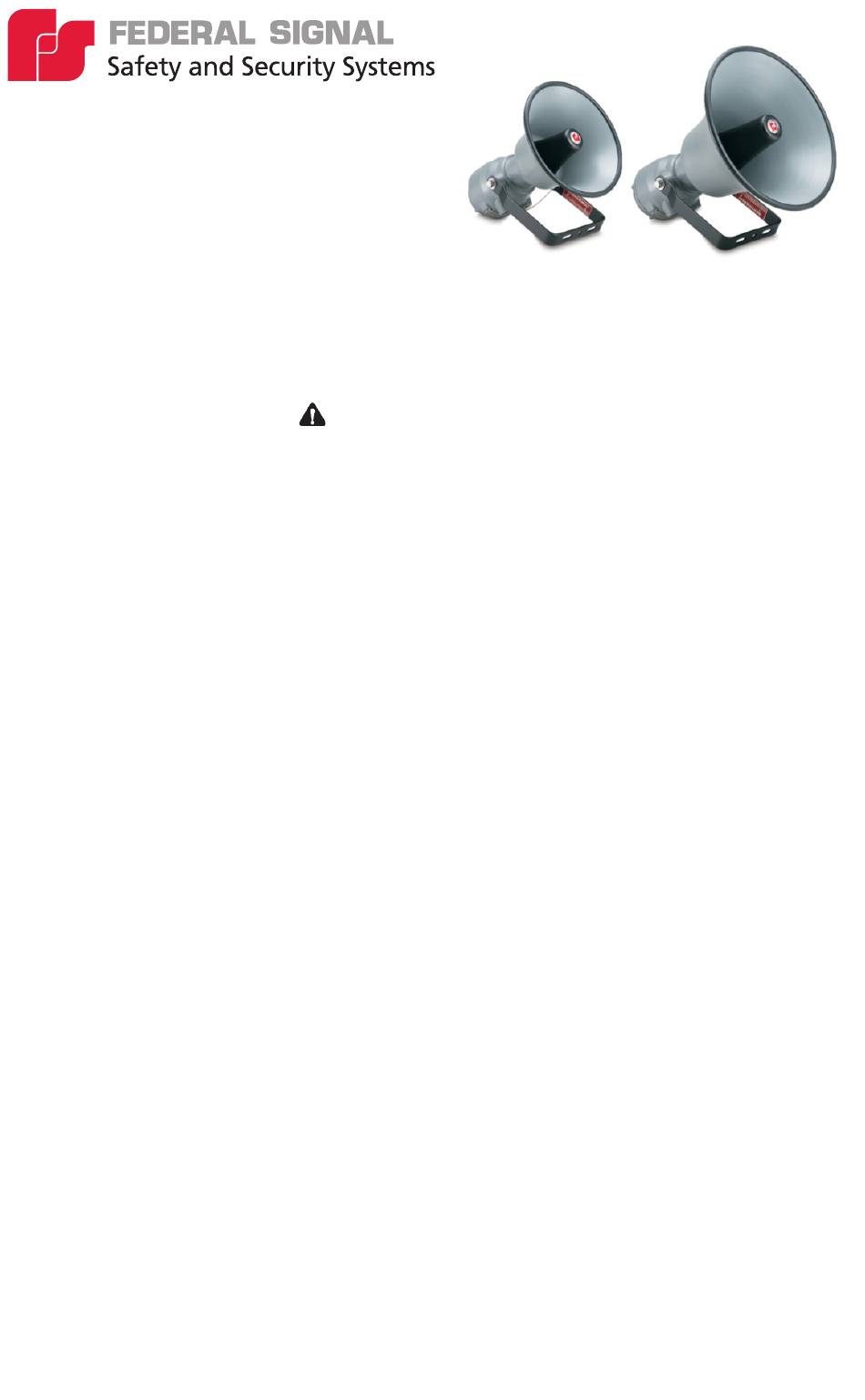

Model AM300X
AudioMaster
Explosion-Proof
®
Speaker
Limited Warranty: This product's limited warranty can be found at www.fedsig.com/SSG-Warranty.
WARNING - Failure to follow all safety precautions and instructions may result in property damage, serious injury, or
death to you or others.
MESSAGES TO INSTALLERS AND USERS
important to follow all instructions shipped with the products. This device is to be installed by a trained electrician who
is thoroughly familiar with the National Electric Code and will follow the NEC guidelines as well as local codes.
The selection of the mounting location for the device, its controls and routing of the wiring is to be accomplished
under the direction of the Facilities Engineer and the Safety Engineer. Listed below are some other important safety
instructions and precautions you should follow.
•
Read and understand instructions before installing or operating equipment.
•
Do not connect this unit to the system when power is on.
•
All effective warning speakers produce loud sounds which may cause, in certain situations, permanent hearing
loss. You should take appropriate precautions such as wearing hearing protection.
•
After installation, test the sound system to ensure proper operation.
•
All effective warning speakers produce loud sounds, which may cause, in certain situations, permanent hearing
loss. The device should be installed far enough away from potential listeners to limit their exposure while still
maintaining its effectiveness.
•
The OSHA Code of Federal Regulations 1910.95 Noise Standard provides guidelines which may be used regarding
permissible noise exposure levels.
•
Show these instructions to your Safety Engineer and then file them in a safe place and refer to them when
maintaining and/or reinstalling the unit.
•
After installation and completion of initial system test, a program of periodic testing of this device must be
established. Refer to NFPA 72G, local Fire Codes and the authority having jurisdiction for this information.
•
Consult the authority having jurisdiction in your area regarding the proper use and installation of this product.
SHOCK HAZARD - To avoid electrical shock hazards, do not connect wires when power is applied.
Overview: The AudioMaster Model AM300X is a 25 V
(1, 2, 7, or 15 watts), hazardous location loudspeaker for use with fire alarm and general signaling systems such as
Federal Signal's SelecTone
designed to reproduce electronically generated warning tones, which command rapid recognition, and full range voice
communication. An adjustable mounting bracket is provided to allow positioning for desired sound coverage.
People's lives depend on your safe installation of our products. It is
system. This model is suitable for use -2- in areas with high ambient noise levels. It is
®
and 70 V
, indoor/outdoor rated, selectable power output
RMS
RMS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AudioMaster AM300X and is the answer not in the manual?

Questions and answers

Related Manuals for Federal Signal Corporation AudioMaster AM300X

Summary of Contents for Federal Signal Corporation AudioMaster AM300X

  • Page 1 Model AM300X AudioMaster Explosion-Proof ® Speaker Limited Warranty: This product’s limited warranty can be found at www.fedsig.com/SSG-Warranty. WARNING - Failure to follow all safety precautions and instructions may result in property damage, serious injury, or death to you or others. MESSAGES TO INSTALLERS AND USERS People’s lives depend on your safe installation of our products.

  • Page 2: Installing The Speaker

    Table 1 Specifications Operating Voltage 25 V or 70 V Power Input (selectable) 1 W, 2 W, 7 W, and 15 W Maximum Supervisory Voltage 50 Vdc Weight (approx.) 15.7 lb (7.1 kg) Size (L x H x W) 16.3" x 17.0" x 13.1" (41.4 x 43.2 x 33.3 cm) Construction Aluminum enclosure and adjustable steel mounting bracket with a powder coat finish...

  • Page 3: Electrical Connections

    Figure 1 1.8" (46mm) TO REMOVE COVER 13.1" (333mm) 17.0" (432mm) 16.3" (414mm) 8.9" (226mm) 290A5445 CAUTION - Before drilling holes in any surface, be sure both sides of the surface are clear of anything that could be damaged. Drill holes at the previously scribed drill position marks to accommodate 1/2" diameter screws. Secure the bracket to the mounting surface with 1/2"...
  • Page 4 Figure 2 + Red - Black + Red A. Model AM300X B. 25 or 70 V Speaker Signal Source - Black 290A5446 Figure 3 Connect the white speaker wire to the appropriate line voltage (25 V or 70 V), depending upon the external source voltage.

  • Page 5: Maintenance And Service

    Connect the white speaker wire to the terminal marked with the desired operating voltage, 25 V or 70 V . See Figure 3. Carefully reinstall the housing cover and tighten it until the cover flange makes contact with the housing. Tighten the setscrew on the cover to secure the cover.

  • Page 6: Limited Warranty

    This product is subject to and covered by a limited warranty, a copy of which can be found at www.fedsig.com/SSGWar- ranty. A copy of this limited warranty can also be obtained by written request to Federal Signal Corporation, 2645 Federal Signal Drive, University Park, IL 60484, email to info@fedsig.com or call +1 708-534-3400.
  • Page 7 Consulte a las autoridades competentes en su área sobre el uso y la instalación correcta de este producto. RIESGO DE DESCARGA ELÉCTRICA - Para evitar riesgos de descarga eléctrica, no conecte los cables mientras se aplica corriente. General: EEl modelo AudioMaster AM300X es un altavoz de 25 V y 70 V con salida de energía seleccionable (1, 2, 7 ó...

  • Page 8: Instalación

    Tabla 1 Especificaciones Voltaje de operación 25 V o 70 V Entrada de energía (seleccionable) 1 vatio, 2 vatios, 7 vatios y 15 vatios Voltaje de supervisión máximo 50 Vdc Peso (aprox.) 7,1 kg (15,7 lb) Tamaño 414 mm (16,3 pulg) de largo, 432 mm (17,0 pulg) de alto, 333 mm (13,1 pulg) de ancho Construcción Caja de aluminio y soporte de montaje ajustable de acero con un acabado de...

  • Page 9: Conexiones Eléctricas

    Figura 1 1.8" (46mm) TO REMOVE COVER 13.1" (333mm) 17.0" (432mm) 16.3" (414mm) 8.9" (226mm) 290A5445 PRECAUCION - Antes de perforar los agujeros, asegúrese de que no hay nada que se pueda dañar en los dos lados de la superficie. Perfore los agujeros en las marcas de posición que trazó...
  • Page 10 Conecte los cables comunes de audio (-) al terminal común de 25V o 70V, dependiendo de la tensión de funcionamiento deseada y los cables positivos de audio (+) al terminal de potencia deseado. Consulte las Figuras 2 y 3. Figura 2 + Rojo - Negro + Rojo...

  • Page 11: Mantenimiento Y Servicio

    ADVERTENCIA - NO se debe enrollar una porción no aislada de un mismo conductor alrededor de un terminal para usarlo como dos conexiones separadas. NFPA 72 exige que se usen cables separados para proporcionar control eléctrico de la conexión. Conecte el cable del altavoz blanco a la terminal marcada con la tensión de funcionamiento deseada, 25 V 70 V .

  • Page 12: Garantía Limitada

    ADVERTENCIA - Se debe mantener la efectividad a prueba de explosiones de la caja. Evite dañar las superficies maquinadas. PELIGRO DE EXPLOSIÓN - La sustitución de cualquier componentes puede deteriorar la idoneidad para Clase I,División 2 y Clase I, Zona 2.Este equipo es apropiado para uso en la Classe I, División 1, Groupos B, C y D; Clase I, División2, Grupos A, B, C y D;...
  • Page 13 2645 Federal Signal Drive, University Park, Illinois 60484 Additional translations available at signaling.fedsig.com Traducciones adicionales disponibles en signaling.fedsig.com Atención al cliente 1-800-344-4634+1-708-534-4756, iordersup@fedsig.com Soporte técnico 1-800-755-7621+1-708-587-3587, signalsupport@fedsig.com signaling.fedsig.com 2562142 Rev. A3 0921...
  • Page 14 RISQUES DE CHOCS ÉLECTRIQUES - Afin d’éviter les risques de chocs électriques, ne pas brancher de fils si le dispositif est sous tension. Généralités : LeLe modèle AudioMaster AM300X est un haut-parleur de 25 V et 70 Vrms, à usage intérieur et extérieur, à...

  • Page 15: Installation

    Tableau 1 Spécifications Tension de fonctionnement 25 V ou 70 V Puissance d’entrée (variable) 1W, 2W, 7W et 15 W Tension maximale de surveillance 50 V CC Poids (approx.) 7,1 kg (15,7 lb) Dimensions 414 mm (16,3 po) de long , 432 mm (17 po) de haut, 333 mm (13,1 po) de large Construction Enceinte d’aluminium et support de fixation ajustable en acier avec un fini à...

  • Page 16: Connexions Électriques

    Illustration 1 1.8" (46mm) TO REMOVE COVER 13.1" (333mm) 17.0" (432mm) 16.3" (414mm) 8.9" (226mm) 290A5445 ATTENTION - Avant de percer des trous sur une surface, s’assurer que ses deux faces sont exemptes de quoi que ce soit qui pourrait être endommagé. Percer des trous aux emplacements marqués précédemment pour pouvoir poser des vis de 1/2 po de diamètre.
  • Page 17 Illustration 2 + Rouge - Noir + Rouge A. Modèle AM300X B. Source sonore du haut-parleur 25 ou 70 V speaker signal source - Noir 290A5446 Illustration 3 Connectez le fil du haut-parleur blanc à la tension de ligne appropriée (25V ou 70V), en fonction de la tension de la source externe.

  • Page 18: Entretien

    Connectez le fil blanc du haut-parleur à la borne marquée avec la tension de fonctionnement désirée, 25 V 70 V . Voir la Illistration 3. Reposer soigneusement le couvercle du boîtier et le visser jusqu’à ce que la bride du couvercle fasse contact avec le boîtier.

  • Page 19: Maintenance Et Entretien

    Vous pouvez également obtenir une copie de la présente garantie limitée en envoyant une demande écrite à Federal Signal Corporation, 2645 Federal Signal Drive, University Park, IL 60484, en envoyant un e-mail à info@fedsig.com ou en appelant le +1 708-534-3400.
  • Page 20 2562142 Rev. A3 0921...
