BT5962

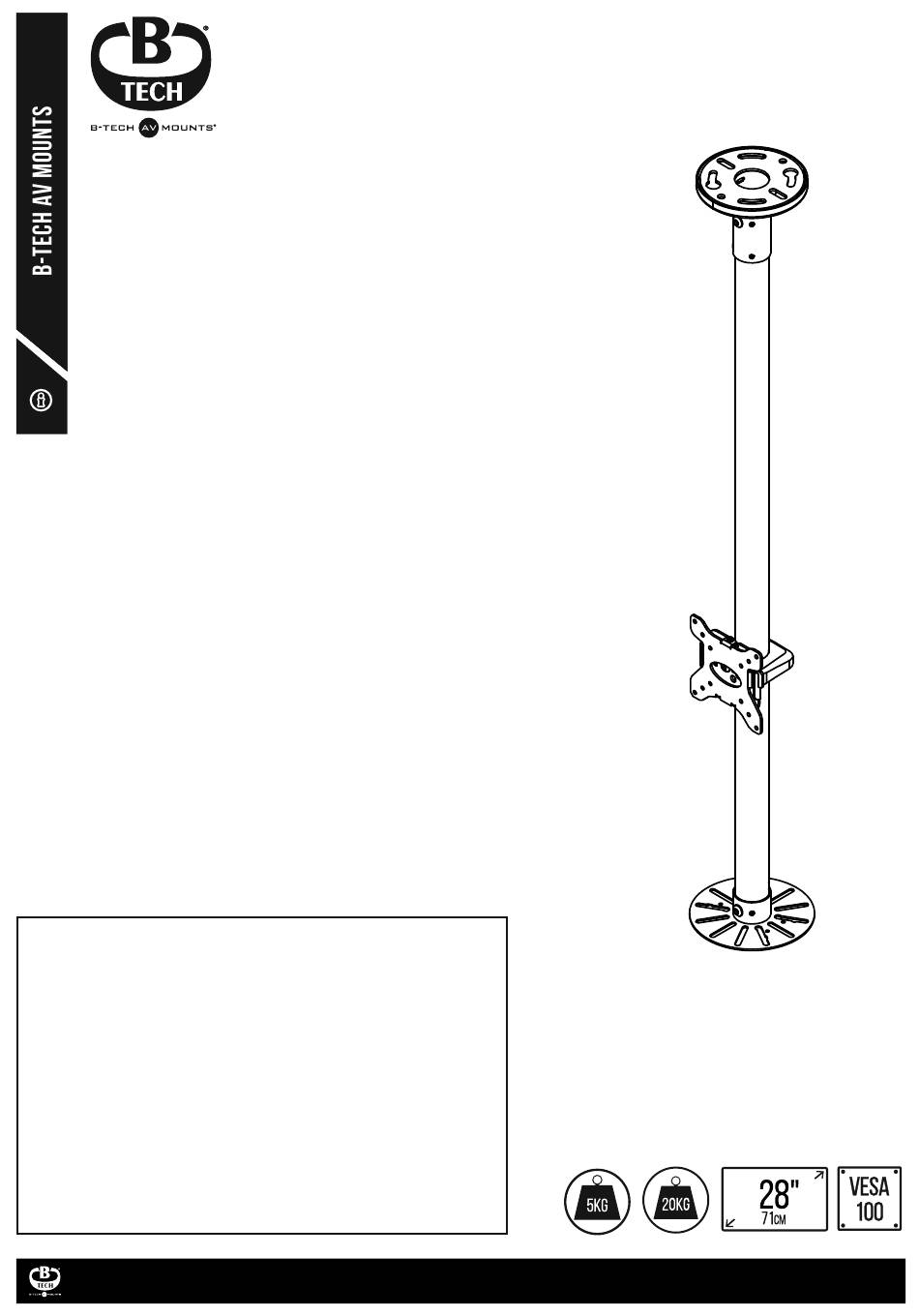

CEILING MOUNT
FOR a flat screen and a DOME CAMERA
INSTALLATION GUIDE
SPECIFICATIONS
• Mounts a flat screen and a dome camera from the ceiling
• Max load: 20kg (screen) / 5kg (camera)
• Available in two Ø38mm pole lengths:
BT5962-FD100 pole length 1000mm
BT5962-FD200 pole length 2000mm
• Recommended for screens up to 28"
• Suitable for screens with VESA fixings: 50 x 50mm,
75 x 75mm & 100 x 100mm
• Carousel suitable for cameras with fixings from
51mm up to 127.5mm apart
• Integrated cable management
www.btechavmounts.com
CAMERA
SCREEN
