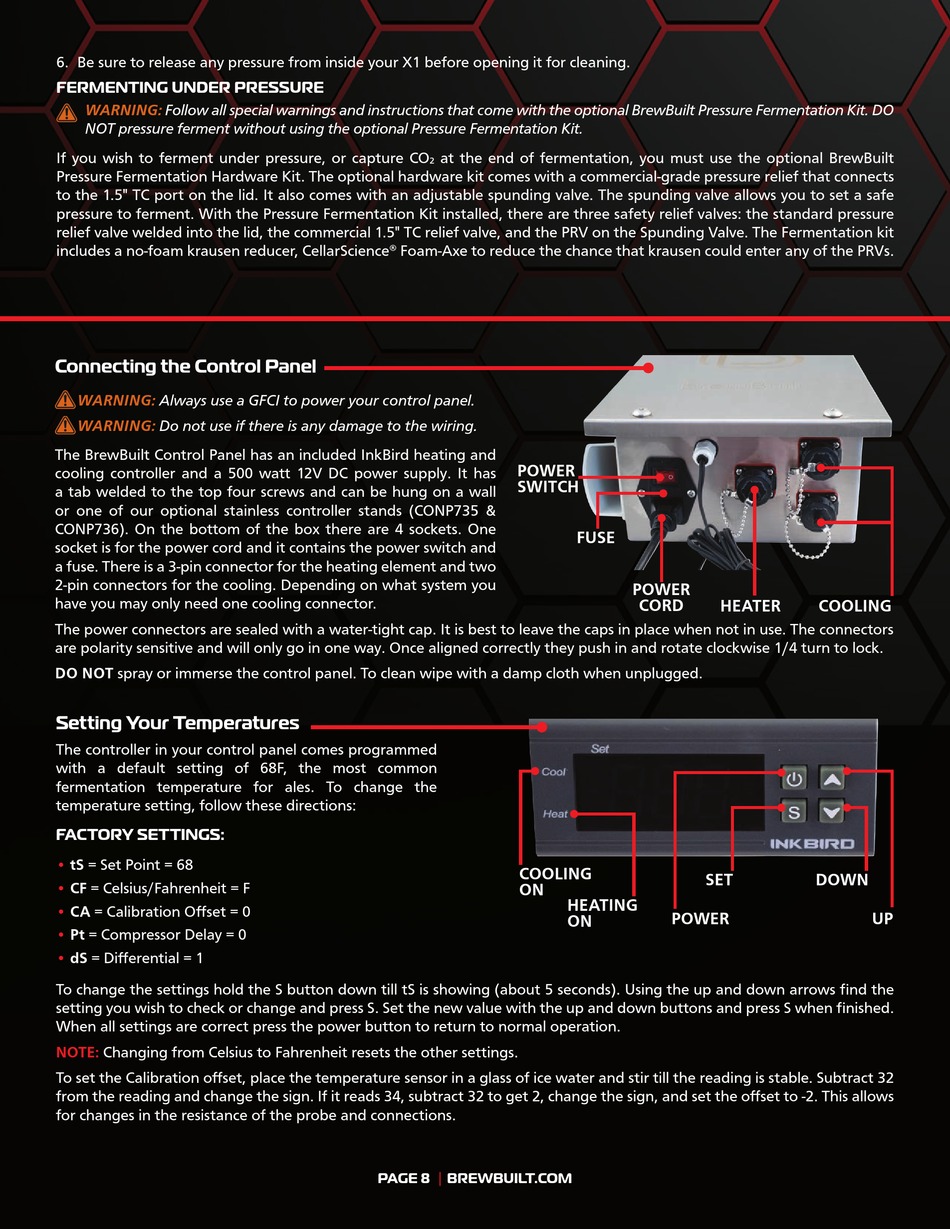

Factory Settings - BrewBuilt X1 UNI PRO Assembly And Instruction Manual

6. Be sure to release any pressure from inside your X1 before opening it for cleaning.
FERMENTING UNDER PRESSURE
WARNING: Follow all special warnings and instructions that come with the optional BrewBuilt Pressure Fermentation Kit. DO
NOT pressure ferment without using the optional Pressure Fermentation Kit.
If you wish to ferment under pressure, or capture CO
Pressure Fermentation Hardware Kit. The optional hardware kit comes with a commercial-grade pressure relief that connects
to the 1.5" TC port on the lid. It also comes with an adjustable spunding valve. The spunding valve allows you to set a safe
pressure to ferment. With the Pressure Fermentation Kit installed, there are three safety relief valves: the standard pressure
relief valve welded into the lid, the commercial 1.5" TC relief valve, and the PRV on the Spunding Valve. The Fermentation kit
includes a no-foam krausen reducer, CellarScience
Connecting the Control Panel
WARNING: Always use a GFCI to power your control panel.
WARNING: Do not use if there is any damage to the wiring.
The BrewBuilt Control Panel has an included InkBird heating and
cooling controller and a 500 watt 12V DC power supply. It has
a tab welded to the top four screws and can be hung on a wall
or one of our optional stainless controller stands (CONP735 &
CONP736). On the bottom of the box there are 4 sockets. One
socket is for the power cord and it contains the power switch and
a fuse. There is a 3-pin connector for the heating element and two
2-pin connectors for the cooling. Depending on what system you
have you may only need one cooling connector.
The power connectors are sealed with a water-tight cap. It is best to leave the caps in place when not in use. The connectors
are polarity sensitive and will only go in one way. Once aligned correctly they push in and rotate clockwise 1/4 turn to lock.
DO NOT spray or immerse the control panel. To clean wipe with a damp cloth when unplugged.
Setting Your Temperatures
The controller in your control panel comes programmed
with a default setting of 68F, the most common
fermentation temperature for ales. To change the
temperature setting, follow these directions:

FACTORY SETTINGS:

• tS = Set Point = 68
• CF = Celsius/Fahrenheit = F
• CA = Calibration Offset = 0
• Pt = Compressor Delay = 0
• dS = Differential = 1
To change the settings hold the S button down till tS is showing (about 5 seconds). Using the up and down arrows find the
setting you wish to check or change and press S. Set the new value with the up and down buttons and press S when finished.
When all settings are correct press the power button to return to normal operation.
NOTE: Changing from Celsius to Fahrenheit resets the other settings.
To set the Calibration offset, place the temperature sensor in a glass of ice water and stir till the reading is stable. Subtract 32
from the reading and change the sign. If it reads 34, subtract 32 to get 2, change the sign, and set the offset to -2. This allows
for changes in the resistance of the probe and connections.
at the end of fermentation, you must use the optional BrewBuilt
2
Foam-Axe to reduce the chance that krausen could enter any of the PRVs.
®
POWER
SWITCH
COOLING
ON
PAGE 8 BREWBUILT.COM
FUSE
POWER
CORD HEATER
SET
HEATING
POWER
ON
COOLING
DOWN
UP
