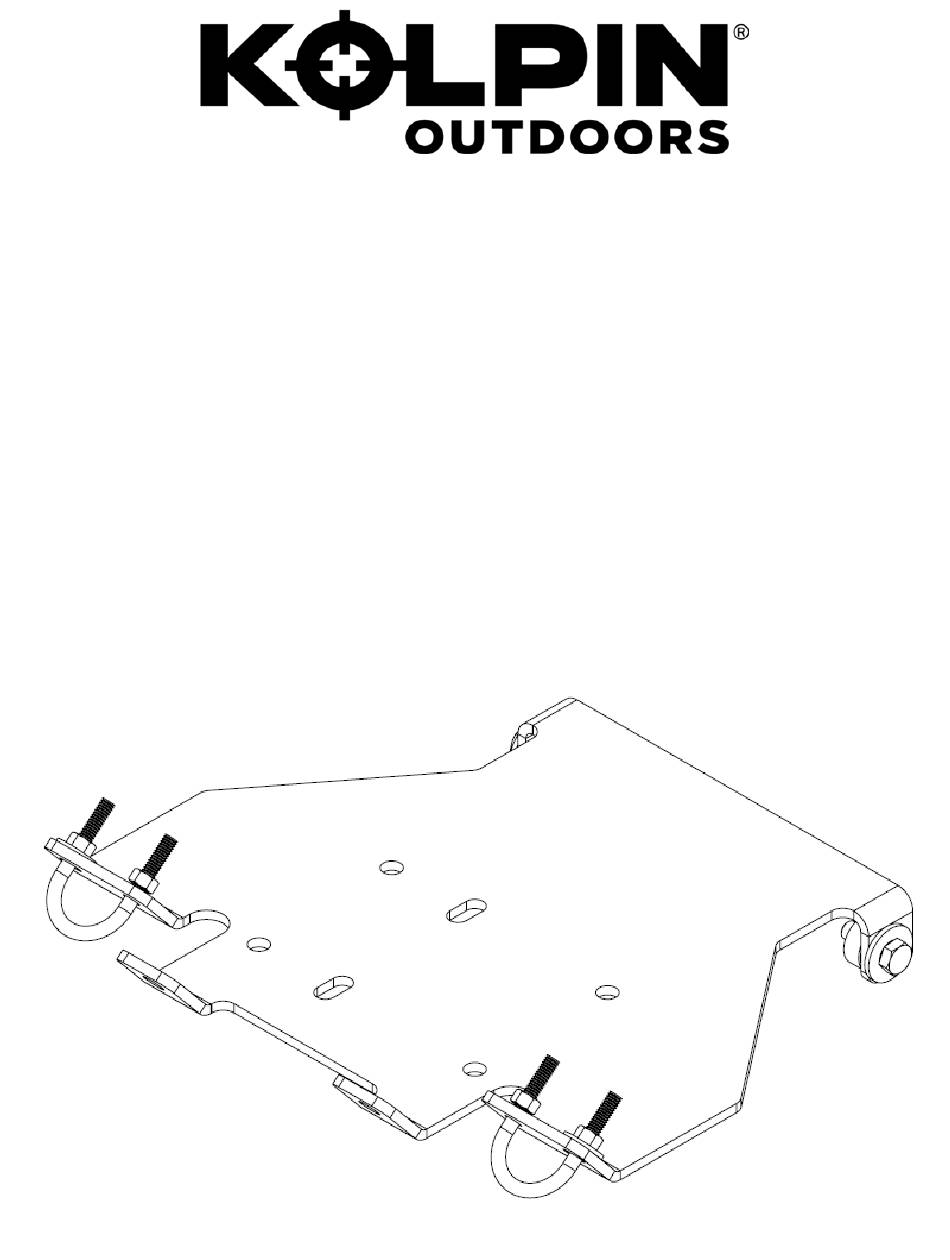

WINCH MOUNT KIT
FOR HONDA FOREMAN 500 / RUBICON 500
P/N 25-1200
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before You Begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2019 Kolpin Outdoors Inc.
REV 04
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 25-1200
Summary of Contents for Kolpin Outdoors 25-1200
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2019 Kolpin Outdoors Inc. REV 04...
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2019 Kolpin Outdoors Inc. REV 04...
- Page 3 Round U-Bolt, Zinc Plated, M6-1.0 x 30mm x 50mm Flat Washer, Zinc Plated, M6 Flat Washer, Zinc Plated, M8 Locknut, Zinc Plated, M6-1.0 Hex Bolt, Zinc Plated, M8-1.25 x 25mm LG Instruction Guide (not shown) © 2019 Kolpin Outdoors Inc. REV 04...
- Page 4 Steel Bushing Spacer 7/8” Round U-Bolt, Zinc Plated, M6-1.0 x 30mm x 50mm Flat Washer, Zinc Plated, M6 Flat Washer, Zinc Plated, M8 Locknut, Zinc Plated, M6-1.0 Hex Bolt, Zinc Plated, M8-1.25 x 25mm LG © 2019 Kolpin Outdoors Inc. REV 04...
- Page 5 (See illustrations 1-3 and 1-4). Rock Guard Ill. 1-1 Fasteners Ill. 1-2 Ill. 1-3 Ill. 1-4 © 2019 Kolpin Outdoors Inc. REV 04...
- Page 6 (item #4) over the slotted holes and fasten with M6 locknuts (item #6). 6. Torque all mount fasteners to specifications. Ill. 1-5 Ill. 1-6 6MM FASTENER TORQUE: 7 ft. lbs. (9.5 Nm) 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) © 2019 Kolpin Outdoors Inc. REV 04...
- Page 7 11. Reconnect red positive (+) cable and black negative (-) cable to battery. 12. With the vehicle key in the ON position, check winch Ill. 1-8 Rock Guard for proper operation. 13. Retighten all hardware after 30 minutes of riding. © 2019 Kolpin Outdoors Inc. REV 04...
- Page 8 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2019 Kolpin Outdoors Inc. REV 04...
