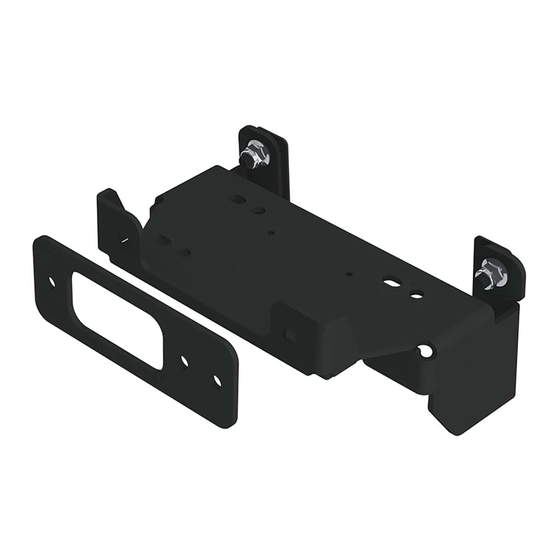

WINCH MOUNT KIT
FOR KAWASAKI MULE PRO-FX / FXT / FXR / DX / DXT
P/N 25-2370
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before You Begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2021 Kolpin Outdoors Inc.
REV 00
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors KAWASAKI MULE PRO-FX
Summary of Contents for Kolpin Outdoors KAWASAKI MULE PRO-FX

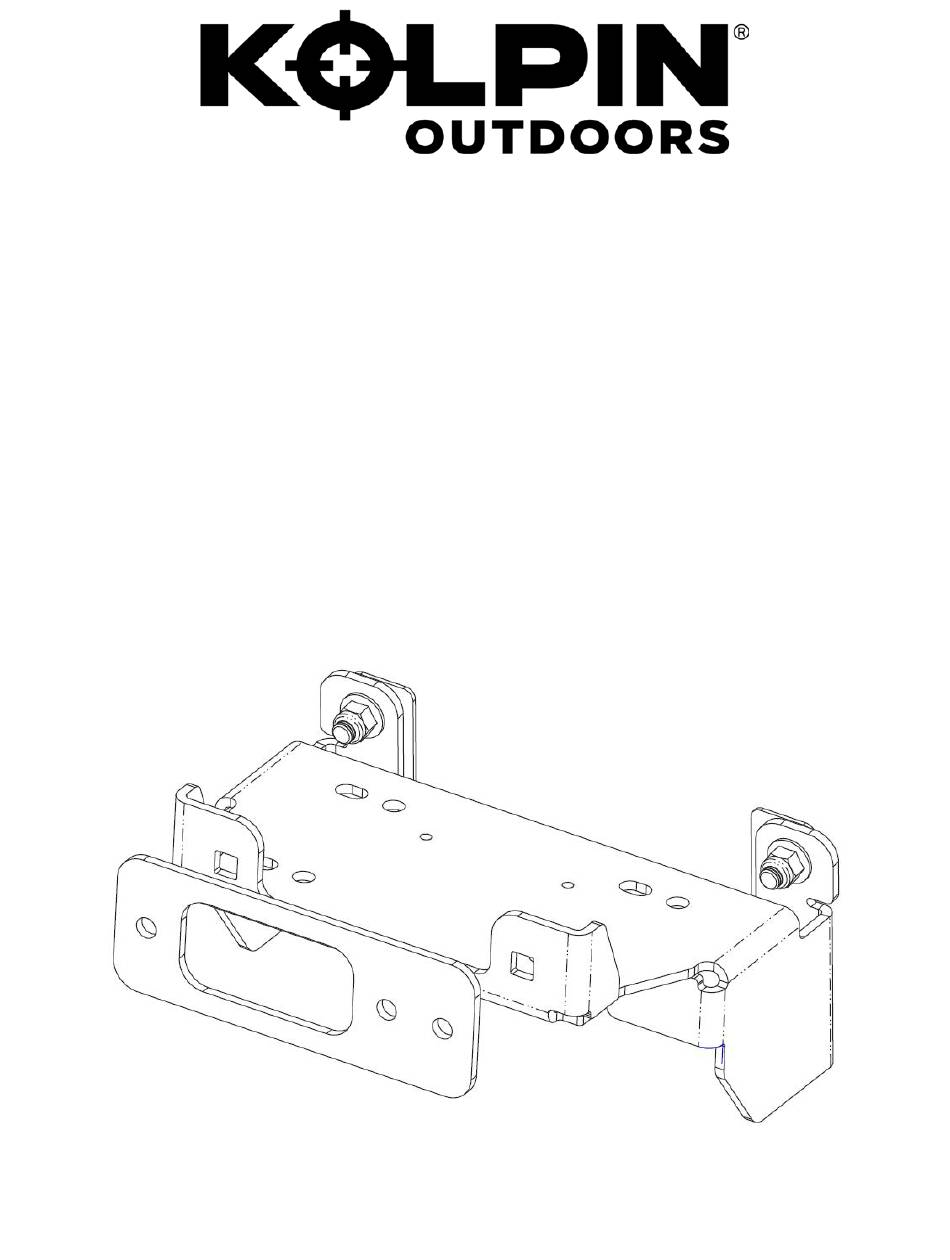

- Page 1 WINCH MOUNT KIT FOR KAWASAKI MULE PRO-FX / FXT / FXR / DX / DXT P/N 25-2370 ASSEMBLY / OWNERS MANUAL Application WINCH KIT NO. 25-9xxx Before you begin, please read these instructions and check to be sure all parts and tools are accounted for.
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 3 Kit Contents: Item Qty Part Description Part Number Winch Mount Plate Mounting Bolt Plate Hex Flange Locknut, Zinc Plated, M10-1.5 Fairlead Adapter Plate CYC6425 Instruction Guide (not shown) © 2021 Kolpin Outdoors Inc. REV 00...
- Page 4 Note: If any hardware is missing, do not return to the store. Call us to help, Toll Free 1-877-956-5746. Mount bracket (item #1) has pre-drilled holes for mounting Kolpin contactor (provided with winch kit) onto underside of bracket as shown in image to the right. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 5 M10 locknuts (item #3) as shown. (See illustrations 1-4 and 1-5). Bumper 6. Tighten to specifications. Mtg Screws 10MM FASTENER TORQUE: Ill. 1-4 34 ft. lbs. (46 Nm) Vehicle Frame Ill. 1-5 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 6 17 ft. lbs. (23 Nm) 11. Using the OEM hardware, reinstall the front bumper to the vehicle frame. All hardware can be tightened to OEM specifications. (See illustration 1-10). Roller Hardware included Fairlead with winch Ill. 1-8 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 7 (negative) cables to battery terminals at this time using original hardware. 20. Reinstall the hood and battery box cover. 21. With vehicle key in the ON position, check winch for proper operation. Ill. 1-11 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 8 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2021 Kolpin Outdoors Inc. REV 00...
