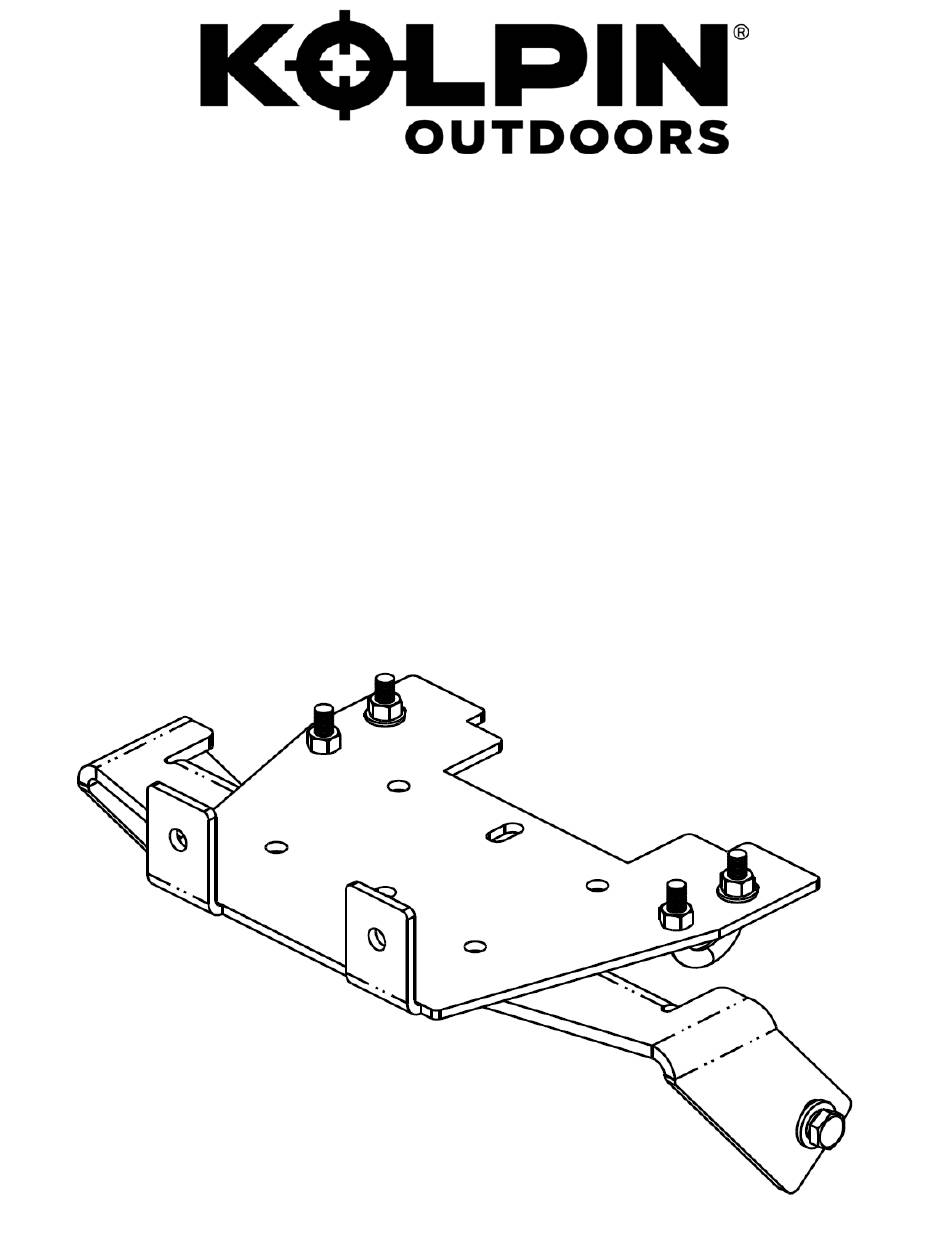

WINCH MOUNT KIT
FOR KAWASAKI MULE
P/N 25-2360
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before You Begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2020 Kolpin Outdoors Inc.
REV 01
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 25-2360
Summary of Contents for Kolpin Outdoors 25-2360
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2020 Kolpin Outdoors Inc. REV 01...
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2020 Kolpin Outdoors Inc. REV 01...
- Page 3 Flat Washer, Zinc Plated, M10 PUR3088 Lock Washer, Zinc Plated, M10 PUR3101 U-Bolts, Zinc Plated, M8-1.25 x 35mm x 50mm PUR3191 Hex Bolt, Zinc Plated, M10-1.25 x 30mm LG PUR3201 Instruction Guide (not shown) © 2020 Kolpin Outdoors Inc. REV 01...
- Page 4 For best fit, slight trimming of plastic grille is • recommended APPROXIMATE ASSEMBLY TIME: 30 minutes Note: If any hardware is missing, do not return to the store. Call us to help, Toll Free 1-877-956-5746. © 2020 Kolpin Outdoors Inc. REV 01...
- Page 5 Cut the plastic away from the location shown. high speed cutting tool (like a Dremel) with a cutting bit will also work Ill. 1-2 Location to be trimmed is marked with masking tape Item #4, #3 Item #7 Item #2 © 2020 Kolpin Outdoors Inc. REV 01...
- Page 6 Ill. 2-2 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) Hardware supplied with winch kit in rear two locations Ill. 2-3 Hardware supplied with winch kit in front two locations Item #1 Ill. 2-4 © 2020 Kolpin Outdoors Inc. REV 01...
- Page 7 Spooling the cable as shown will prolong cable life and enhance winch performance. (See illustration 2-6). Connect the hook to cable or rope using hardware included in winch kit. Ill. 3-1 © 2020 Kolpin Outdoors Inc. REV 01...
- Page 8 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2020 Kolpin Outdoors Inc. REV 01...
