SMART-AVI UHDN-4P-DUO Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO

Link Rate 5.4 Gbps/lane
Input Interface (8) HDMI (female) Version 2.0
Output Interface (2) HDMI (female) Version 2.0
Resolution 480i to 4Kx2K @ 60Hz (YUV420)
Input Equalization Automatic
Video Bandwidth 300 MHz, 10.2 Gbps
HDCP Compliant Yes
Input/Output
20 ft (depending on cable quality)
Max Cable Length

AUDIO

Input Interface (4) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Frequency Response 20Hz ~ 20KHz
Common Mode Rejection @ 60dB
Nominal Level 0.0 to 1.0 V

USB

USB 2.0, 1.1, and 1.0
Signal Type
w/ internal hub
Input Interface (4) USB Type B
(2) USB 1.1 Type A for K/M
Output Interface
(2) USB 2.0 Type A Transparent

CONTROL

Buttons (SELECT audio/video
Front Panel
source)
DB9 Female - 115200, N, 8, 1,
RS-232
No flow control
Hot Keys Via Keyboard
Emulation Keyboard, Video and Mouse

OTHER

Power External 100-240 VAC/ 5VDC4A
Dimensions 2" H x 5.75" D x 12.75" W
Weight 3.55 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
4-Port Dual Head
UHDN-4P-DUO-S 1 Ultra 4K-60Hz HDMI
KVM Switch
PS5VD4A 1 PS5VD4A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

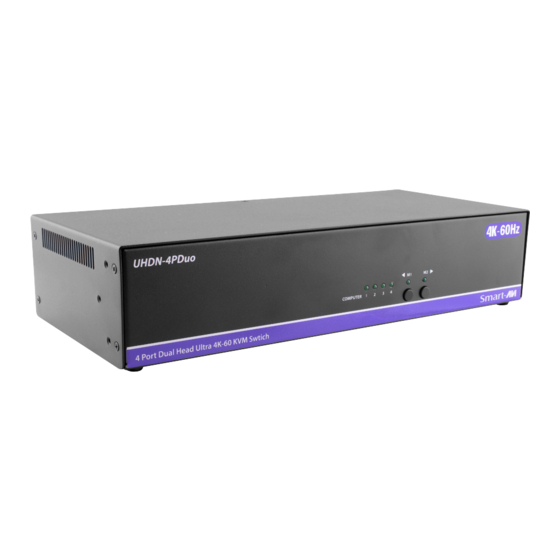

UHDN-4P-DUO
4-Port Dual Head
Ultra 4K-60Hz HDMI KVM
Switch with USB 2.0 and Audio
MANAGE 4 COMPUTERS FROM
A SINGLE WORKSTATION
Quick Start Guide
