SMART-AVI UHDN-4P Duo User Manual
4-port dual head ultra 4k-60hz hdmi kvm switch with usb 2.0 and audio support
Hide thumbs
Also See for UHDN-4P Duo:
- User manual (11 pages) ,
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for SMART-AVI UHDN-4P Duo
Summary of Contents for SMART-AVI UHDN-4P Duo

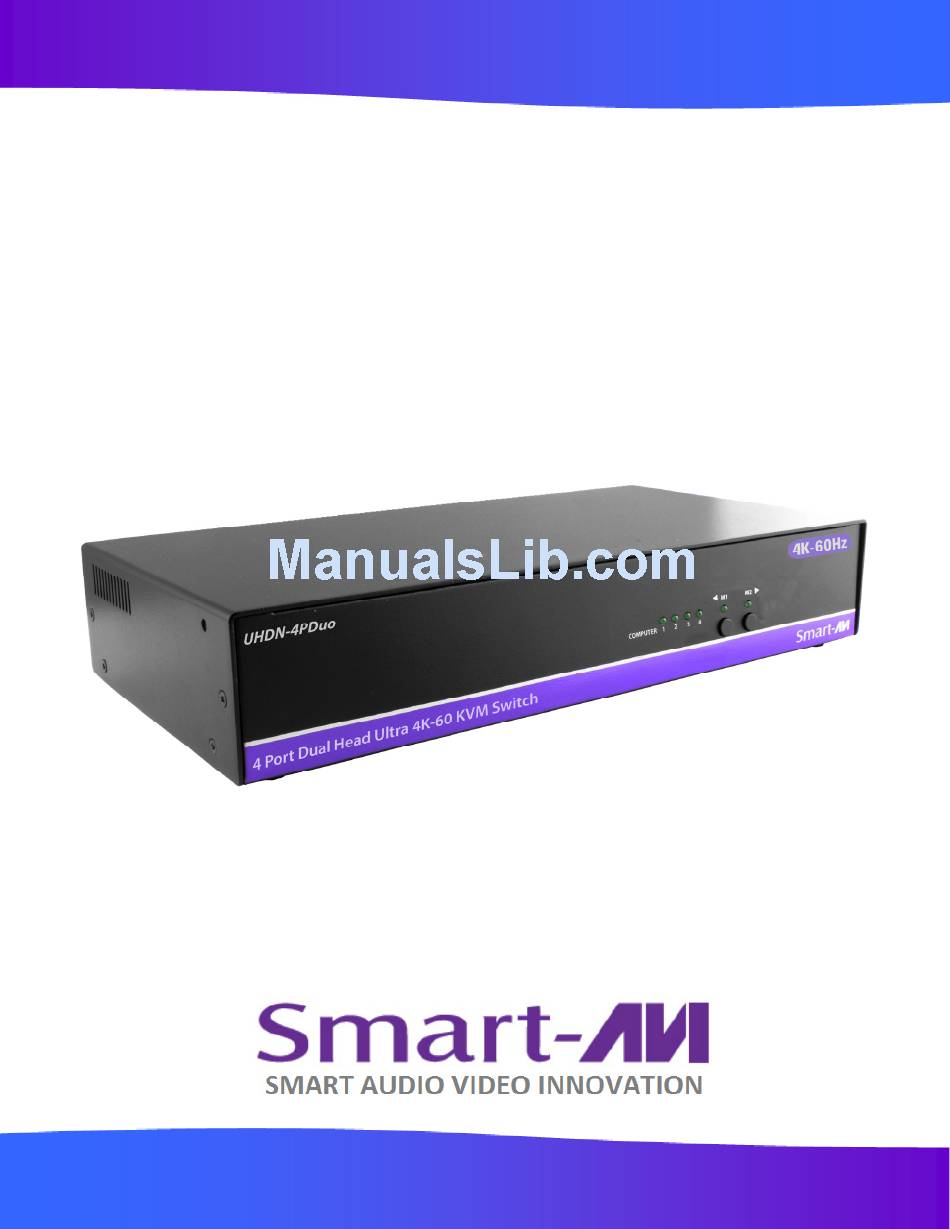

- Page 1 UHDN‐4P Duo User Manual 4-Port Dual Head Ultra 4K-60Hz HDMI KVM Switch with USB 2.0 and Audio Support Manage 4 computers from a single workstation Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WHAT'S IN THE BOX? INTRODUCTION FEATURES TECHNICAL SPECIFICATIONS HARDWARE INSTALLATION FRONT PANEL CONTROL HOTKEY COMMANDS RS-232 CONTROL LIMITED WARRANTY STATEMENT WHAT’S IN THE BOX? PART NO. DESCRIPTION UHDN-4P-DUO-S 4-Port Dual Head Ultra 4K-60Hz HDMI KVM Switch PS5VDC4A Power Adapter Quick Start Guide... -
Page 3: Introduction
The UHDN-4P Duo is HDCP compliant, supporting screen resolutions up to 4K Ultra-HD (3840x2160 @ 60Hz) with responsive EDID emulation. Additionally, the UHDN-4P Duo is compatible with any USB periph- eral. The UHDN-4P Duo is also easy to control with both a simple front-panel interface, as well as RS-232 or hot-keys. -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS VIDEO Link Rate 5.4 Gbps/lane Input Interface (8) HDMI (female) Version 2.0 Output Interface (2) HDMI (female) Version 2.0 Resolution 480i to 4Kx2K @ 60Hz (YUV420) Input Equalization Automatic Video Bandwidth 300 MHz, 10.2 Gbps HDCP Compliant Input/Output Max Cable Length 20 ft (depending on cable quality) AUDIO Input Interface... -
Page 5: Hardware Installation
2. Connect the HDMI cables and USB cables (male-A to male-B) from the computers to the respective ports on the UHDN-4P Duo. 3. Optionally connect audio cables from the computers to the respective ports on the UHDN-4P Duo. 4. Optionally connect RS-232 for control functions. -
Page 6: Front Panel Control
Figure 6-1 HOTKEY COMMANDS The Hotkey command is a keyboard sequence used to trigger an action on the UHDN-4P Duo through the use of the keyboard connected on the USB port of the UHDN-4P Duo. To activate the hotkey sequence, press the CTRL key twice and then enter the desired hotkey commands. - Page 7 Check the UHDN-4P DUO and your Computer to determine if you need a male to male or a male to female cable and how long it needs to be. The UHDN-4P DUO requires a straight through cable. You can use a Null Modem Adapter to convert a crossed cable to a straight through cable.
-
Page 8: Limited Warranty Statement
LIMITED WARRANTY STATEMENT A. Extent of limited warranty Smart‐AVI Technologies, Inc. warrants to the end‐user customers that the Smart‐AVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. Smart‐AVI limited warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a. Improper or inadequate maintenance or modifications b. Operations outside product specifications c. Mechanical abuse and exposure to severe conditions If Smart‐AVI receives, during applicable warranty period, a notice of defect, Smart‐AVI will at its discretion replace or repair defective product. If Smart‐AVI is unable to replace or repair defective product covered by the Smart‐AVI warranty within reasonable period of time, Smart‐AVI shall refund the cost of the product. Smart‐AVI shall have no obligation to repair, replace or refund unit until customer returns defective product to Smart‐AVI. Any replacement product could be new or like new, provided that it has functionality at least equal to that of the product being replaced. Smart‐AVI limited warranty is valid in any country where the covered product is distributed by Smart‐AVI. B. Limitations of warranty To the extant allowed by local law, neither Smart‐AVI nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied with respect to the Smart‐AVI product, and specifically disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. C. Limitations of liability ... - Page 9 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no war‐ ranty of any kind with regard to this material, including but not limited to, implied warranties of merchant‐ ability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for inci‐ dental or consequential damages in connection with the furnishing, performance or use of this material. No part of this document may be photocopied, reproduced, or translated into another language without prior written consent from SmartAVI Technologies, Inc. 20170120 ...
