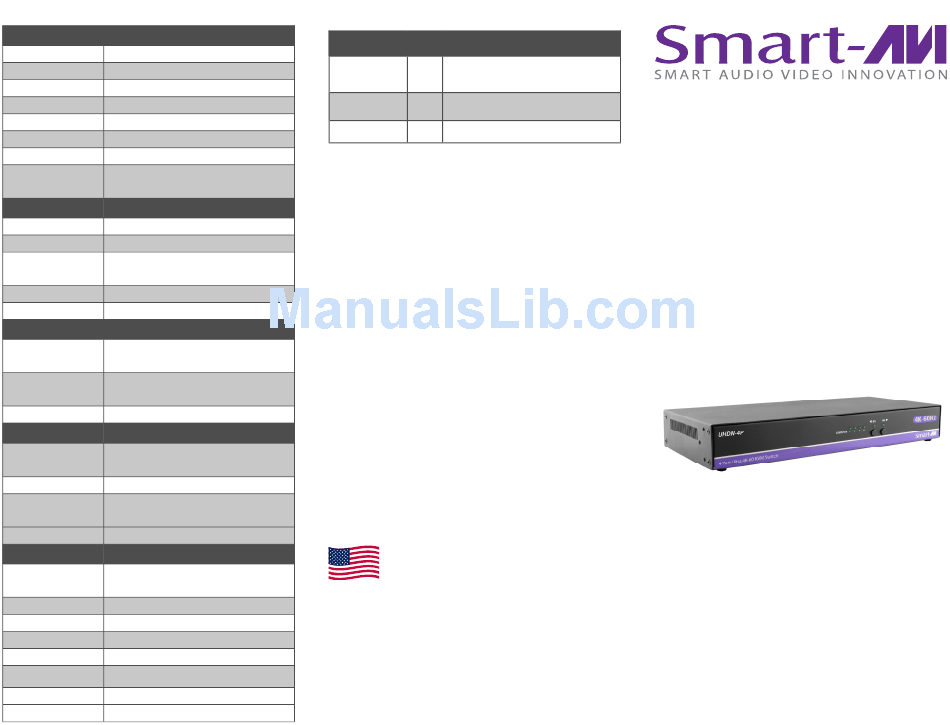

SMART-AVI UHDN-4PS Quick Start Manual

TECHNICAL SPECIFICATIONS
VIDEO
Link Rate 5.4 Gbps/lane
Input Interface (4) HDMI (female) Version 1.4
Output Interface (1) HDMI (female) Version 1.4
Resolution 480i to 4Kx2K @ 60Hz (YUV420)
Input Equalization Automatic
Video Bandwidth 300 MHz, 10.2 Gbps
HDCP Compliant Yes
Input/Output Max
20 ft (depending on cable quality)
Cable Length
AUDIO
Input Interface (4) 3.5mm stereo audio jack
Output Interface (1) 3.5mm stereo audio jack
Frequency Re-
20Hz ~ 20KHz
sponse
Common Mode Rejection @ 60dB
Nominal Level 0.0 to 1.0 V
CONTROL
Buttons (SELECT audio/video
Front Panel
source)
DB9 Female, 9600 bps, N, 8 1, No
RS-232
flow control
Hot Keys Via Keyboard
USB
USB 2.0, 1.1, and 1.0 w/ internal
Signal Type
hub
Input Interface (4) USB Type B (female)
Device Input Inter- (2) USB 1.1 Type A (female) for key-
face board-mouse
(2) USB 2.0 Type A Transparent
OTHER
External 100-240 VAC/ 5VDC4A @
Power
20W
Consumption 20 W (Max)
Dimensions 2" H x 5.75" D x 12.75" W
Weight 3.55 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 23 to 95°F ( -5 to 35°C )
Storage Temp. -4 to 185°F (-20 to 85°C)
Humidity 5 to 90% (No Condensation)
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
UHDN-4PS 1 4-Port Ultra 4K-60Hz KVM
Switch
PS5VD4A 1 Power Adapter
1

Quick Start Guide

Brackets for mounting this device in a standard 19"
rack can be ordered from SmartAVI.
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20170116
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

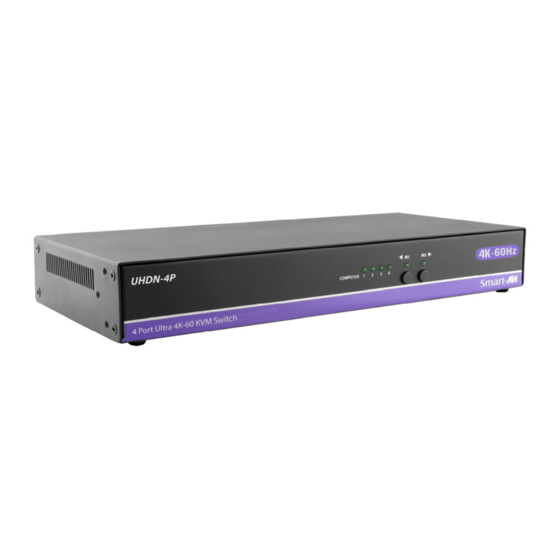

UHDN‐4P
4-Port Ultra 4K-60Hz
KVM Switch
with USB 2.0 and Audio
Quick Start Guide
