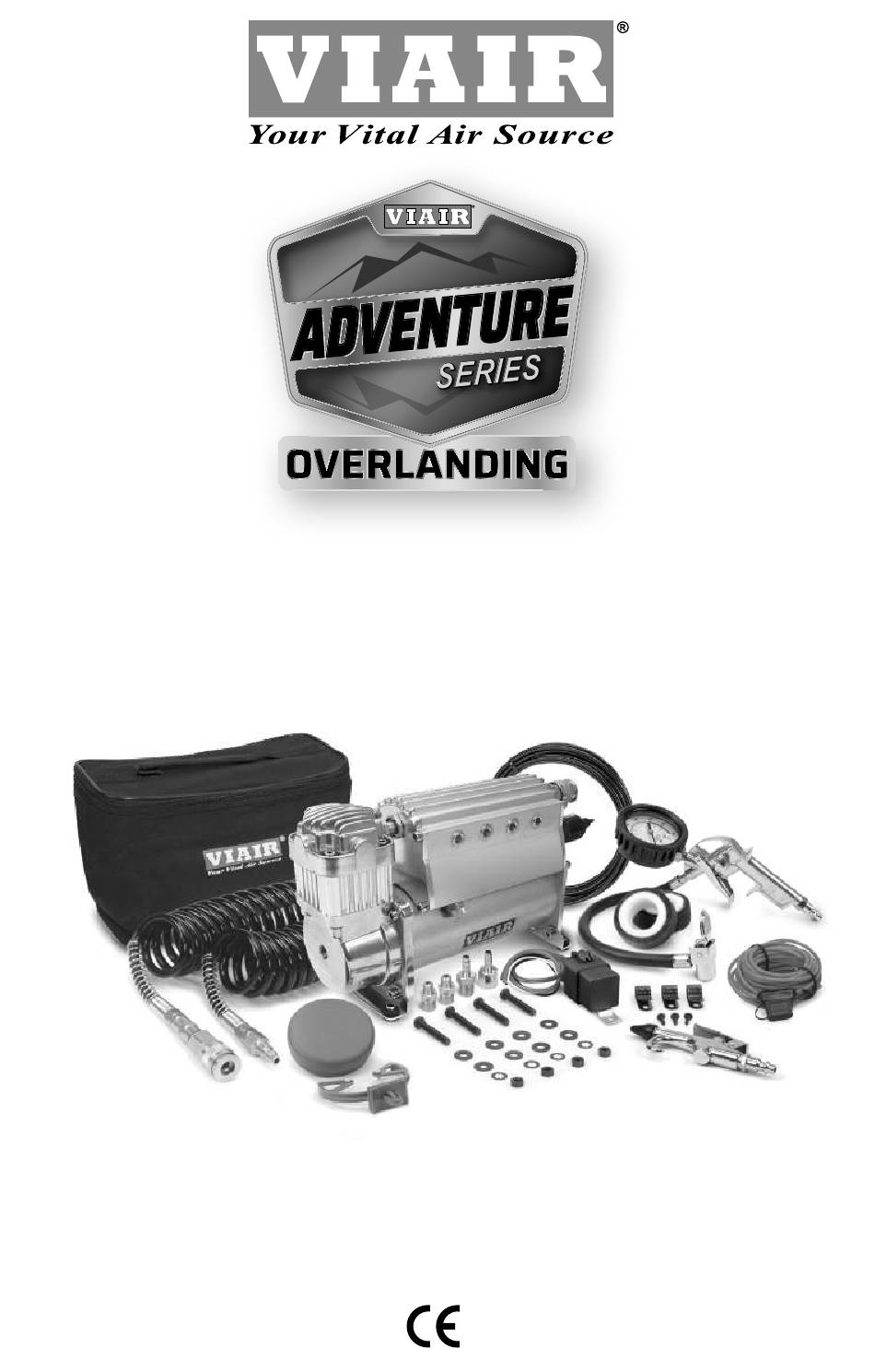

50001 – Escapade Heavy Duty Compact OBA
50003 – Escapade Constant Duty Compact OBA
USER MANUAL
IMPORTANT:
It is essential that you and any other operator of this
product read and understand the contents of this manual
before installing and using this product.
SAVE THIS MANUAL FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50001 and is the answer not in the manual?

Questions and answers

Related Manuals for VIAIR 50001

Summary of Contents for VIAIR 50001

  • Page 1 50001 – Escapade Heavy Duty Compact OBA 50003 – Escapade Constant Duty Compact OBA USER MANUAL IMPORTANT: It is essential that you and any other operator of this product read and understand the contents of this manual before installing and using this product.

  • Page 2: Important Safety Instructions

    ESCAPADE HEAVY DUTY & CONSTANT DUTY COMPACT OBA SYSTEMS IMPORTANT SAFETY INSTRUCTIONS CAUTION - To reduce risk of electrical shock or electrocution: - Do not disassemble. Do not attempt repairs or modifications. Refer to qualified service agencies for all required service and repairs. - Do not use this product around an area where it can fall or be pulled into water or other liquids.

  • Page 3: Mounting And Wiring

    ESCAPADE HEAVY DUTY & CONSTANT DUTY COMPACT OBA SYSTEMS MOUNTING AND WIRING 1. Disconnect ground cable from vehicle's battery. 2. Position the air compressor in the location where it will be mounted. 3. NOTE: For remote inlet air filter installation, refer to instructions included in the Remote Inlet Air Filter Pack.

  • Page 4: Maintenance And Repairs

    6. All repairs should be performed by Manufacturer or Manufacturer's Authorized Service Agencies only. Warranty, please visit: www.VIAIRcorp.com/warranty 7. For complete information regarding VIAIR ® CAUTION: Never touch the air compressor or fittings connected to the air compressor, with bare hands during or immediately after use.

  • Page 5: Specifications

    ESCAPADE HEAVY DUTY & CONSTANT DUTY COMPACT OBA SYSTEMS SPECIFICATIONS • 50001 – Escapade Heavy Duty Compact OBA: 110/145 PSI (CE Certified) Motor Voltage: 12-Volts Max. Current Consumption: 30-Amps Recommended Fuse: 40-Amps Motor Type: Permanent Magnetic Horsepower: Max. Working Pressure: 150 PSI Max.
  • Page 6 The Tire Inflation Gun is equipped with a close ended chuck and will hold pressure back, which could cause the hose to burst. 0-160 PSI Gauge Lever Air Chuck Inflation Trigger Bleeder Valve Quick Connect Stud VIAIR TIRE INFLATION GUN USER MANUAL...

  • Page 7: Troubleshooting Guide

    ESCAPADE HEAVY DUTY & CONSTANT DUTY COMPACT OBA SYSTEMS TROUBLESHOOTING GUIDE: PROBLEM: POSSIBLE CAUSE(S) CORRECTIVE ACTION Tank pressure drops when 1. Loose drain cock 1. Tighten drain cock compressor(s) shut off 2. Check valve leaking 2. Replace check valve or 3.

  • Page 8: Limited Warranty

    Corporation and no ownership rights are hereby transferred. No part of the Manual shall be used, reproduced, translated, converted, adapted, stored in a retrieval system, communicated or transmitted by any means, for any commercial ® purpose, including without limitation, sale, resale, license, rental or lease, without the prior express written consent of VIAIR ® VIAIR does not make any representations, warranties or guarantees, express or implied, as to the accuracy or completeness of the Manual.
