Slaughter 6330 Quick Start Manual

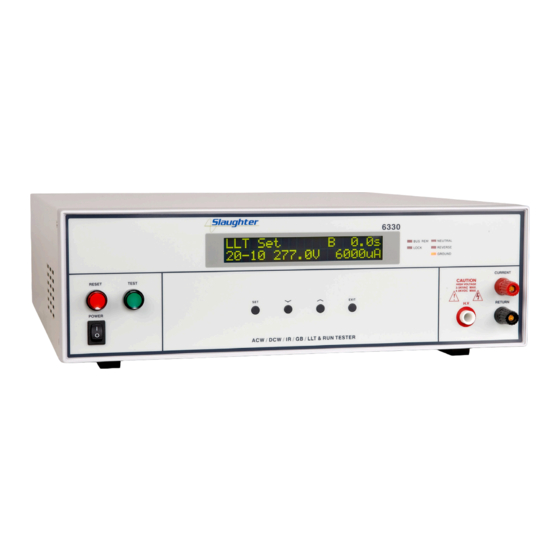

6-in-1 multi-function electrical safety tester
Hide thumbs Also See for 6330:
Table of Contents

Advertisement

Quick Links

Download this manual
SAFETY CHECKLIST
KEEP unqualified/unauthorized personnel away from the test area
ARRANGE test stations in a safe and orderly manner
NEVER touch products or connections during a test
STOP the test first in the event of a problem
NEVER perform a Ground Bond test on energized circuitry or equipment
BE SURE to always connect the return test lead first
HANDLE test clips by insulation only, never touch clips directly
WARNING:
THIS GUIDE WAS CREATED FOR OPERATORS HAVING SOME FAMILIARITY WITH
ELECTRICAL SAFETY TESTING. AN ELECTRICAL SAFETY TESTER PRODUCES VOLTAGES AND CURRENTS THAT
CAN CAUSE HARMFUL OR FATAL ELECTRIC SHOCK. TO PREVENT ACCIDENTAL INJURY OR DEATH, THESE
SAFETY PROCEDURES MUST BE STRICTLY OBSERVED WHEN HANDLING AND USING A TEST INSTRUMENT.
Safety Made Simple
6-in-1 Multi-Function
Electrical Safety Tester
6330
Quick Start Guide
For Model: 6330

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6330 and is the answer not in the manual?

Questions and answers

Related Manuals for Slaughter 6330

Summary of Contents for Slaughter 6330

  • Page 1 ELECTRICAL SAFETY TESTING. AN ELECTRICAL SAFETY TESTER PRODUCES VOLTAGES AND CURRENTS THAT CAN CAUSE HARMFUL OR FATAL ELECTRIC SHOCK. TO PREVENT ACCIDENTAL INJURY OR DEATH, THESE SAFETY PROCEDURES MUST BE STRICTLY OBSERVED WHEN HANDLING AND USING A TEST INSTRUMENT. For Model: 6330...

  • Page 2: Front Panel Controls

    Front Panel Controls (6330 Front Panel) RESET BUTTON: Red momentary contact switch used to reset the instrument in case of a failure. Also serves as an abort signal to stop any test in progress. TEST BUTTON: Starts a test. LCD DISPLAY: 20 x 2 character display.

  • Page 3: Back Panel Controls

    Functional Run and Line Leakage testing. Only a U.S. style single phase unbalanced power source may be used. DUT POWER OUTPUT: Provides the line and neutral connections from the 6330 to the DUT during Functional Run and Line Leakage testing. Provides the high voltage connections to the DUT during ACW, DCW and IR testing if the DUT OUTPUT and DUT-HV parameters are turned ON.

  • Page 4: Setting Up The Instrument

    To Grounded Power Source 3. Turn the instrument power switch ON. Upon power up, you will see the Slaughter Company name, Model Number, and current software version briefly appear on the LCD display and then you will see the default test parameters as follows:...

  • Page 5: Selecting A Memory Location

    Selecting A Memory Location If you wish to change the default test settings, you will need to begin by choosing a memory location first. There are 20 memory locations each of which contains 10 steps. The steps can be connected sequentially to form a multi-step test routine. Only one electrical safety test type can be selected for each step.
  • Page 6 Editing Test Parameters Default test type parameters are shown below. DC Hipot Mode Insulation Resistance AC Hipot Mode • Voltage: 1.50 kV • Voltage: 500 V • Voltage: 1.24 kV • HI-Limit: 5.00 mA • HI-Limit: 0 mΩ • HI-Limit: 10.00 mA •...

  • Page 7: Test Connections

    The adapter box will now provide power to the DUT during Functional Run and Line Leakage testing. DUT Power Input Connections Remove the cover plate on the rear panel of the 6330 to access the DUT Power Input Connections. These terminals provide the connections from an external power source to the 6330.

  • Page 8: Test Results

    To stop the alarm press the red RESET button. Scan the QR code to get further Safety Made Simple support or visit www.hipot.com www.hipot.com Toll Free (800) 504-0055 or (847) 932-3662 © 2013 Slaughter Company, Inc. 6330-3/13...
