Slaughter 1305 Operation And Service Manual

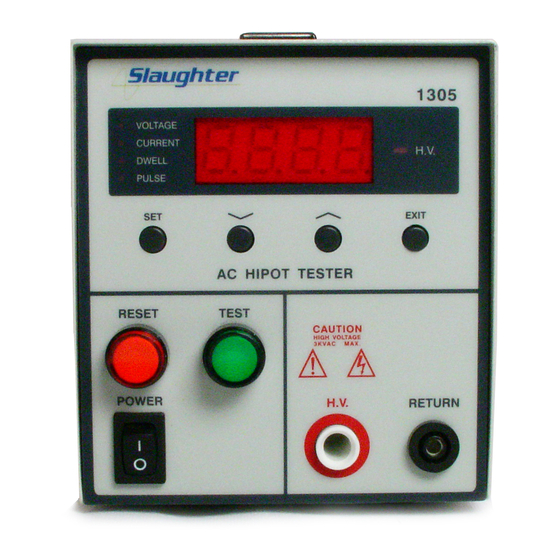

Ac hipot tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

MODEL 2503 (DC ONLY HIPOT WITH OPTIONAL GROUND CONTINUITY CHECK)
MODEL 2510 (AC ONLY HIPOT WITH OPTIONAL GROUND CONTINUITY CHECK)
MODEL 2550 (AC/DC HIPOT WITH OPTIONAL GROUND CONTINUITY CHECK)
Models
1305/2503
2510/2550
Item 99-10136-01
OPERATION AND SERVICE MANUAL
Model 1305, 2503, 2510, 2550
MODEL 1305 (AC ONLY HIPOT)
SERIAL NUMBER
Ver 1.07
© Slaughter Company, Inc., 2007
28105 N. Keith Drive
Lake Forest, Illinois, 60045-4546
U.S.A.
Printed October 29, 2007
