4 TECHNICAL DATA

Power supply
9.0 V - 30 V via connector X1; 4.3 V - 5.5 V via micro USB
Current consumption
Operating: typ. 160 mA @12 V; Idle: typ. 50 mA @12 V; Peak typ. 250 mA @12 V
Antennas

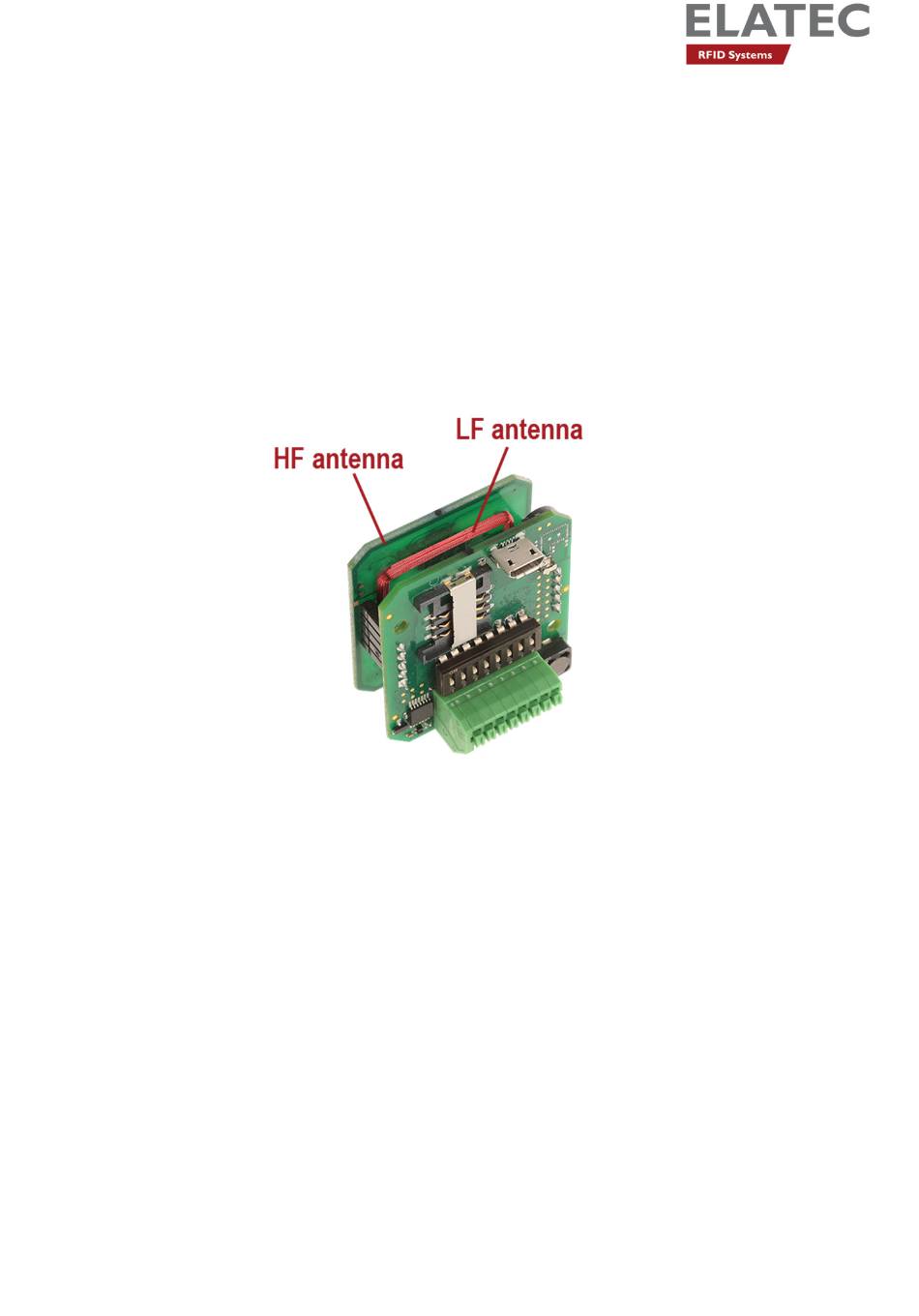

The reader module is equipped with the following antennas:
TWN4 Palon Compact M Light
HF antenna (13.56 MHz)
Dimensions: 39 x 42.5 mm / 1.54 x 1,67 inch
Number of turns: 3
LF antenna (125 kHz)
Dimensions: 27 x 27.5 mm / 1.06 x 1.08 inch
Number of turns: 179
For more information, refer to the related product data sheet or other technical documents.
