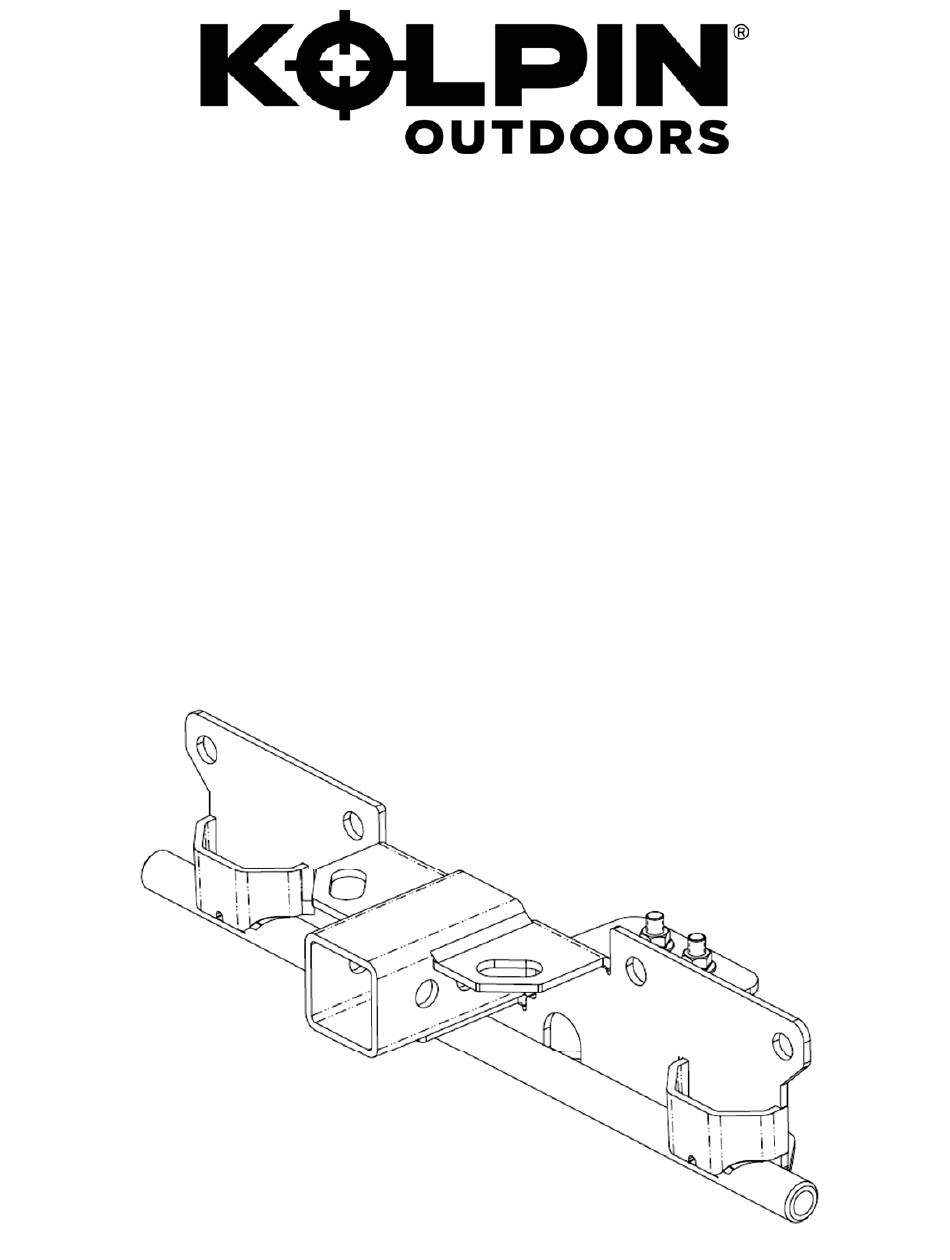

FRONT-CONNECT PLOW
MOUNT KIT
FOR ARCTIC CAT TEXTRON PROWLER PRO
P/N 35-8000
ASSEMBLY / INSTALLATION MANUAL
Application
FRONT-CONNECT PLOW PUSH FRAME NO. 35-0070
Before you begin, please read these instructions and check to be sure all parts and tools are accounted for.
The following instructions contain details required to install and service the contents of this kit.
© 2021 Kolpin Outdoors Inc.
REV 00
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors FRONT-CONNECT PLOW MOUNT KIT
Summary of Contents for Kolpin Outdoors FRONT-CONNECT PLOW MOUNT KIT
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 2 To increase traction during plow operation, operators can try: Securing weight to the ATV / UTV for additional tire downforce, • reducing tire air pressure, or installing tire chains. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 3 See www.Kolpin.com for products to complete your plow system. TOOLS REQUIRED Safety Glasses • Socket Set, Metric • Socket Set, Torx bit • Torque Wrench • Wrench Set, Metric • © 2021 Kolpin Outdoors Inc. REV 00...
- Page 4 KIT CONTENTS Item Qty Part Description Part Number Prowler Mounting Bracket Hex Flange Bolt, Zinc Plated, M10-1.5 x 25mm LG Hex Flange Locknut, Zinc Plated, M10-1.5 Instruction Guide (not shown) © 2021 Kolpin Outdoors Inc. REV 00...
- Page 5 M10 locknuts (item #3) as shown. (See illustrations 1-3, 1-4 and 1-5). Note, do not tighten hardware at this time. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 6 Maximum Tow Weight: 1200 lbs (540 Kg) OE Tow hooks install in same location as the long bolts with spacers OE Tow hooks install in same location as the long bolts with Ill. 1-7 spacers Ill. 1-6 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 7 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2021 Kolpin Outdoors Inc. REV 00...
