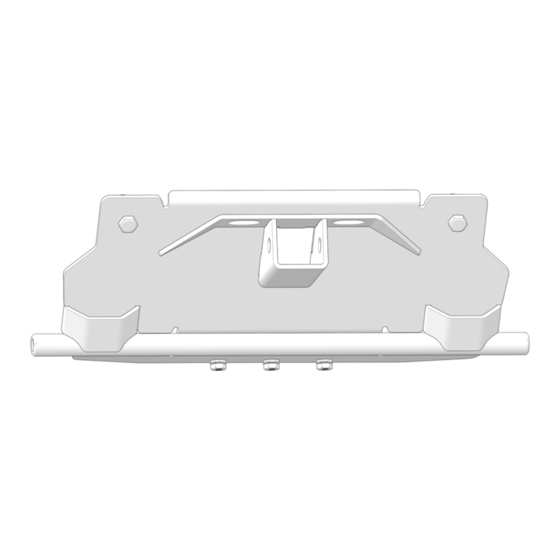

- Page 1 PLOW MOUNTING BRACKET KIT P/N 35-3010 PLOW MOUNTING BRACKET Assembly / Owner’s Manual APPLICATION: Ranger 500; 570; 570 Crew; EV Verify accessory fitment at Kolpin.com Instr K100339 Rev 01 2021-03 Page 1 of 6...
- Page 2 INTRO Thank you for purchasing Kolpin ® engineered products. With proper installation, usage, care, and maintenance, your Kolpin ® product will last for years to come. BEFORE YOU BEGIN • Read and understand the entire installation manual, including all installation instructions, operating instructions, safety warnings and guidelines before installing or operating your accessory.
- Page 3 WARNING To avoid serious injury or death: • Do not exceed 5 mph (8 km/h) with blade installed. • Operate with extreme caution on slopes, steep grades, and rough terrain. • Allow no riders on blade or ATV / UTV while moving or stationary. •...
- Page 4 PART DESCRIPTION PART NUMBER Plow Mount Screw – Hex Head, M12 x 1.75 x 45 mm 7518575 Screw – Hex Head, M10 x 1.5 x 35 mm Washer – M10 mm Bracket Nut – Hex Flange, M12 x 1.75 mm 7547327 Washer –...
- Page 5 RECEIVER OPERATION WARNING Do not exceed maximum capacities. Exceeding maximum capacities may result in receiver failure, resulting in death, serious personal injury, or serious damage to vehicle or property. Maximum Tongue Weight: 100 lb (45 kg) Maximum Tow Weight: 1200 lb (540 kg) Instr K100339 Rev 01 2021-03 Page 5 of 6...
- Page 6 Peripheral products such as engines, electric motors, and actuators may carry an original manufacturer’s warranty. Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.Kolpin.com...
