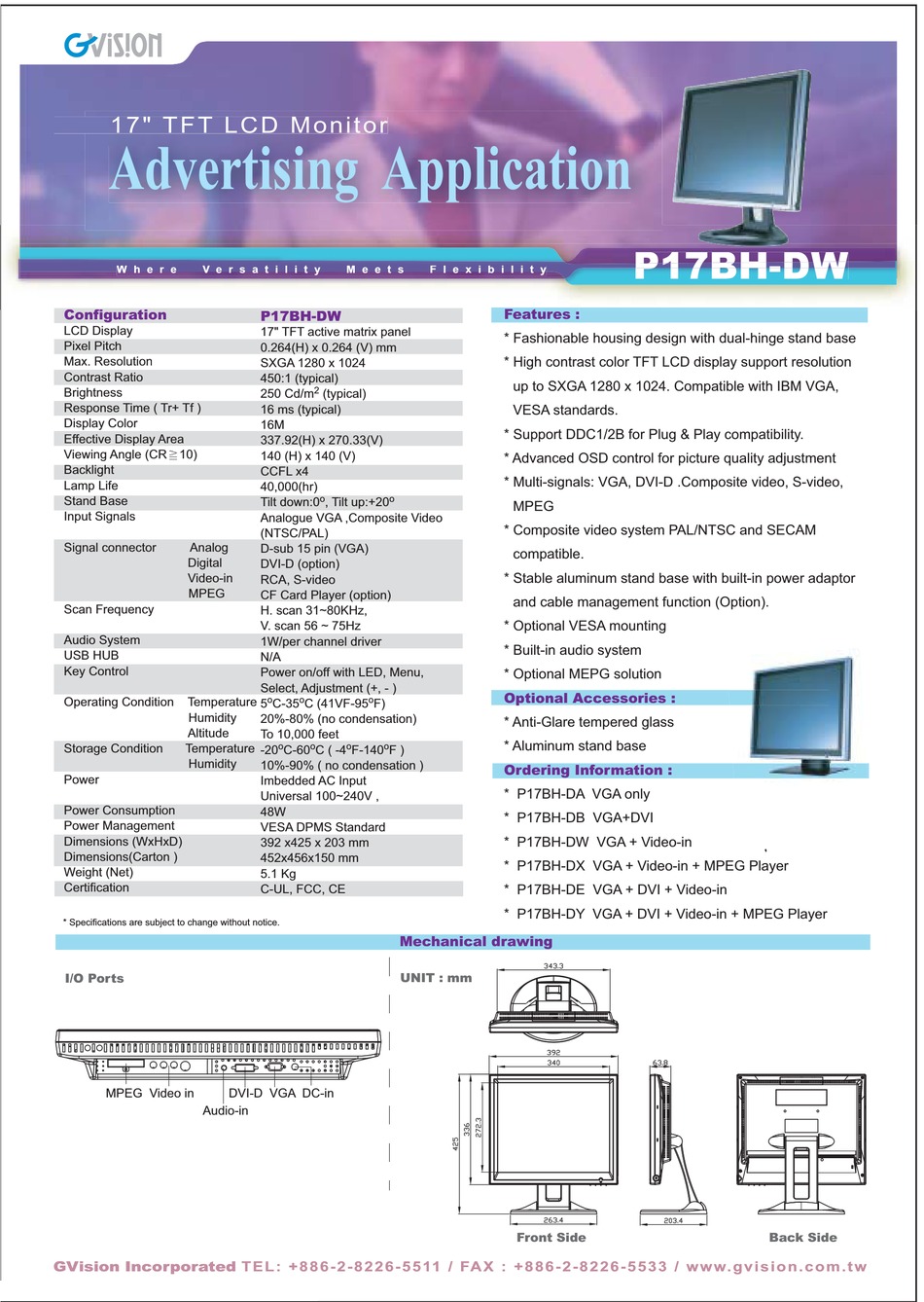

GVision P17BH-D Specifications

1 7 " T F T L C D M o n i t o r
Advertising Application
W h e r e W h e r e V e r s a t i l i t y V e r s a t i l i t y
Configuration C fi ti
LCD Display
Pixel Pitch
Max. Resolution
Contrast Ratio
Brightness
Response Time ( Tr+ Tf )
Display Color
Effective Display Area
Viewing Angle (CR 10)
Backlight
Lamp Life
Stand Base
Input Signals
Signal connector Analog
Digital
Video-in
MPEG
Scan Frequency
Audio System
USB HUB
Key Control
Operating Condition Temperature
Humidity
Altitude
Storage Condition Temperature
Humidity
Power
Power Consumption
Power Management
Dimensions (WxHxD)
Dimensions(Carton )
Weight (Net)
Certification
* Specifications are subject to change without notice.
I/O Ports
MPEG Video in
Audio-in
GVision Incorporated T E L : + 8 8 6 - 2 - 8 2 2 6 - 5 5 11 / FA X : + 8 8 6 - 2 - 8 2 2 6 - 5 5 3 3 / w w w. g v i s i o n . c o m . t w GVision Incorporated T E L : + 8 8 6 - 2 - 8 2 2 6 - 5 5 11 / FA X : + 8 8 6 - 2 - 8 2 2 6 - 5 5 3 3 / w w w. g v i s i o n . c o m . t w
M e e t s M e e t s
17" TFT active matrix panel
0.264(H) x 0.264 (V) mm ( ) ( )
SXGA 1280 x 1024
450:1 (typical)
2
250 Cd/m (typical)
16 ms (typical)
16M
337.92(H) x 270.33(V)
140 (H) x 140 (V)
CCFL x4
40,000(hr)
o o
Tilt down:0 , Tilt up:+20
Analogue VGA ,Composite Video
(NTSC/PAL)
D-sub 15 pin (VGA)
DVI-D (option)
RCA, S-video
CF Card Player (option)
H. scan 31~80KHz,
V. scan 56 ~ 75Hz
1W/per channel driver
N/A
Power on/off with LED, Menu,
Select, Adjustment (+, - )
o o o
5 C-35 C (41VF-95 F)
20%-80% (no condensation)
To 10,000 feet
o o o o
-20 C-60 C ( -4 F-140 F )
10%-90% ( no condensation )
Imbedded AC Input
Universal 100~240V ,
48W
VESA DPMS Standard
392 x425 x 203 mm
452x456x150 mm
5.1 Kg
C-UL, FCC, CE
Mechanical drawing
UNIT : mm
DVI-D VGA DC-in
F l e x i b i l i t y F l e x i b i l i t y
F Features : t
* Fashionable housing design with dual-hinge stand base
* High contrast color TFT LCD display support resolution
up to SXGA 1280 x 1024. Compatible with IBM VGA,
VESA standards.
* Support DDC1/2B for Plug & Play compatibility.
* Advanced OSD control for picture quality adjustment
* Multi-signals: VGA, DVI-D .Composite video, S-video,
MPEG
* Composite video system PAL/NTSC and SECAM
compatible.
* Stable aluminum stand base with built-in power adaptor
and cable management function (Option).
* Optional VESA mounting
* Built-in audio system
* Optional MEPG solution
Optional Accessories :
* Anti-Glare tempered glass
* Aluminum stand base
Ordering Information :
* P17BH-DA VGA only
* P17BH-DB VGA+DVI
* P17BH-DW VGA + Video-in
* P17BH-DX VGA + Video-in + MPEG Player
* P17BH-DE VGA + DVI + Video-in
* P17BH-DY VGA + DVI + Video-in + MPEG Player
Front Side
P17BH DW P17BH-DW P17BH-DW
Back Side
