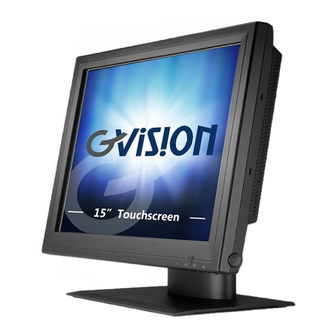

GVision P15BX-A Specifications

1 5 " T F T L C D M o n i t o r 1 5 " T F T L C D M o n i t o r
POS Application
W h e r e W h e r e V e r s a t i l i t y V e r s a t i l i t y

Configuration

LCD Display
Pixel Pitch
Max. Resolution
Contrast Ratio
Brightness
Response Time ( Tr+ Tf )
Display Color
Effective Display Area
Viewing Angle (CR 10)
Backlight
Lamp Life
Stand Base
Input Signals
Signal connector Analog
Digital
Scan Frequency
Audio Systems
USB HUB
Touch Panel
Key Control
Operating Condition Temperature
Humidity
Altitude
Storage Condition Temperature
Humidity
Power Adaptor
Power Consumption
Power Management
Dimensions(WxHxD)
Carton Dimensions
Weight (Net)
Certification
* Specifications are subject to change without notice.
90
o
-5
o
30
Support Angle Asjstment -50
GVision Incorporated T E L : + 8 8 6 - 2 - 8 2 2 6 - 5 5 11 / FA X : + 8 8 6 - 2 - 8 2 2 6 - 5 5 3 3 / w w w. g v i s i o n . c o m . t w GVision Incorporated T E L : + 8 8 6 - 2 - 8 2 2 6 - 5 5 11 / FA X : + 8 8 6 - 2 - 8 2 2 6 - 5 5 3 3 / w w w. g v i s i o n . c o m . t w
M e e t s M e e t s
P15BX-AA
15" TFT active matrix panel
0.297(H) x 0.297 (V) mm
XGA 1024 x 768
400:1 (typical)
2
250 Cd/m (typical)
25 ms (typical)
16M
304.1(H) x 228.1(V)
120 (H) x 100 (V)
CCFL x 2
40,000(hr)
o
Tilt down: -5 , Tilt up: +90
Analogue VGA
D-sub 15 pin (VGA)
DVI-D (option)
H. scan 31~60KHz,
V. scan 60~75Hz
1W/per channel driver (option)
A type x 2, B type x 1 (option)
Resistive/Capacitive - RS232
or USB A type (option)
Power on/off with LED, Menu,
Select, Adjustment (+, - )
o o o o
5 C-35 C (41 F-95 F)
20%-80% (no condensation)
To 10,000 feet
o o o o
-20 C-60 C ( -4 F-140 F )
10%-90% ( no condensation )
Univesal power adaptor
input AC 100~240V, 50~60Hz:
Output DC12V /4A
48W
VESA DPMS standard
351 x 311.5 x 140 mm
440 x 458 x 216 mm
4.5kg
C-UL, FCC, CE
Mechanical drawing
UNOT : mm
o
0 0
~+90
F l e x i b i l i t y F l e x i b i l i t y

Features :

* Fashionable housing design with slim bezel.
* High contrast color TFT LCD open frame display support
resolution up to XGA 1024x768. Compatible with IBM
VGA, VESA standards.
* Support DDC1/2B for Plug & Play compatibility.
* Advanced OSD control for picture quality adjustment.
* Stable aluminum stand base supports angle
adjustment -5
* Optional USB hub with 2 downstream ports and 1
upstream port.
o
* Optional touch solutions.
* Optional built-in power.adaptor and cable management.
* Optional VESA mounting.
* Hot key for AUTO adjustment.

Optional Accessories :

* 3M 5 Wire resistive touch panel
* 3M Capacitive touch panel
* ELO 5 Wire resistive touch panel
* Anti-Glare tempered glass.
* USB HUB
* Speakers
* Customized touch solutions acceptable.

Ordering Information :

* PA15X-AA
* PA15X-AB
I/O Ports
Touch USB HUB
Front Side
P15BX AA P15BX AA P15BX AA
0 0
~ +90
VGA only
VGA + DVI
Audio in DVI-D VGA
Back Side
DC in
